2. Introduction
8
3. Configuration

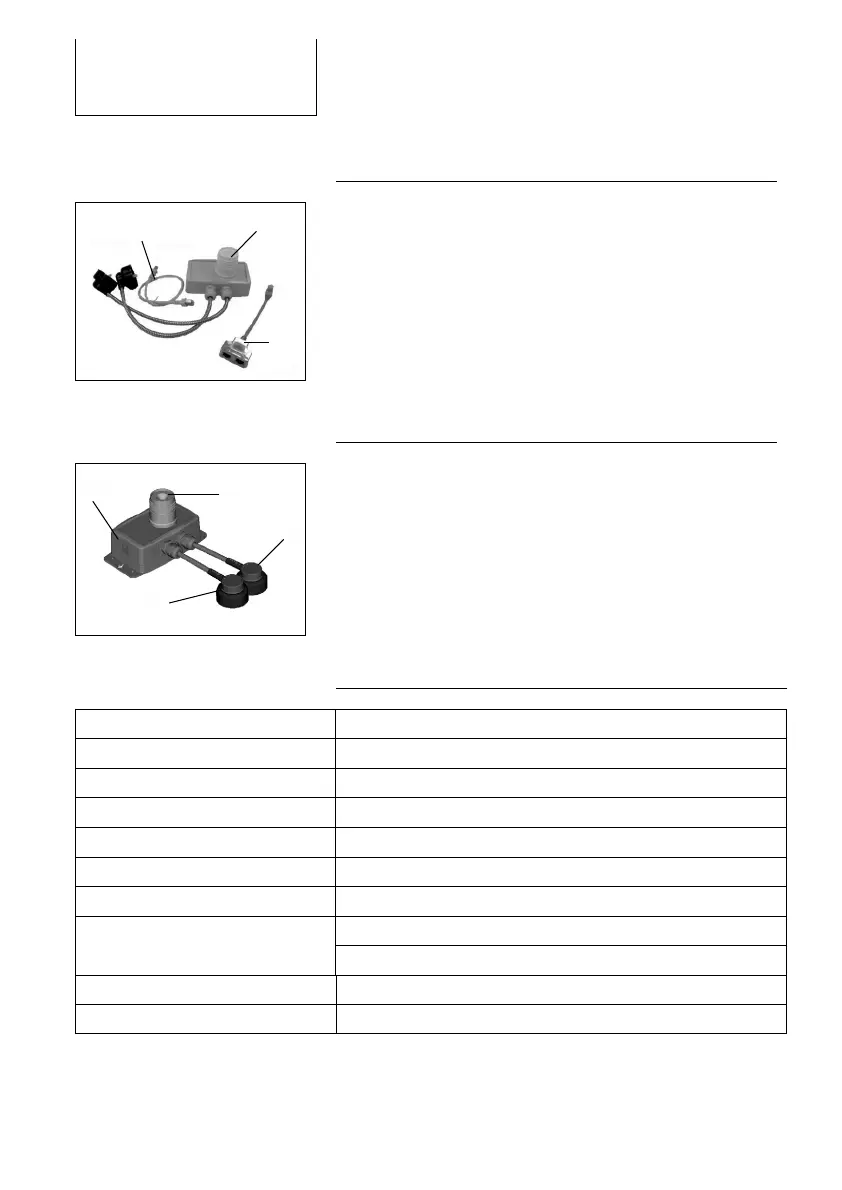

3.1 Standard Equipment
S
Standard Equipment:
1 DuoCartSwitch DCS1
2 Port-Doppler
3 Data line, Length 50.0 cm / 19.7 in, Cat5
4 User Manual
3.2 Overview
1 Data Interface (Connection for Port-Doppler)
2 Connector for EFOY Pro fuel cell
3 DuoCartSwitch connector #1
4 DuoCartSwitch connector #2
3.3 Specifications DuoCartSwitch
Dimensions (L x W x H) : 174.0 x 119.0 x 96.0 mm / 6.9 x 4.7 x 3.8 in
Weight 0.7 kg / 24.7 oz
Operating temperature: -20 °C to +45 °C / -4 °F to +113 °F
Quiescent current draw 7.5 mA
Max. leakage rate 280 mg per hour
Compatible fuel cells EFOY Pro Series
Firmware Version 9.17 / 11.04 / 17.06 / 19.12 / 21.02 and higher
Compatible fuel cartridges M5, M10, MT60
M28 (with M28 adapter)
Nominal Voltage 12 V / 24 V DC
Switch signal GPO (General Purpose Output) at RJ45-plug (PIN1) of EFOY Pro
Installation
1
2
3
4
1
2
3
