PV ATTACHMENT
Install PV modules
using the end clamps
and mid clamps along
with the grounding
clips to secure them to
the mounting rails.

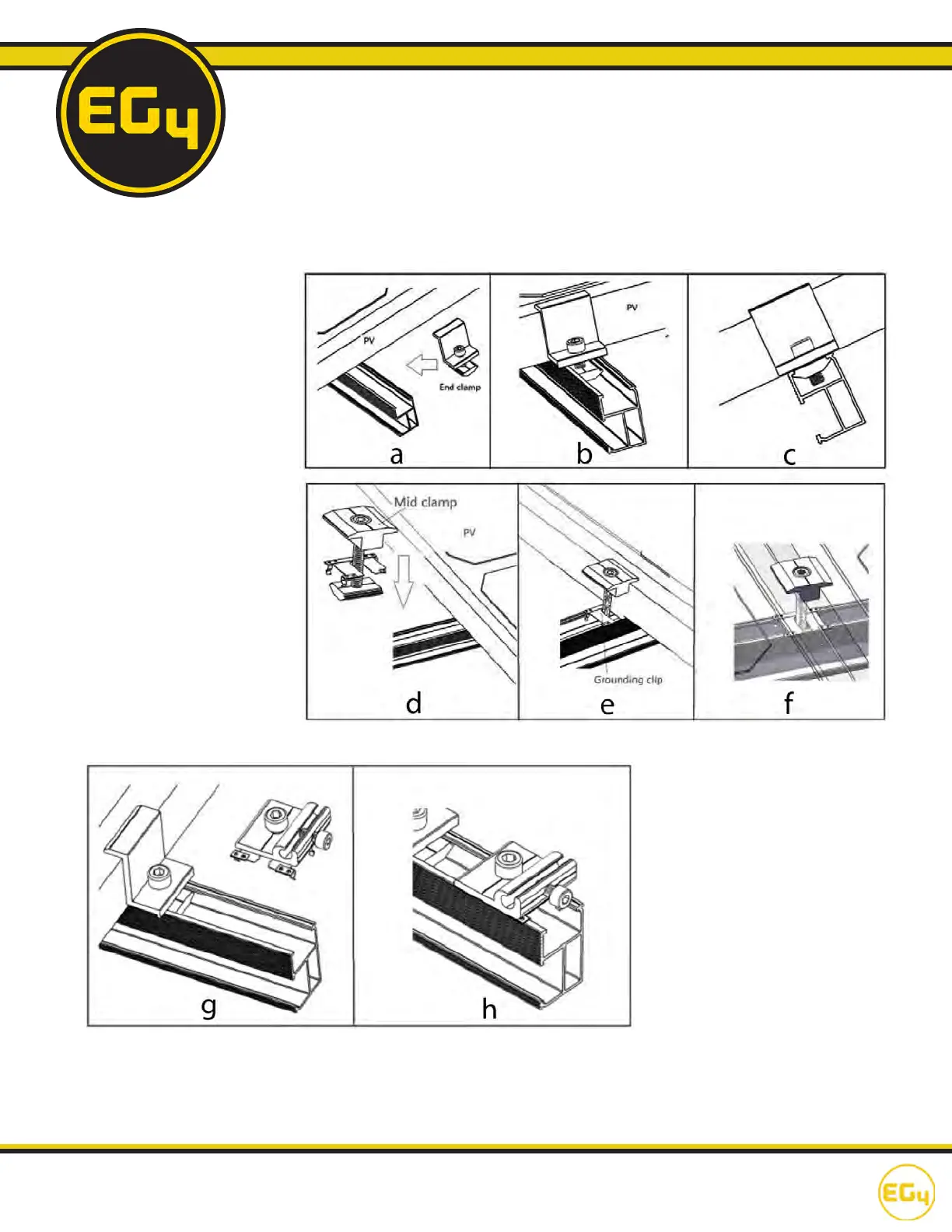

Follow the steps
illustrated to the right
for proper installation.
Install grounding lugs on
the end of the rails to
attach a grounding wire
for proper array
protection.
