BRUSH CUTTER ATTACHMENT — BCA1220/BCA1220-FC22
CONNECTING THE BRUSH CUTTER ATTACHMENT TO THE POWER HEAD
This brush cutter attachment is designed only to be used with EGO Power Head
PH1400/PH1400-FC/PH1420/PH1420-FC.
WARNING:
Never install, remove, attach or adjust any attachment while the
power head is running or with the battery installed. Failure to stop the motor and
remove the battery may cause serious personal injury. The brush cutter attachment
connects to the power head by means of a coupler device.
1. Stop the motor and remove the battery pack.
2. Loosen the wing knob on the power-head coupler.

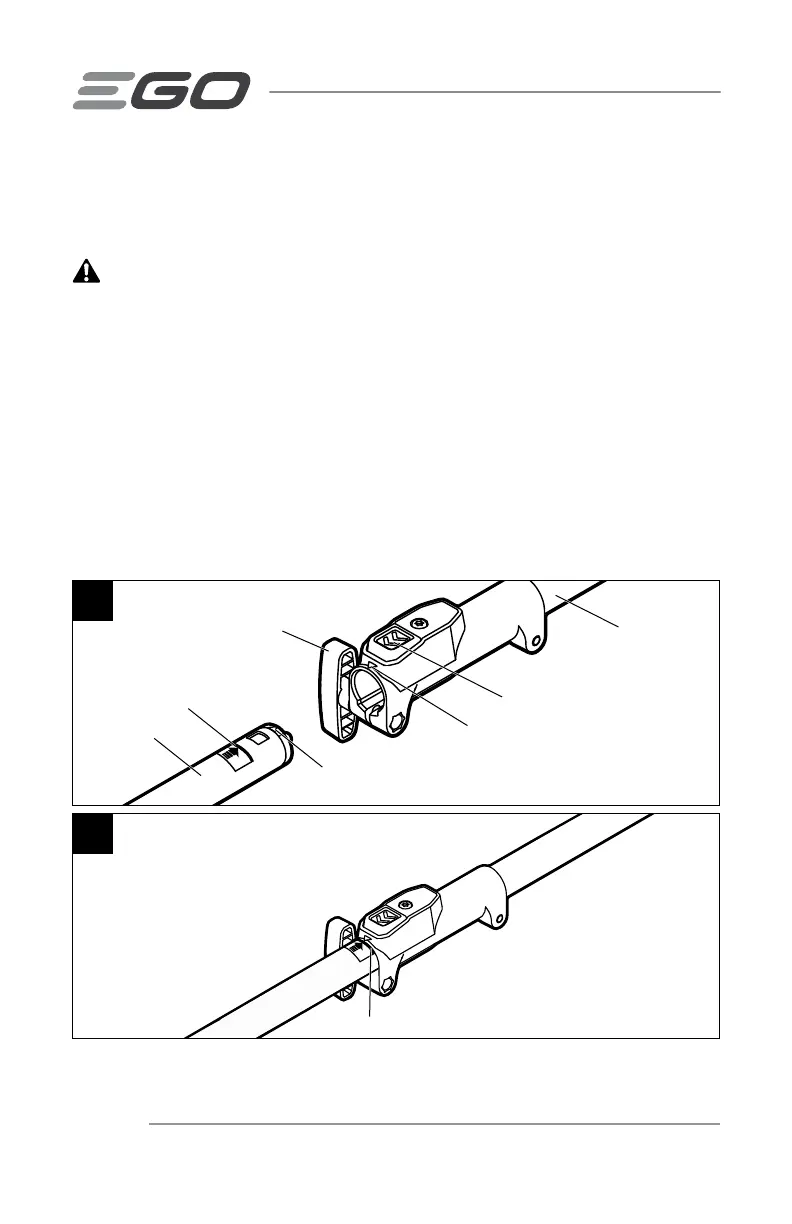

3. Remove the end cap from the attachment. Align the arrow on the attachment
shaft with the arrow on the coupler (Fig. 10a) and push the attachment shaft into
the coupler until you hear a clear “click” sound. The coupler should be positioned
all the way to the RED LINE labeled on the shaft for the attachment shaft to be
properly mounted into place (Fig. 10b)
10a
Arrow on the Coupler
Arrow on the Attachment Shaft
Attachment Shaft
Shaft-release Button
Power-head Shaft
Wing Knob
10b
Red Line
Red Line
