EDGER ATTACHMENT — EA0800/EA0800-FC20
REPLACING THE GUIDE WHEEL
1. Stop the motor and remove the
battery pack.
2. Lay the edger on its back so that the
guide wheel is facing upwards.
3. Loosen the depth-adjusting knob in
the direction of the unlocking arrow
marked on the knob and removing
it.
4. Remove the spring washer, plain
washer 1, guide wheel, bushing and
plain washer 2 from the screw pole
(Fig. 14). Check and replace them if
they are worn.
5. Mount the screw pole through the
depth-adjusting guide bar first, and
then mount the plain washer 2,
bushing and new wheel, then mount
the plain washer 1, spring washer and depth-adjusting knob onto the screw pole
in the sequence shown in Fig. 14.
NOTICE: The guide wheel should be mounted with its flat ribs facing inwards (Fig. 15).
6. Lock the depth-adjusting knob in the direction of the locking arrow marked on the
knob.
REPLACING THE DEBRIS FLAP
1. Stop the motor and remove the battery pack.
2. Use the hex wrench provided to loosen the two screws.
3. Remove the screws, fixing board and worn debris flap (Fig.15).
4. Replace with a new debris flap and lock it with the fixing board and the two
screws.

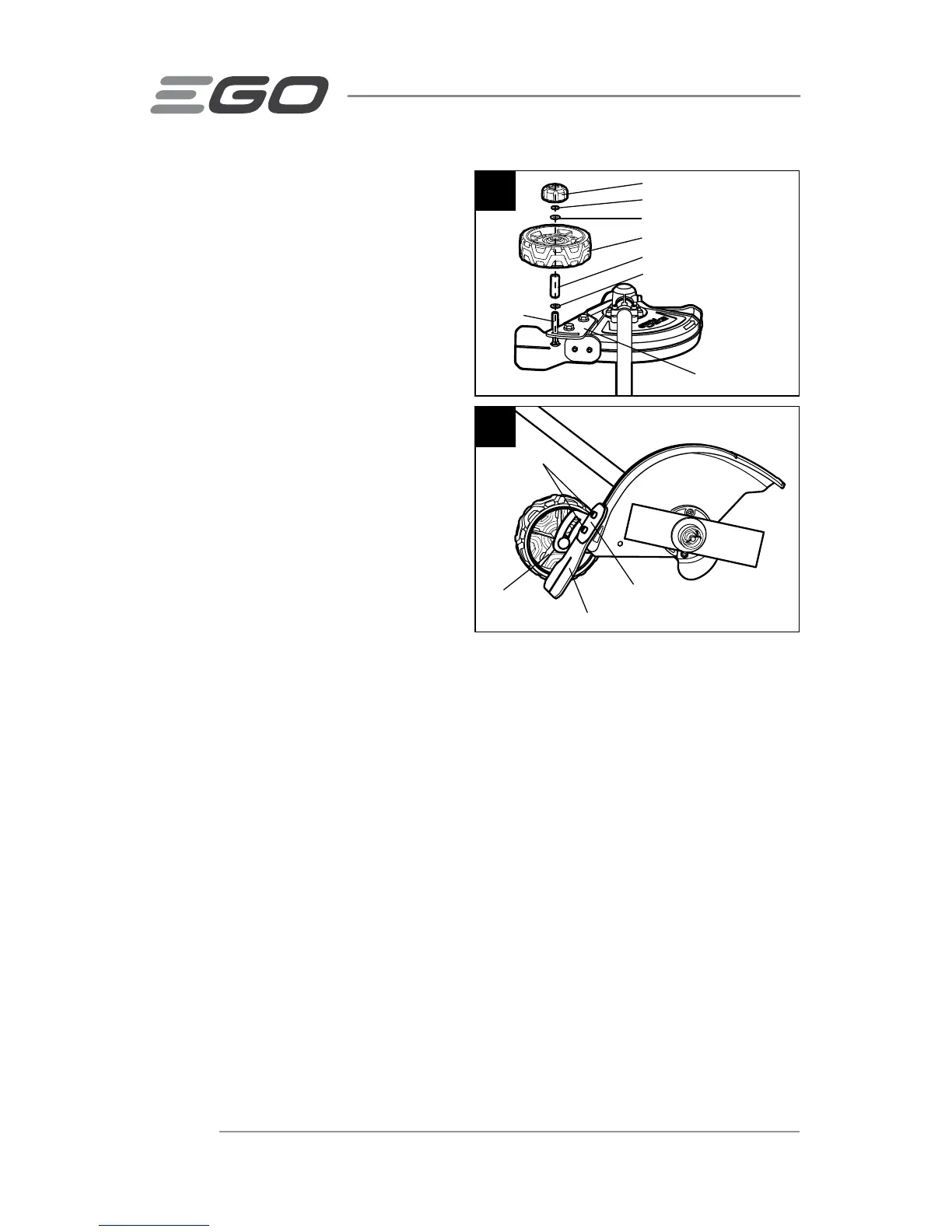

14
Depth-adjusting Knob
Spring Washer
Plain Washer 1
Guide Wheel
Bushing
Plain Washer 2
Depth-adjusting
Guide Bar
Screw Pole
15
Fixing Board
Debris Flap
Flat Rib
Screws
