6. Align the locking pin with the bushing and fix it through the bushing.
7. Adjust the handle to “Grass bag removal position”; fully force the pin into the bushing and let
the pin extend out of the side tube and lock the handle at the position.
Quick Adjust Lever Replacement

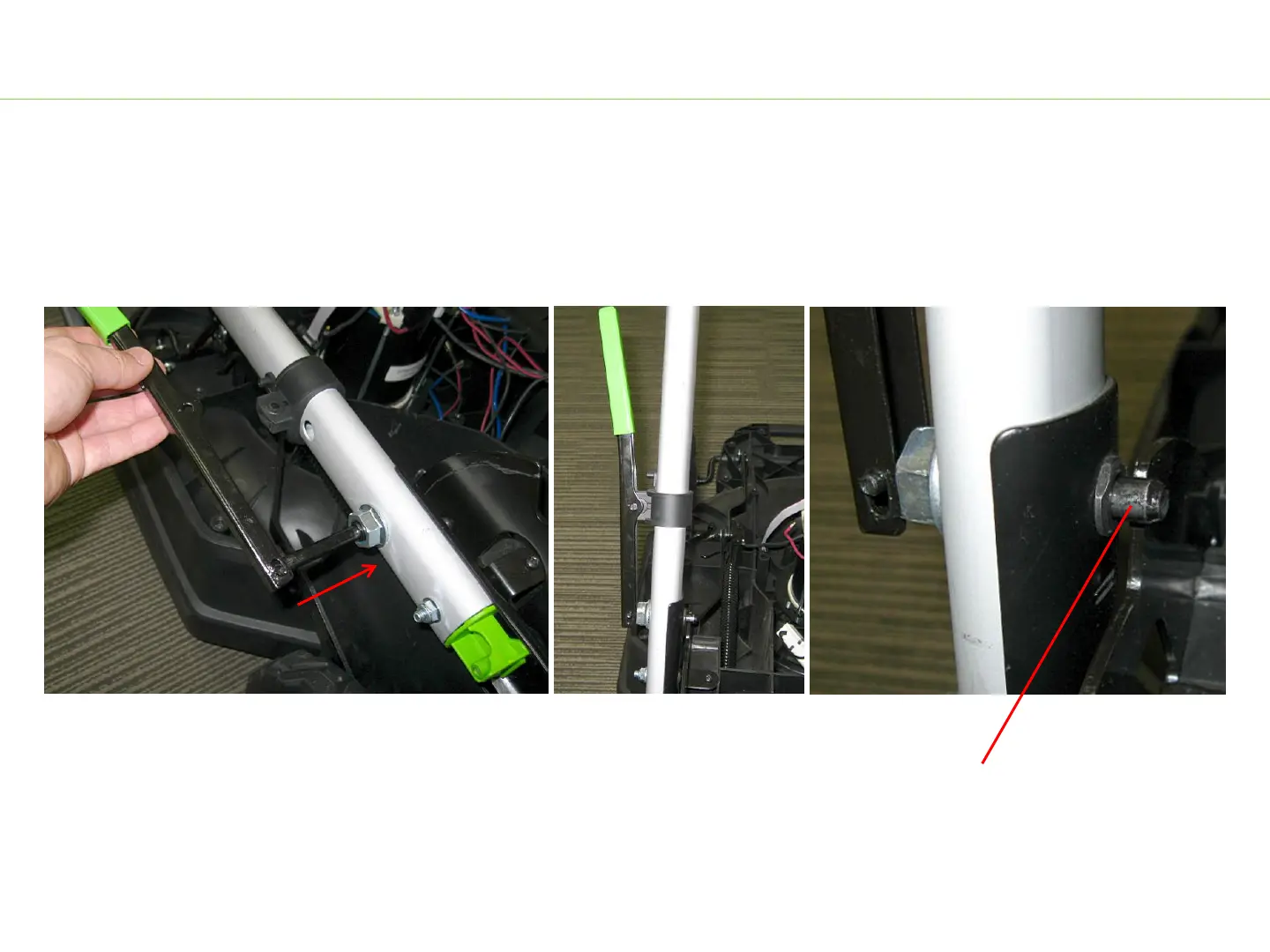

Extend the pin out of the side pole
and lock at the grass bag removal
position
139
