EGO LM2000E Repair Guide Line

PCB Assembly Replacement
PCB
5
1 2
3
4
To the electric
contacts on the
battery compartment
To the main switch
in the handle
To the main switch
in the handle
To the electric
contacts on the
battery
compartment
White
Big Resistor (white)

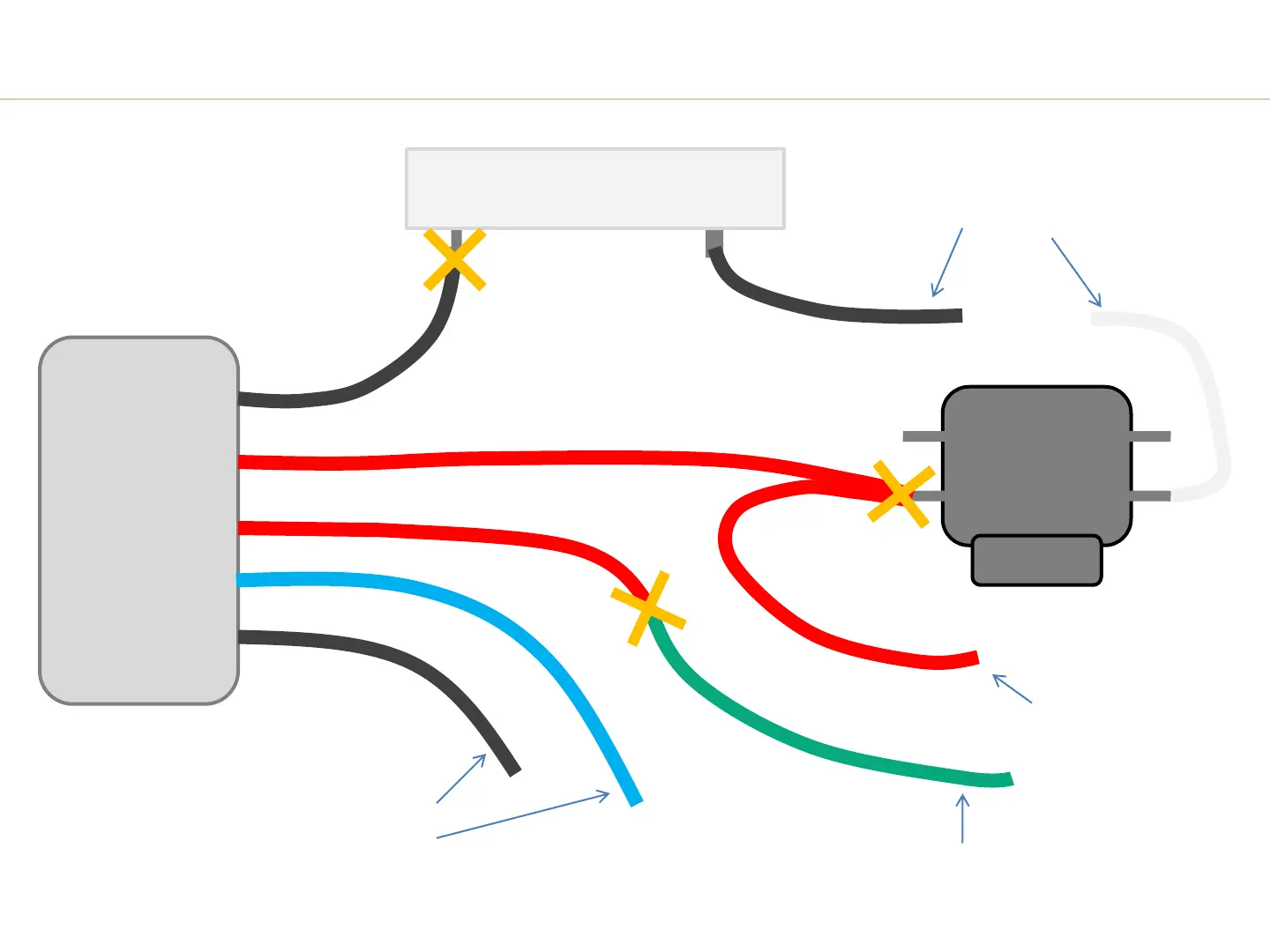

Connection Figure
4
3
2
1
Position A
Position B
Position C
Long red cable
Short red cable
6
7
8
9
Black
Blue
Black
Green
Red
Black
63
