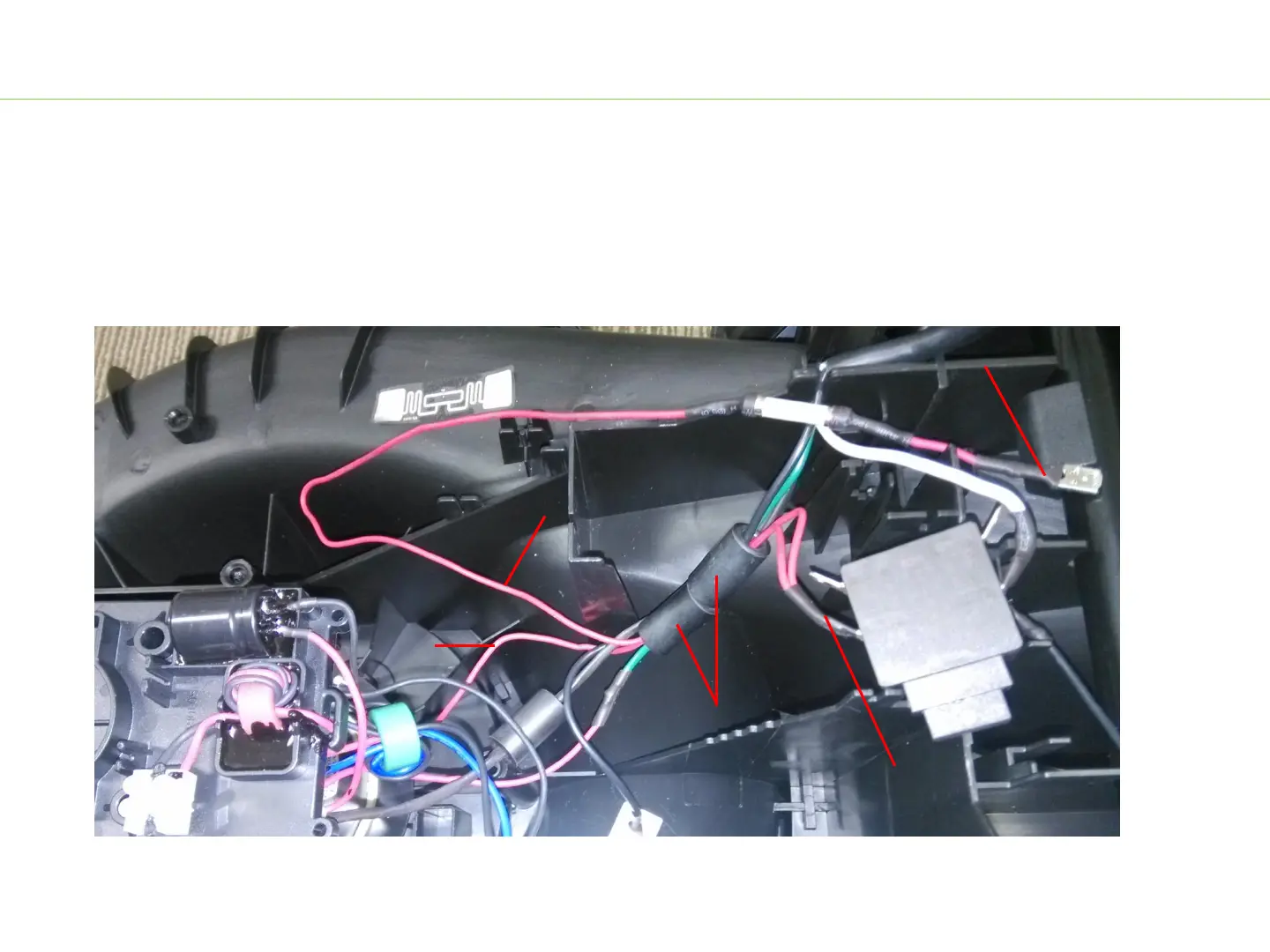

11. Place the previous red cable (7#, with terminal connector) and the long red cable (2) of the
new PCB together through the two black magnetic rings; put a heat-shrinkable sleeve through
the two cables, then solder them to the switch foot (2). Use a hot air gun to shrink the sleeve.
PCB Assembly Replacement
7
2
Make sure the 2#
and 7# cables
passing through the
two magnet rings
switch foot (2#)
Terminal connector
Position C
65
