56-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2100SP/LM2100SP-FC/LM2100/LM2100-FC40
WARNING:
An unbalanced blade will cause excessive vibration when rotating
at high speeds. It may cause damage to the mower and could break, causing personal
injury.
LUBRICATION
Lubricate with light oil as directed below
at least once each season.
◾
Periodically lubricate the spring and
pivot pin in the quick-adjust lever, the
torsion spring and pivot of the rear-
discharge door with light oil to prevent
rust (Fig. 32a & 32b).
◾
Place the mower into the locked
storage position:
1. Move the cutting-height adjustment
lever toward the front and engage it
in the lowest setting (setting 1).
2. Open the handle-locking clamps
and fully recess the side rails to the
compact position.
3. Press and hold the quick-adjust
lever with your right hand to release
the handle.
4. Gently pivot the handle toward
the front of the mower; release the quick-adjust lever and continue to pivot the
handle until you hear and feel the lock pin engage in the locked storage position.

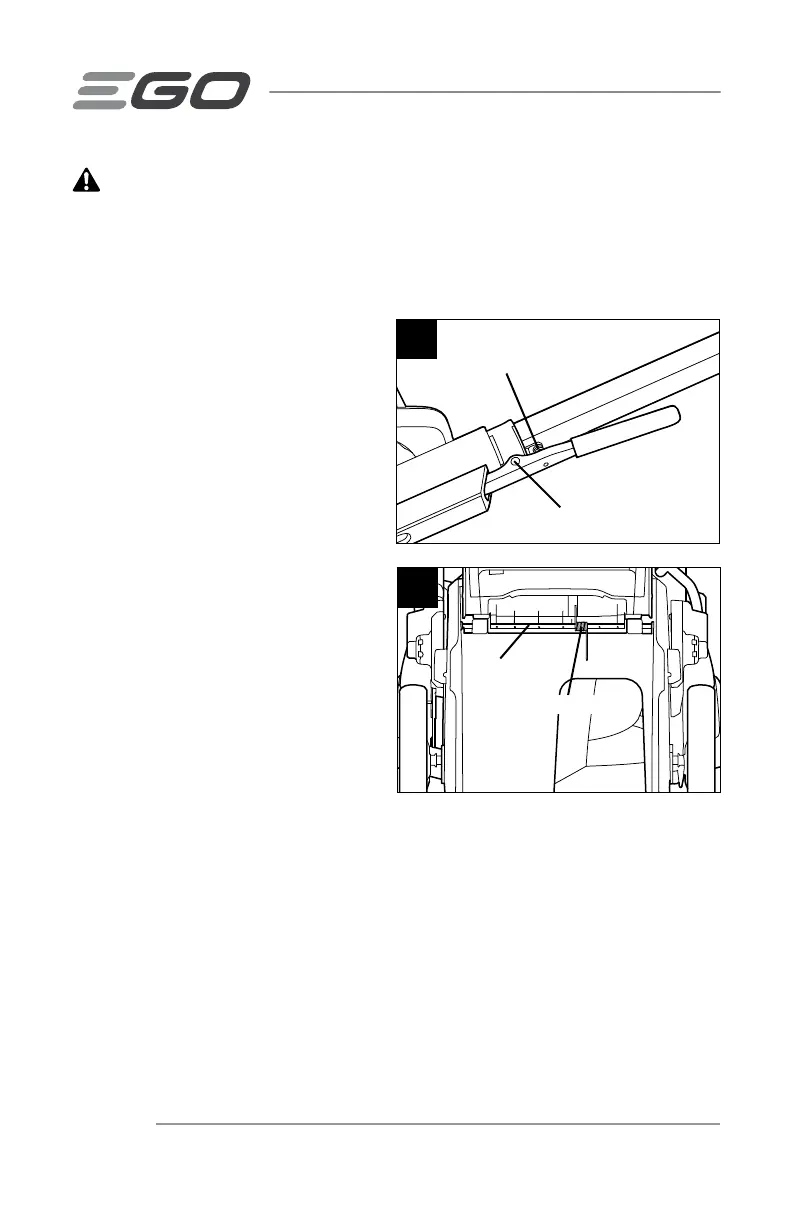

32a
Spring
Pivot Pin
32b
Pivot
Torsion Spring
To Next Page
