REPLACING THE WHEELS

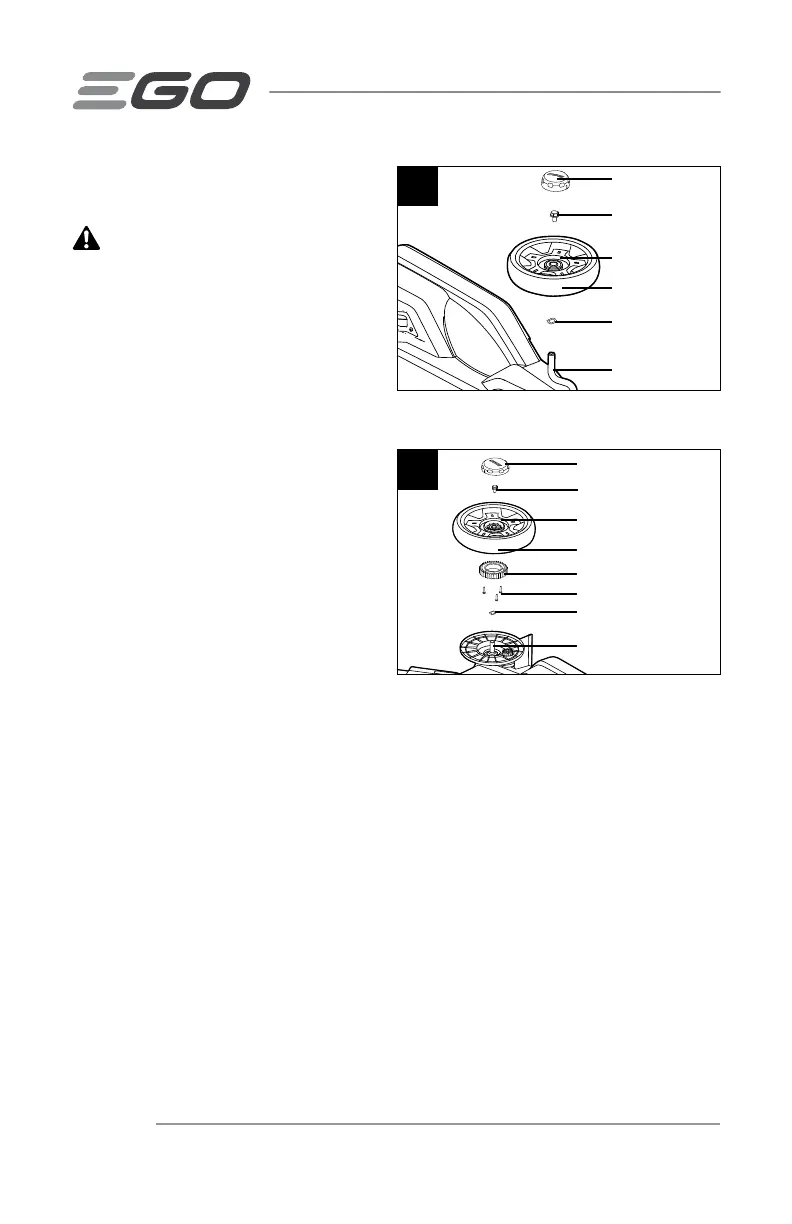

(Fig. 33a, 33b & 33c)
WARNING:
Always remove
the battery pack when servicing or
transporting the mower.
1. Turn the mower on its side with the
upper surface against a wall.
2. Use a at blade screwdriver to pry
the dust cover away from the wheel.
3. Use an adjustable or 1/2 inch
(13mm) wrench to turn the bolt
counterclockwise to loosen it.
4. Remove the bolt, the worn wheel
and the wave washer from the
wheel axle.
33a
Dust Cover
Bolt
Round Recess
facing outside
Front Wheel
Wave Washer
Wheel Axle
Front wheel for both LM2100SP/
LM2100SP-FC/LM2100/LM2100-FC
33b
Dust Cover
Bolt
Round Recess
facing outside
Front Wheel
Wave Washer
Wheel Axle
Gear
Screw
Rear wheel for LM2100SP/LM2100SP-FC
