56-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2110/LM2110-FC/LM2110SP/LM2110SP-FC/LM2120SP/LM2120SP-FC 47

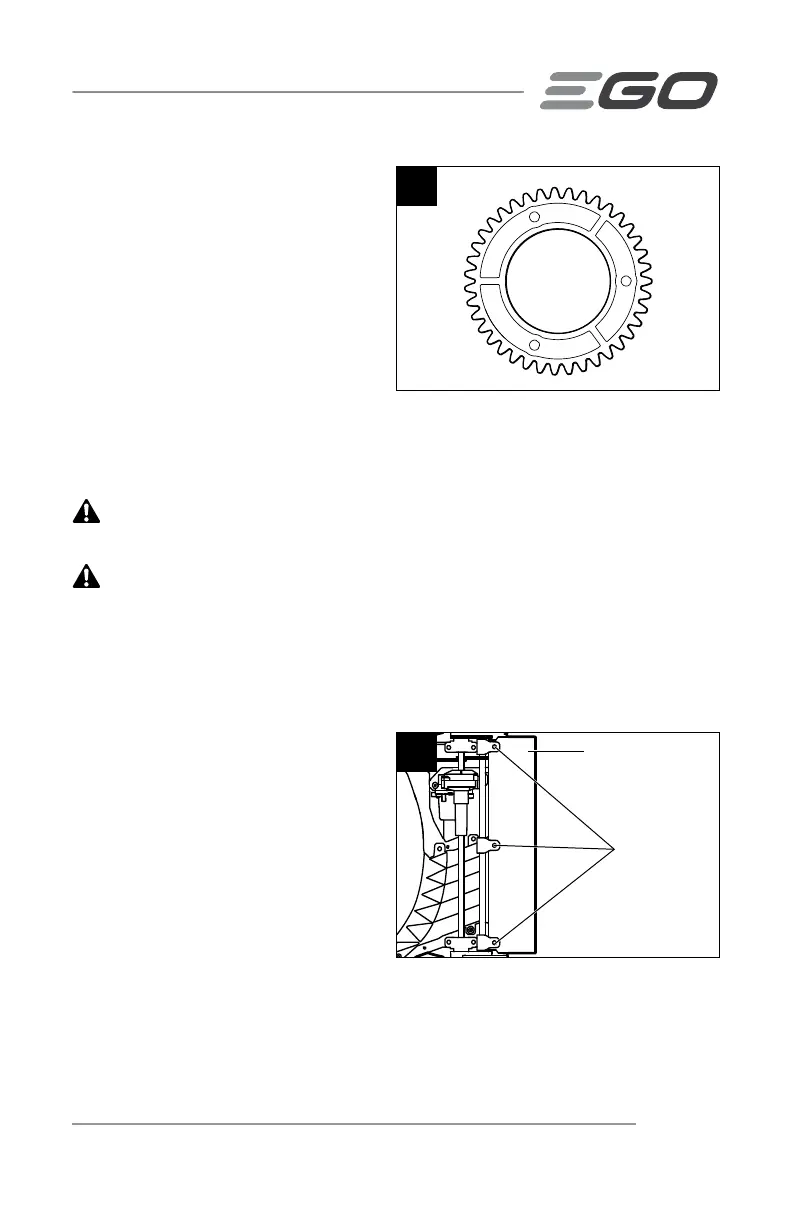

NOTICE: During drive gear mounting, the
surface of the gear stating "OUT" should
face toward outside (Fig. 29d).
5. Mount the wave washer and the
new wheel on the wheel axle. Note
that the round recess must face
outward.
6. Lock the wheel with the bolt by
tightening the bolt clockwise.
7. Mount the dust cover onto the wheel and press it in place.
REPLACING THE TRAILING SHIELD
WARNING:
Always remove the battery pack when servicing or transporting the
mower.
WARNING:
Never operate the mower unless the trailing shield is in place and
working. Never operate the mower with damaged safety devices. Failure to do so can
result in personal injury. The trailing shield is subject to wear and damage, which could
expose moving parts or allow objects to be thrown. For safety protection, frequently
check the trailing shield and replace it immediately with only the identical EGO
replacement part.
1. Remove the battery.
2. Turn the mower on its side with
the upper surface against the
wall.
3. Loosen and remove the three
locking screws for the trailing
shield; remove the worn trailing
shield (Fig. 30).
4. Replace with a new trailing
shield and attach it with the three
locking screws.
OUT
29d
30
Locking Screw
Trailing Shield
