56-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2140SP/LM2140SP-FC42
◾
Place the folded mower upright on
the ground (Fig. 32c).
◾
Lubricate the deck-height adjustment
joint.
◾
Lubricate the bearings on the drive
shaft near the rear wheels and the
bearings in the front wheels
(Fig. 32c).
REPLACING THE WHEELS
(Fig. 33a, 33b & 33c)
WARNING: Always remove
the battery pack when servicing or
transporting the mower.
1. Turn the mower on its side with the
upper surface against a wall.
2. Use a flat blade screwdriver to pry
the dust cover away from the wheel.
3. Use an adjustable or 1/2 inch
(13mm) wrench to turn the bolt
counterclockwise to loosen it.
4. For front wheel, remove the bolt, the
worn wheel and the wave washer
from the wheel axle.
5. For rear wheel, separate the drive
gear from the worn wheel by
loosening and removing the screws.
Save them for reassembling the new rear wheel.

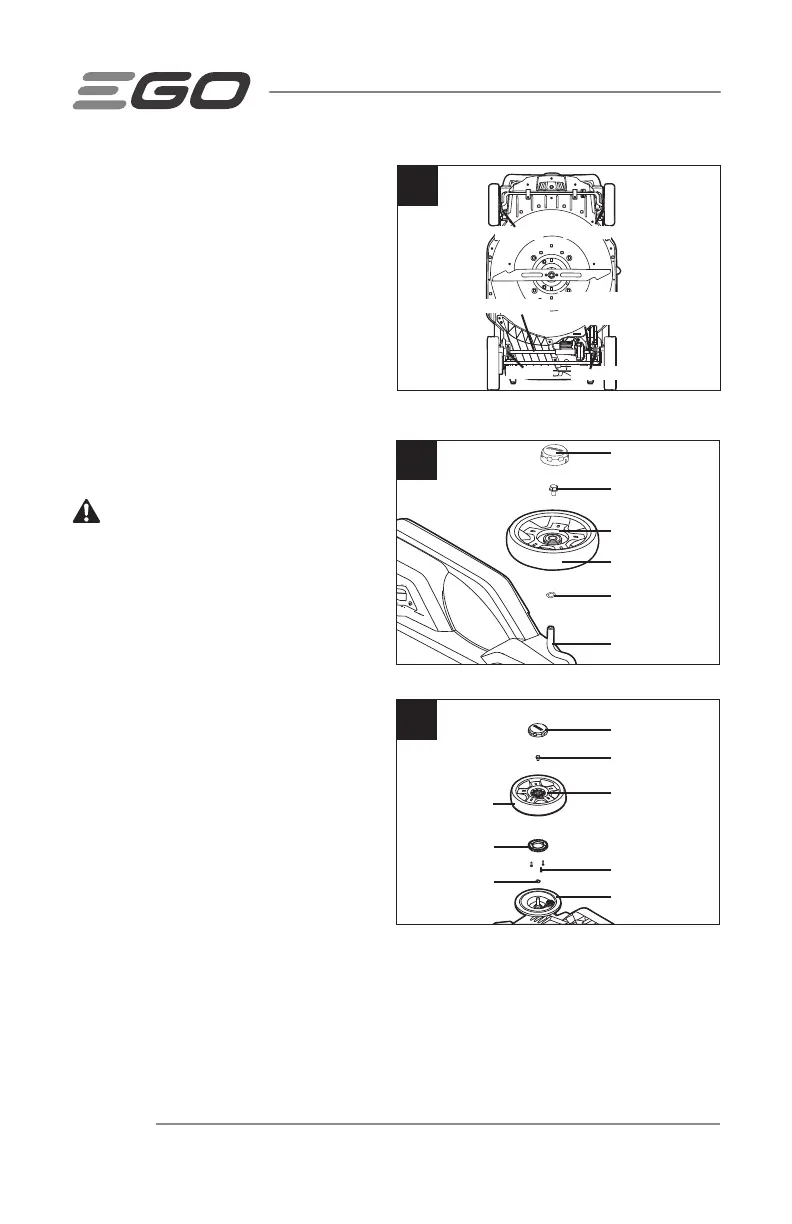

32c
Bearing
Bearing
Drive shaft
Deck-Height
Adjustment Joint
Bearing
Bearing
33a
Dust Cover
Bolt
Round Recess
facing outside
Front Wheel
Wave Washer
Wheel Axle
Front wheel
33b
Dust Cover
Bolt
Round Recess
facing outside
Rear Wheel
Wave Washer
Drive Gear
Wheel Axle
Screw
Rear wheel
To Next Page
