56-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC12
DESCRIPTION

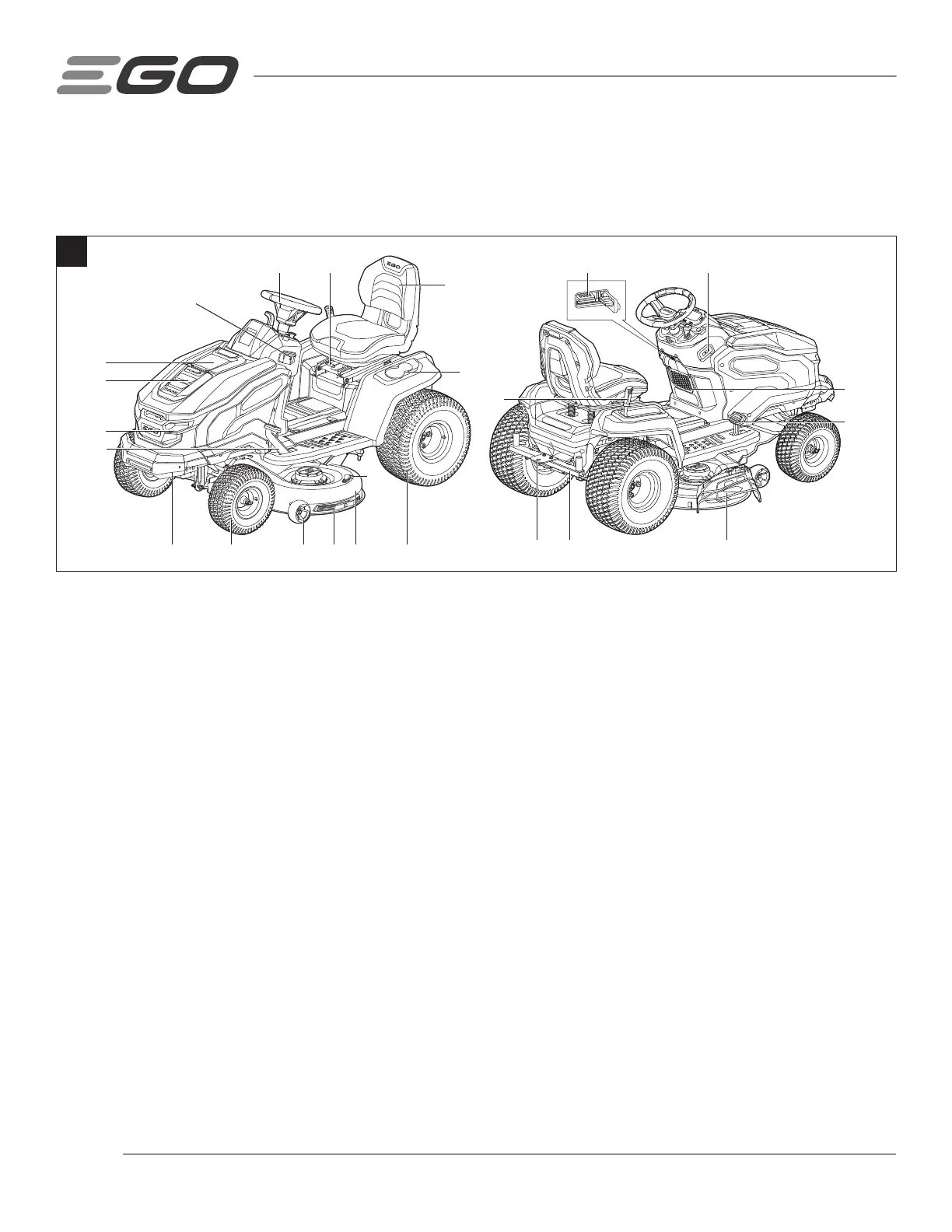

KNOW THE ELECTRIC LAWN TRACTOR (Fig. 1)
1
1
2
356789
11
10
12
13
14
15 16 1718
19
20
212422
23
4
1. Seat 13. Storage Compartment
2. Cup Holders 14. Parking-Brake Lock Lever
3. Rear Wheel (Drive Wheel) (x2) 15. Steering Wheel (Fig. 1a)
4. Wash Port 16. Seat Position Adjustment Lever
5. Deck 17. Charging Port
6. Deck Protector 18. USB Port
7. Anti-Scalp Wheel (x2) 19. Storage Basket
8. Front Wheel (x2) 20. Accelerator Pedal
9. Front Bumper 21. Side Discharge Chute
10. Parking-Brake Pedal 22. Hitch
11. LED Headlight (x2) 23. Deck-Height Adjustment Lever
12. Power Unit (Fig. 1b) 24. Attachment Rack
(for installing the cargo box, sun shade or bagger kit)
To Next Page
