1556-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC

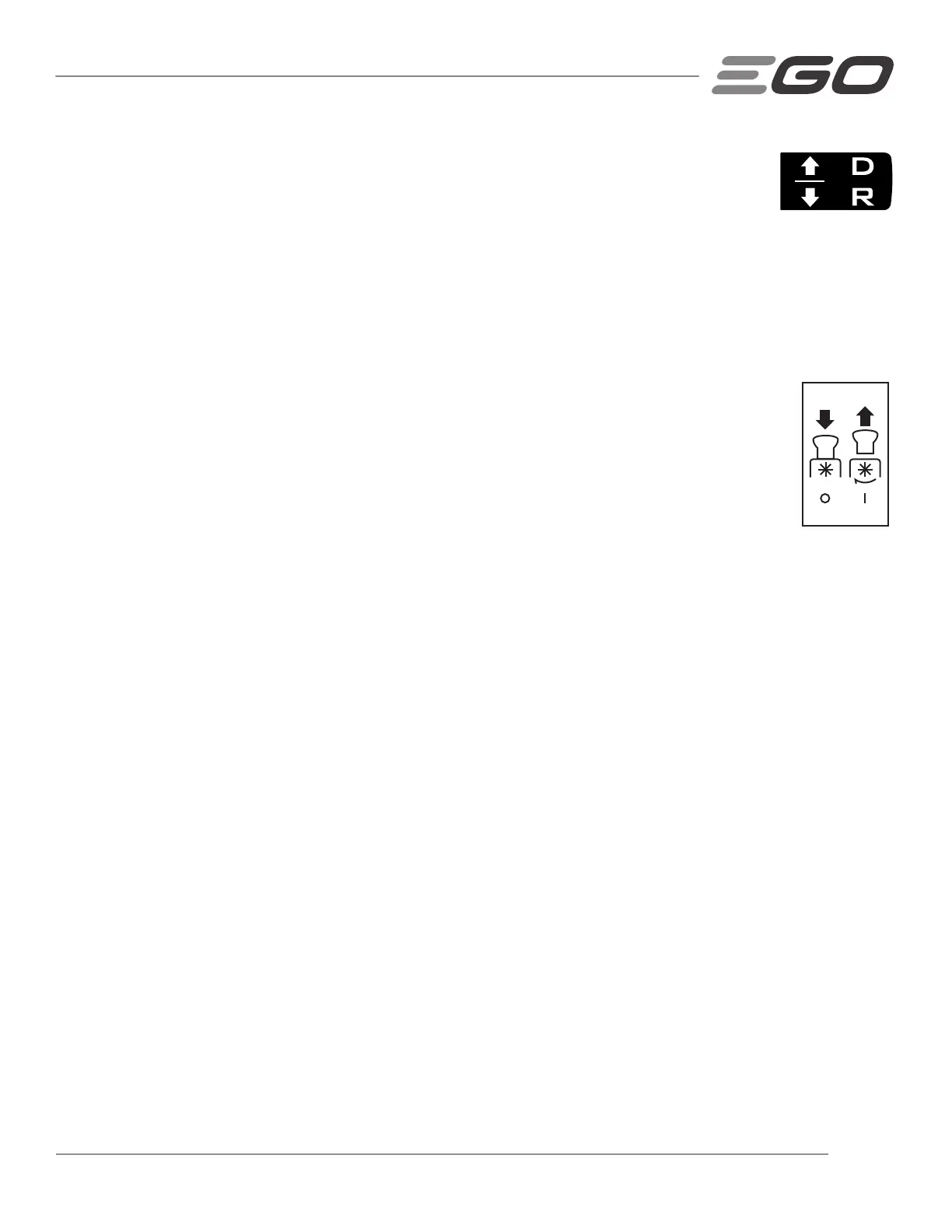

Direction Control Lever
◾
Push the lever all the way forward in the “D” direction to drive the tractor forward.
◾
Pull the lever all the way backward in the “R” direction to drive the tractor in reverse.
◾
Place the lever in the neutral position and the tractor could not be driven.
NOTE: When switching between forward and reverse during driving, move the direction control lever directly from one
end to the other without stopping in the neutral position, otherwise the tractor may stop moving.
NOTICE: Always place the lever in the neutral position when the tractor stops driving, which could prevent unexpected
start if the accelerator pedal is depressed accidentally.
PTO Switch (Pull-to-Operate Switch)
Turns on the blades (blade motors).
NOTICE: It is not recommended to turn on the blade motors when the blades are under heavy load. Raise
the deck and restart the blade motors.
Steering Wheel
Controls the tractor’s driving direction.
Accelerator Pedal
Starts/Stops driving the tractor and controls the driving speed of the tractor.
Seat Position Adjustment Lever
Use this lever to move the high-cushion seat back and forth to the desired position.
Deck-Height Adjustment Lever
The deck-height adjustment lever raises and lowers the cutting deck.
Anti-Scalp Wheel
Prevents the deck from contacting the ground and scalping the lawn when passing over a high spot.
Side-Discharge Chute
Allows the blade to discharge the grass clippings from the side discharge opening. The side-discharge chute is factory
installed.
Hitch
For towing carts or other wheeled attachments. Refer to “TOWING” chapter earlier in this manual.
LED Headlights
Provide light for mowing in low light conditions and allow the tractor to be seen.
Cup Holders, Storage Compartment and Storage Basket
Allow operator to store cups and other personal items.
Charging Port
When used with CHV1600/CHV1600-FC or CH5500/CH5500-FC/CH7000/CH7000-FC + ACA1000/ACA1000-FC charger,
you can directly charge the batteries mounted in the battery compartment.
PTO
ONOFF
