56-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC30

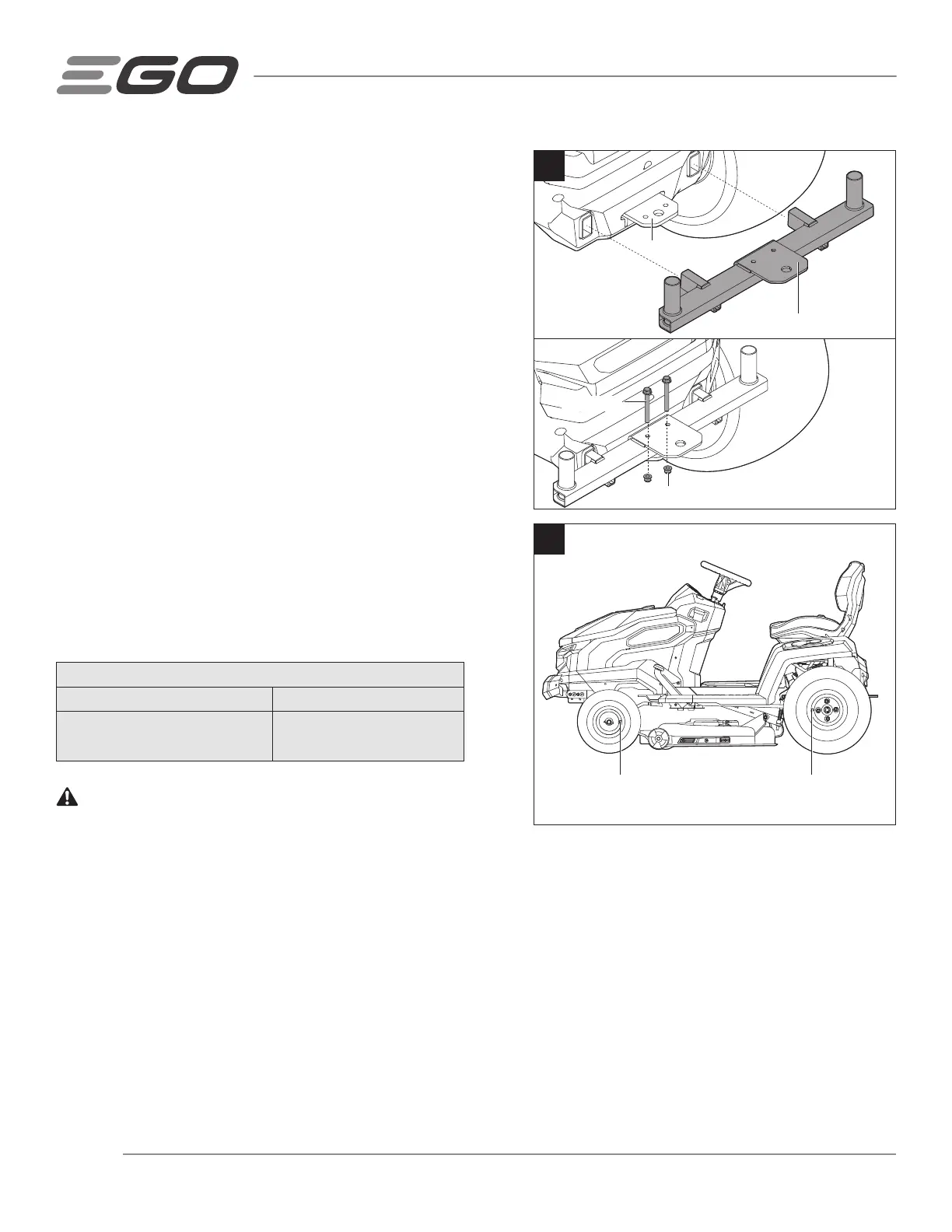

D. INSTALLING THE ATTACHMENT RACK (FIG. 6)
The attachment rack must be installed before installing the cargo
box, sun shade, or bagger kit onto the tractor. The attachment rack
provides mounting holes for the installation of theses accessories.
Install the attachment rack onto the tractor according to your needs.
Required tools (supplied): two combination wrenches.
1. Remove the two M8 x 70 bolt and M8 nut sets from the
accessory box and set them aside.
2. With the mounting holes facing up, insert the square tubes of
the attachment rack into the square holes at the rear of the
tractor (Fig. 6a).
3. Align the holes of attachment rack with the holes of the hitch,
then insert the two sets of bolt and nut and securely tighten
them using the combination wrenches (Fig. 6b).
E. CHECKING THE TIRE PRESSURE (FIG. 7)
Required tools (not supplied): Tire pressure gauge, air
compressor / inflator or heavy-duty bicycle pump.
Check the air pressure in all tires before use. Be sure tires are
inflated to the pressure shown below.
Recommended Pressure
Front Wheels Rear Wheels
14 PSI (96.5 kPa) 22 PSI (151.7 kPa)
WARNING: Check the tire pressure carefully while inflating. Too
much air in the tire could cause the tire to burst, causing serious
personal injury.
F. TESTING THE SAFETY INTERLOCK SYSTEM (FIG. 8)
Inspect the entire product for damaged, missing, or loose parts such as screws, nuts, bolts, caps, etc. Tighten securely all
fasteners and caps and do not operate this product until any missing or damaged parts are replaced.
The tractor incorporates a safety interlock system that will stop the drive motor and blade motors when the operator is
unseated for any reason while the tractor is operating. This is a safety feature designed to prevent runaway or accidental
entanglement. Test the system to be sure it is working correctly.
7
ValveValve
6
Attachment Rack
M8 Nuts
M8 x70 Bolts
Hitch
