56-VOLT LITHIUM-ION CORDLESS 15" STRING TRIMMER16
MOUNTING AND ADJUSTING THE FRONT-ASSIST HANDLE
WARNING:
Always remove the battery pack from the product when you are
assembling parts, making adjustments, cleaning, or when the product is not in use.

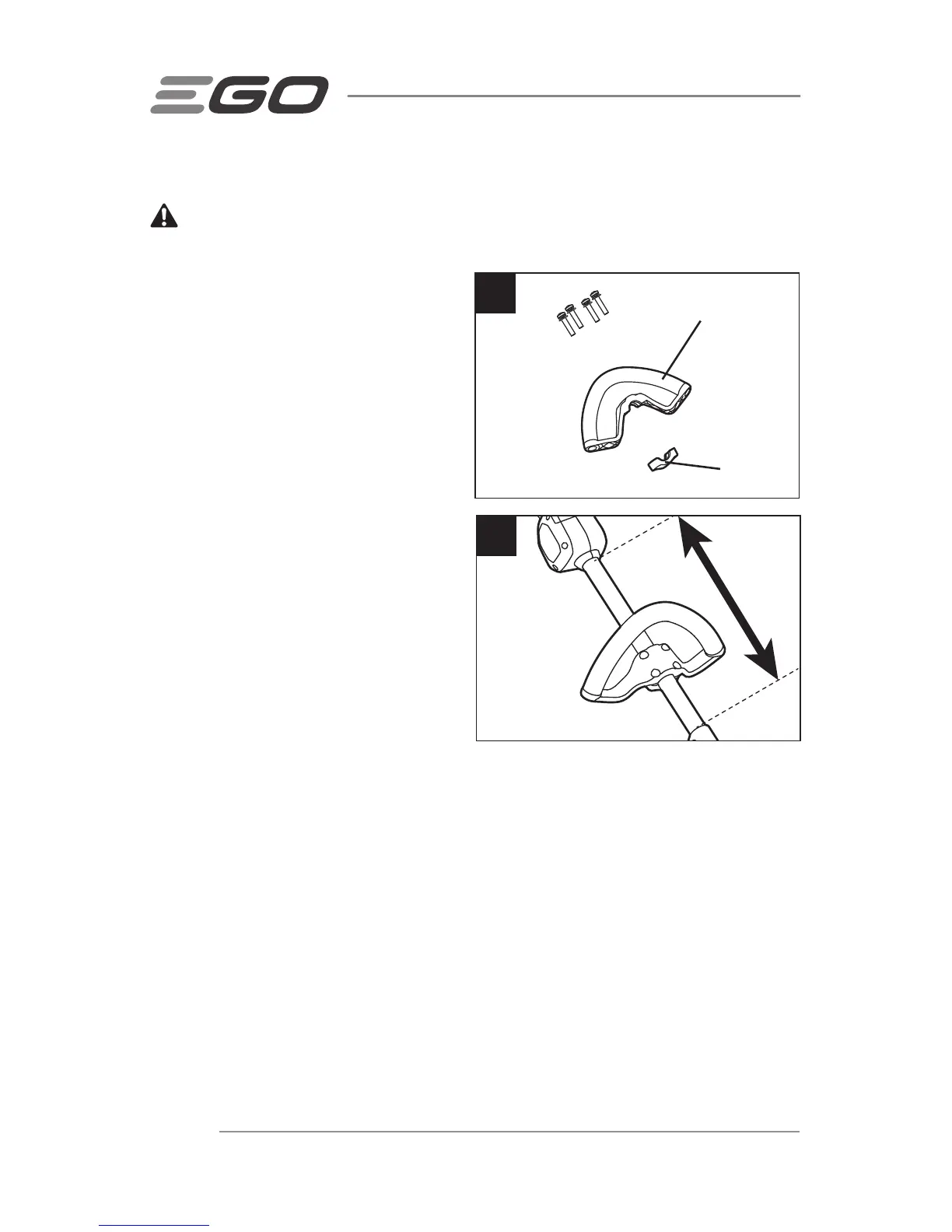

1. Remove the battery pack from the
trimmer.
2. Loosen the four screws in the
handle with the supplied hex
wrench and remove the screws and
the lower clamp from the handle
(Fig. 6).
3. Attach the front-assist handle and
lower clamp on the shaft and secure
them by pre-tightening the four
screws. Turn the front-assist handle
upwards so that it points toward the
top of the handle (Fig. 7).
4. Adjust the front-assist handle
position between the rear handle
housing and the joint of the shaft,
as shown in Fig. 7. For ST1500F,
adjust the handle position so that it
is between the rear handle housing
and the warning label on the shaft. Shorter users may adjust the handle to a
lower position (away from you) and taller users may adjust the handle to an upper
position (towards you). The handle should be adjusted so your front arm will be
straight when using the trimmer.
5. Tighten the four screws so that the handle cannot be rotated on the shaft.
7
6
Front-Assist Handle
Lower Clamp
