61

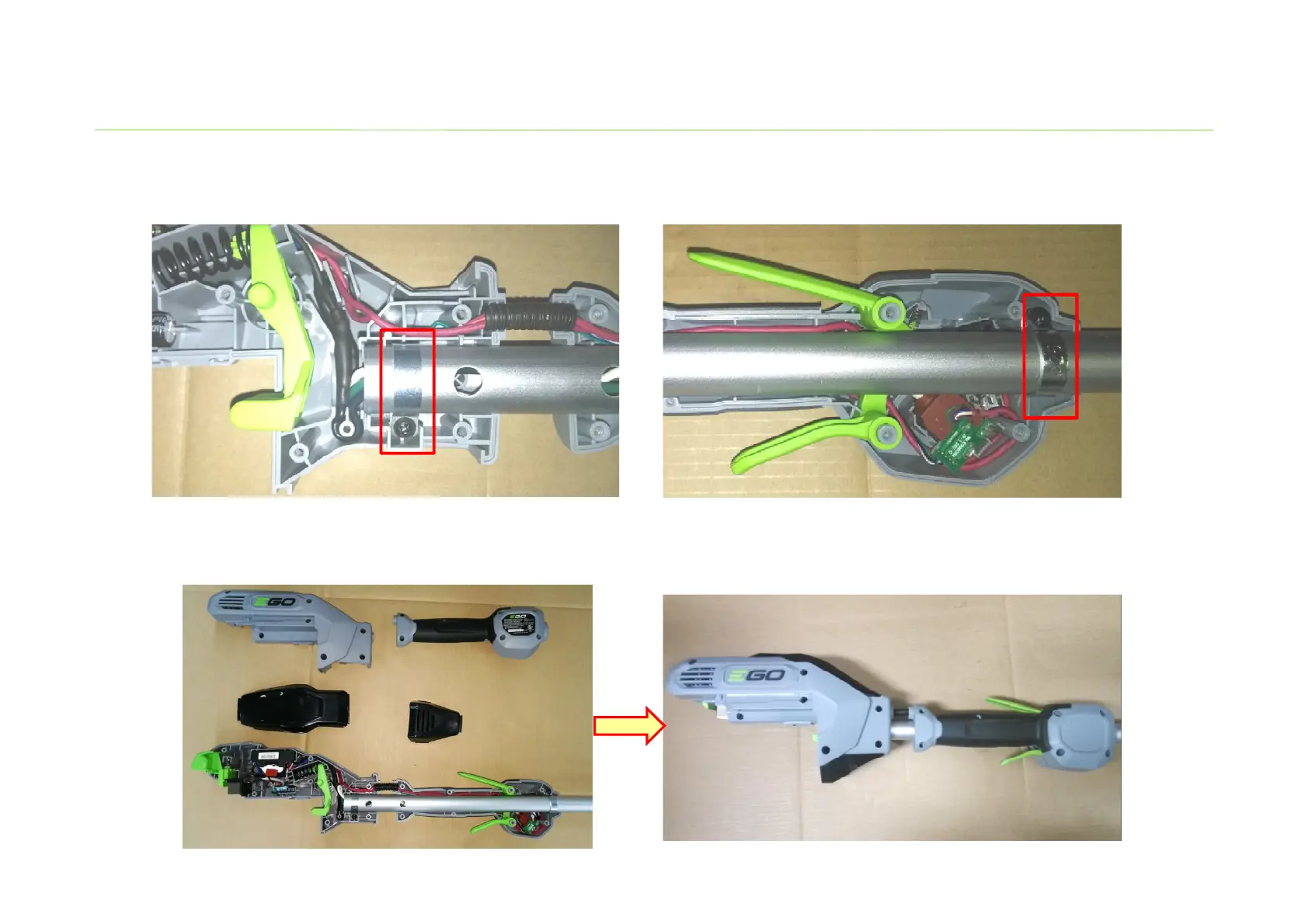

18. Position the shaft in the rear housing and handle housing, lock it by the fixed rings with the
tapping screws.
19. Close the handle housing, put the lower cover and upper cover into position, then close the
rear housing, lock the housings with 14 tapping screws.
Replace the Hinge Assembly
