1.13 Digging at Recommended Water Depth
For safety reason, digging jobs at watery area can only be performed at limited water depth.

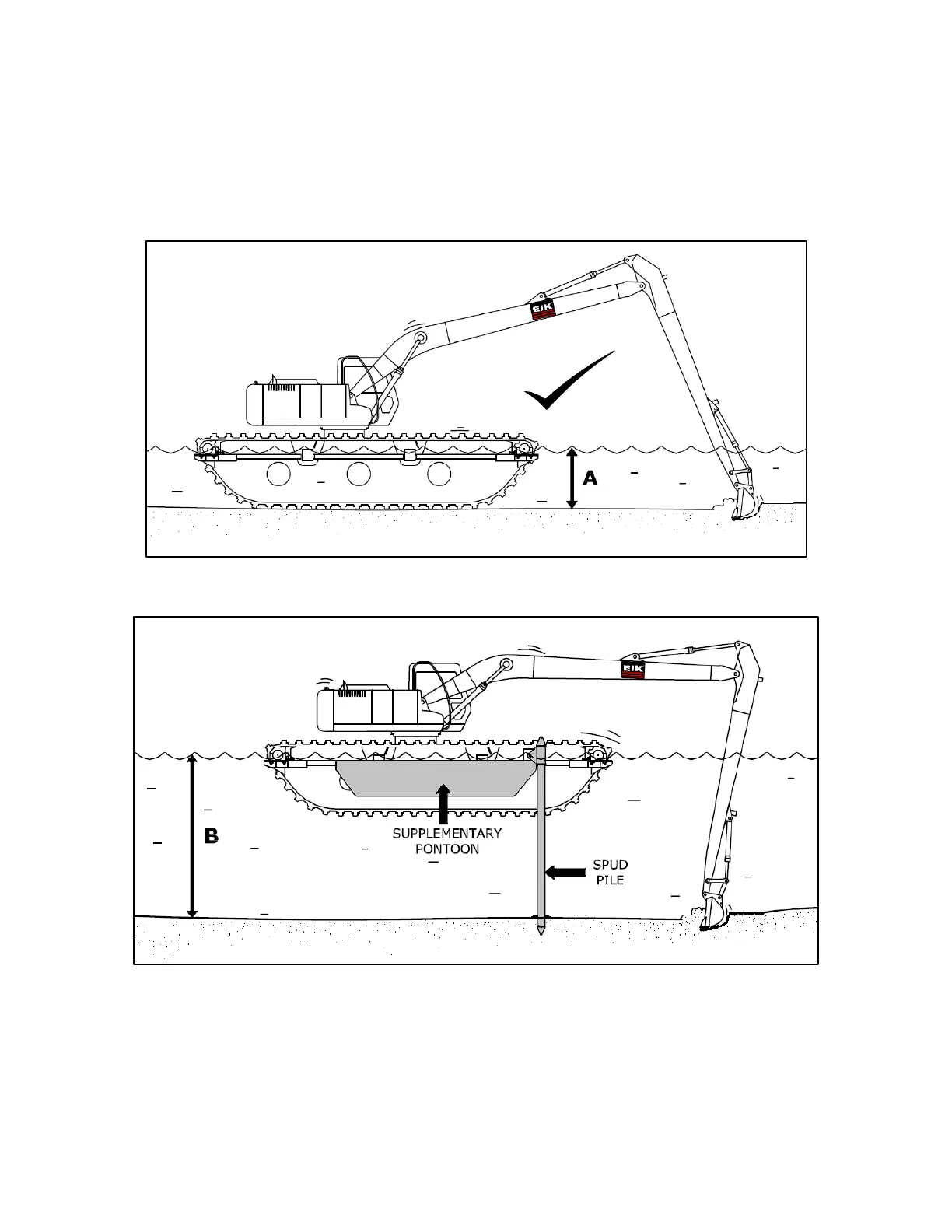

Figure 1.17 below illustrates a standard amphibious excavator operates at water depth A and
figure 1.18 illustrates an amphibious excavator operates at water depth B with supplementary
pontoon and spud piles. Refer to Table 1.1 on next page.
Figure 1.17
Figure 1.18
