2.3.2 Hydraulic Cylinder Pin and Bushing
The application of hydraulic cylinder pin and bushing on EIK amphibious
undercarriage/excavator is limited at extendable model only. These pin and bushing
must be greased for every 50 hours.

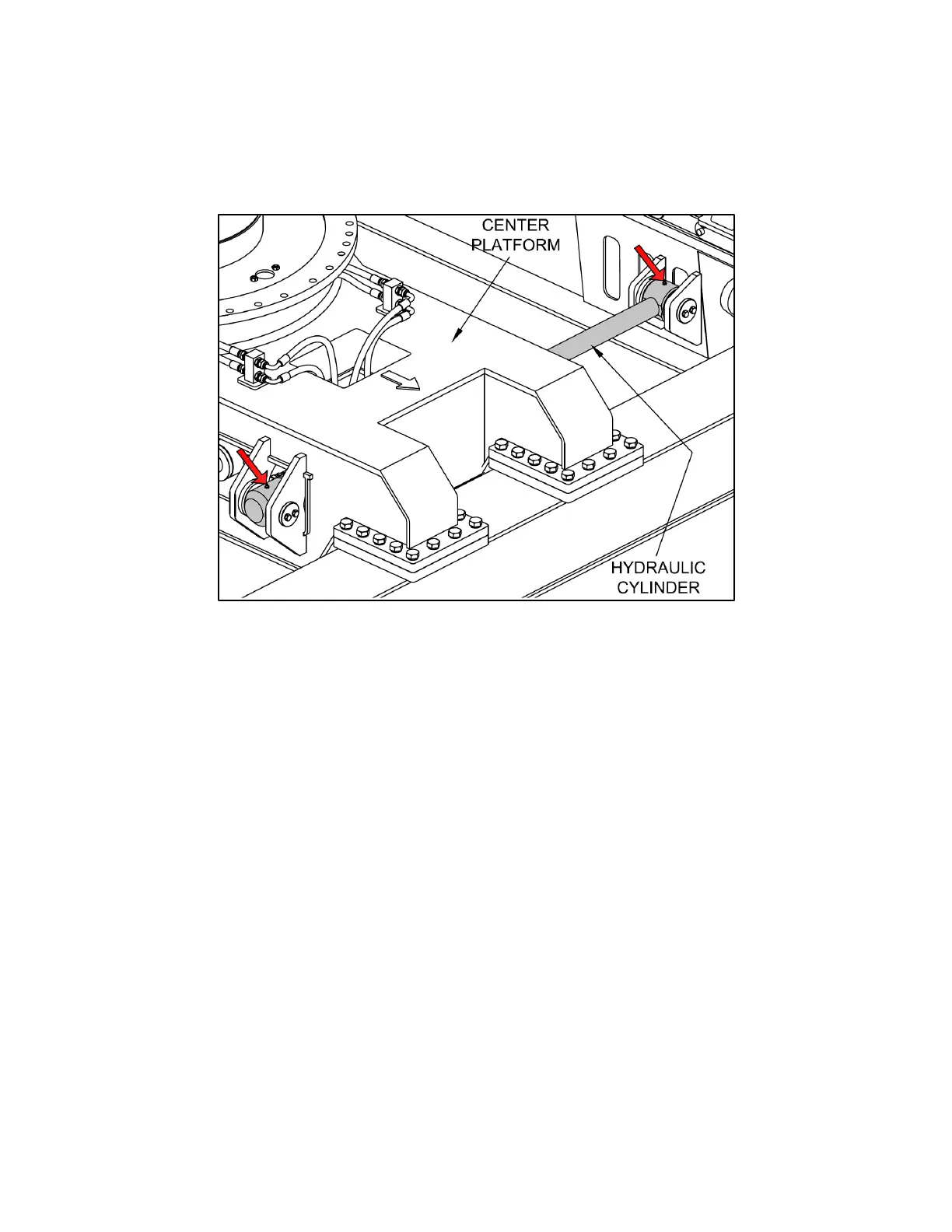

Figure 2.7
22
