2.1.6 Loosen the lock nut (A) at the track tension adjuster and push out the axle by retighten
the bolt (A) until the biggest gap between track roller and pontoon body at the ZCA is
between 1½ to 2½ inches.
NOTE: Bolts and nuts (B) must be loosed before axle can be pushed out and both of axles (front
and rear) must be pushed out with the same distance.
WARNING! Do not excessively tight the bolt until gap G is less than 1½ inches.

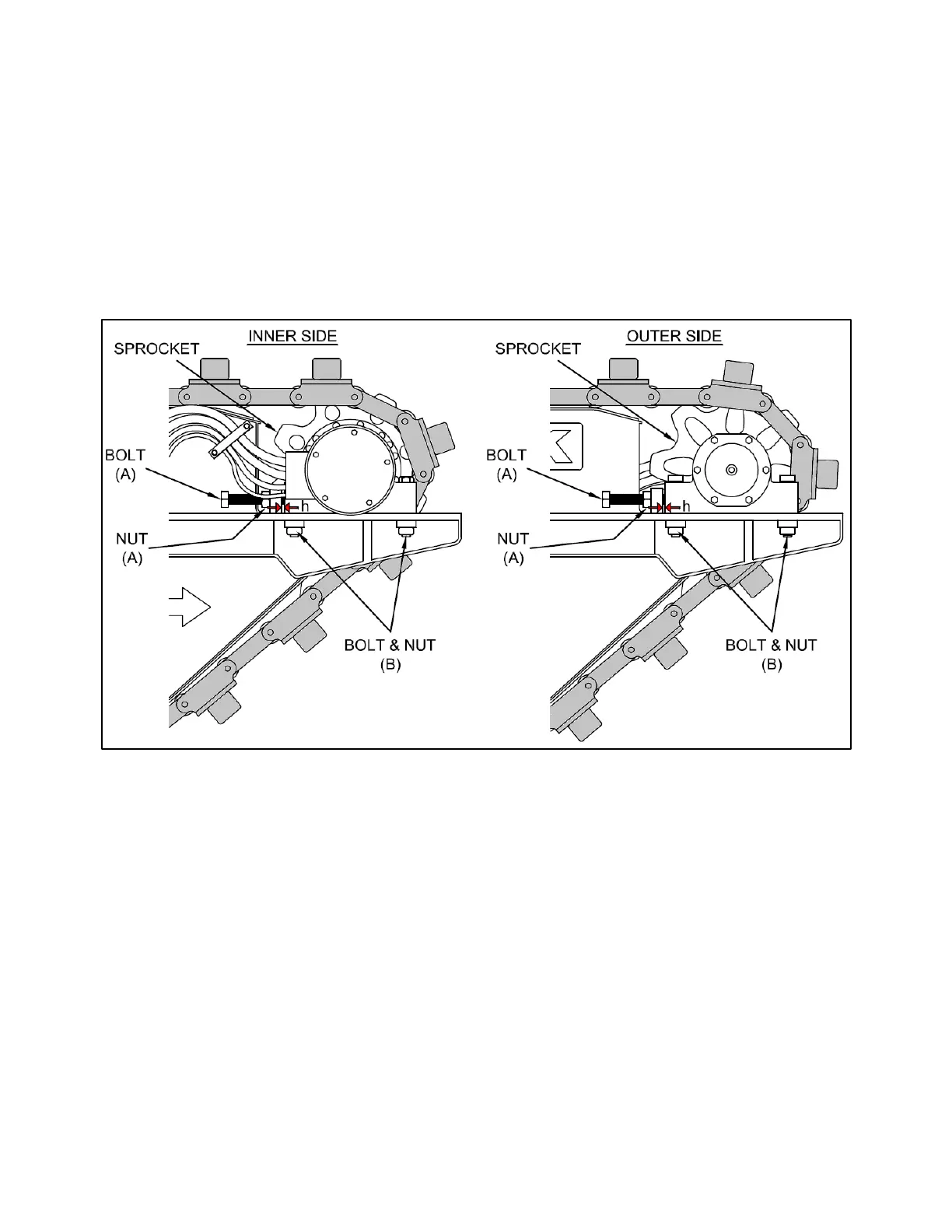

Figure 2.4
2.1.7 Measure the gap, h and adjust the track tension until all h are same at each end of
pontoon to ensure that each axle is aligns with the track chain as per figure 2.4.
IMPORTANT: Misalignment between axle and track chain can cause excessive wear and tear to
the sprockets and track chain.
