EIK AM200 - Page 35

www.eikengineering.com

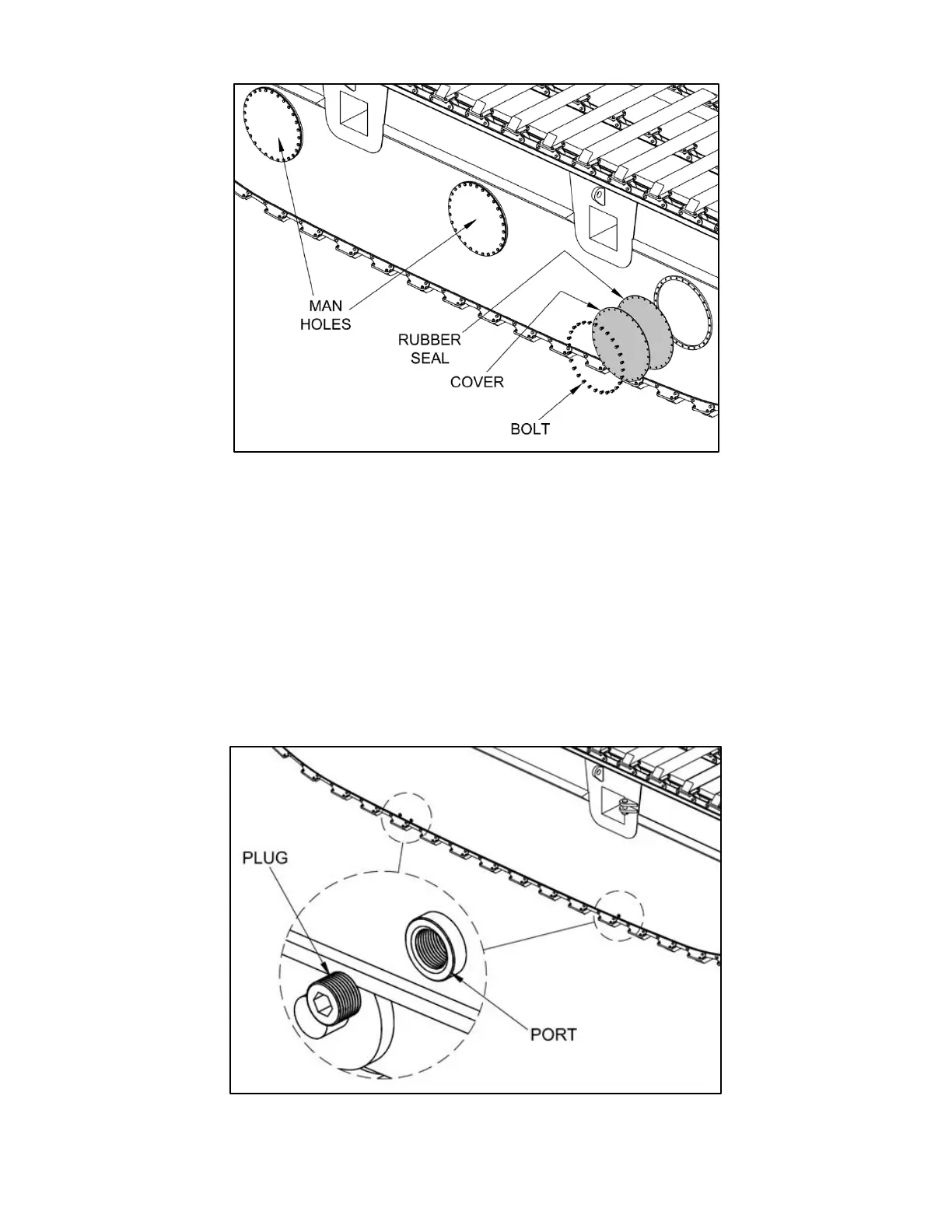

Figure 2.15
NOTE: Serious damage or leaks must be repaired from inside. Small leaks can be inspected and
repaired from outside.
2.9.2 Remove all the drain port plugs for each compartment at the bottom of the inner side
wall for suspected leakage pontoon.
NOTE: Compartment with plenty amount of water flows out from the drain port is subjected to
leakage problem.
Figure 2.16
32
