6.3 - Start-up instructions
ATTENTION:
 The calibrator can only be used correctly if the user has a good knowledge of its basics.
 Before starting with the calibration following the instructions for the positioning of the equalising block
(paragraph 5); carefully read paragraph 3 and 4.
To calibrate the probe it is possible to follow two ways: calibration with internal indicator (7), or calibration
with external reference.
Calibration with the internal indicator (7):
Make reference to the temperature value of the display (7:
fig.4).
It is opportune to refer the value to the test report to
compensate the error of the display.
Calibration with external reference and reading on the
calibrator display:
Make reference to the temperature value of the external
standard instrument inserted in the equalizer block and
connected directly to the Solar (Fig.5); temperature is read
on the second line of display (for the configuration of the
external reference seeing 10.1). When possible: put the
sensitive elements of the probes near and at the same dept
(reference to Fig.1-3)
Calibration with external reference and reading on an
external instrument:
Make reference to the temperature value of the external
standard instrument inserted in the equalizer block and
connected to an external instrument (Fig. 5). When
possible: put the sensitive elements of the probes near and
at the same dept (reference to fig.1-3).

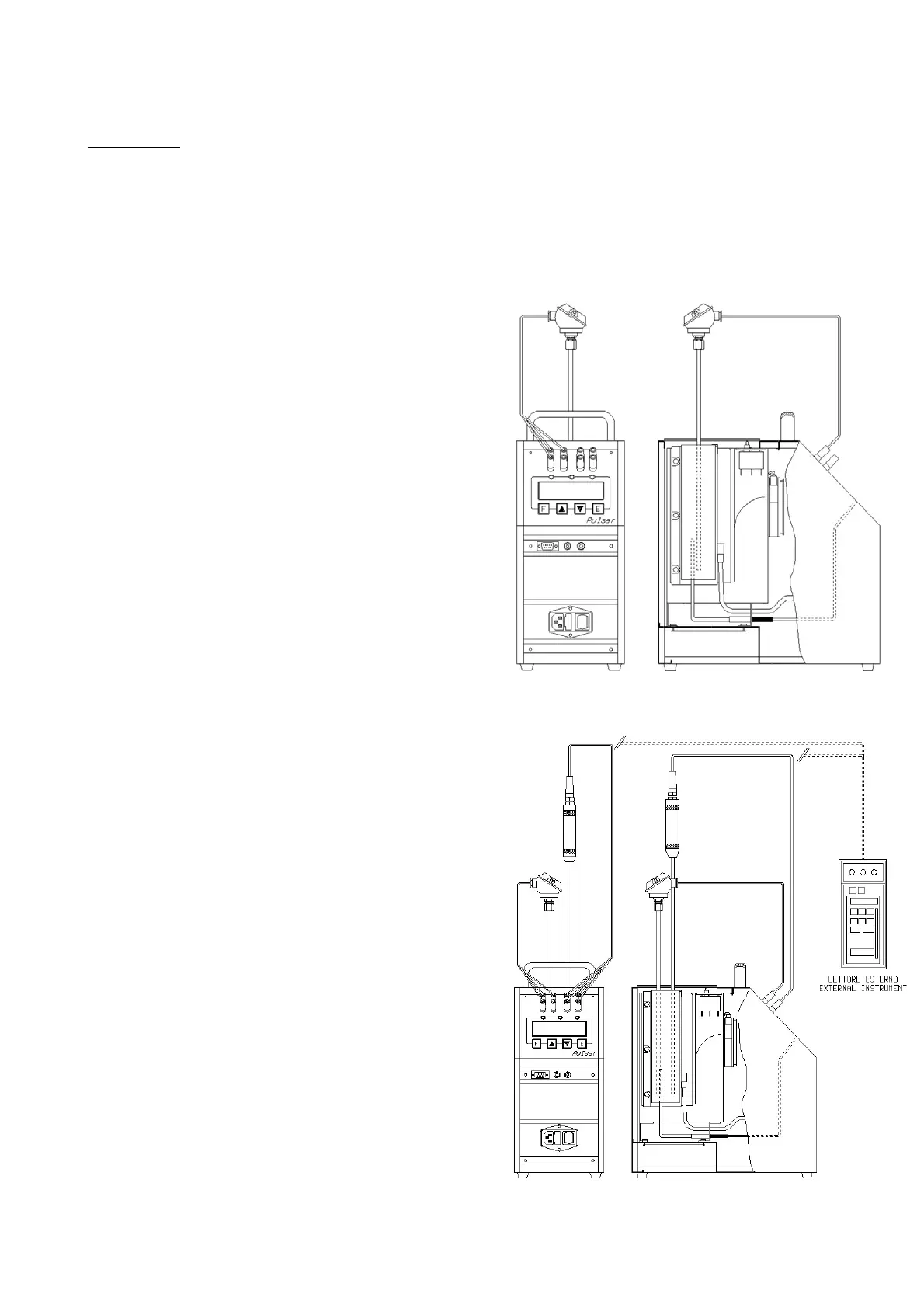

Fig.4
Fig.5
