EK-Quantum Vector2 Arc A750-RGB - Technical Specifications

- 6 -

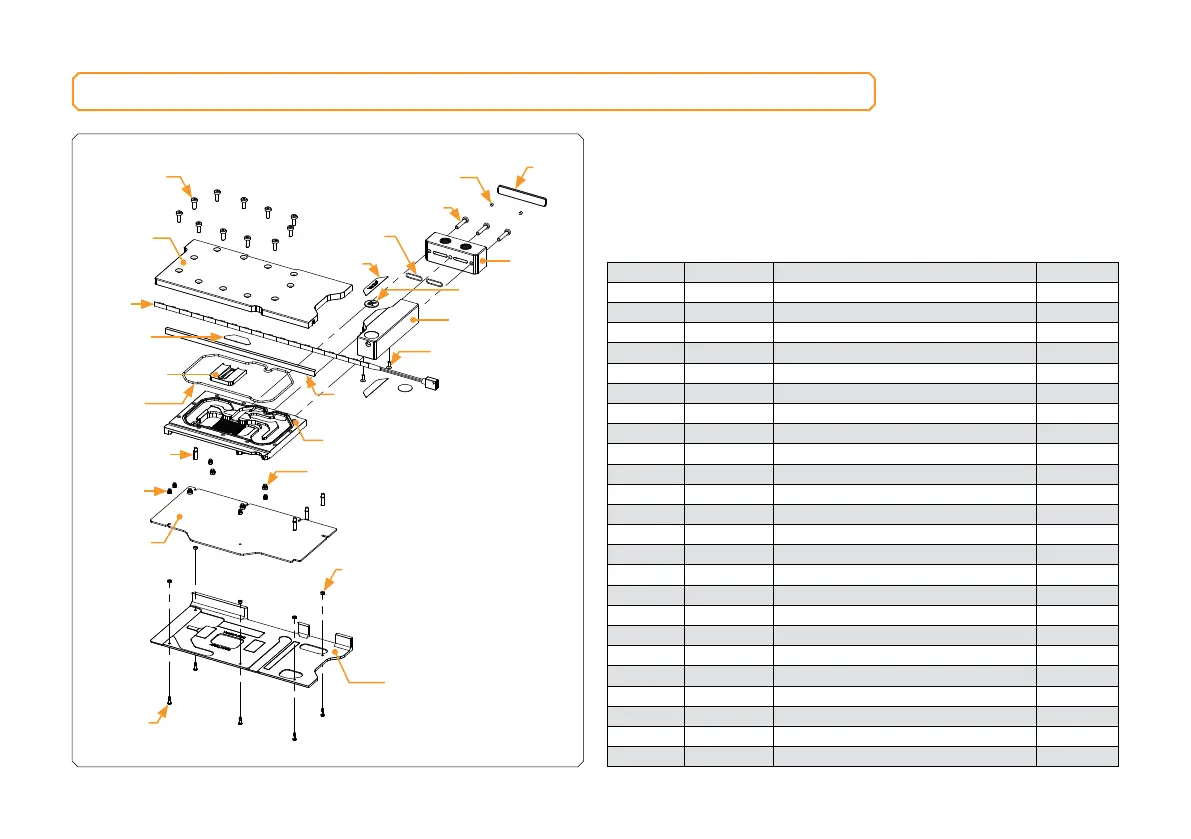

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS
Technical Specification:
- Dimensions: (L x H x W): 244 x 126 x 27 mm
- D-RGB LED count: 12
- D-RGB cable length: 50 cm
- D-RGB connector 3-pin 5V digital LED header
(Pinout: +5V | Data | Blocked | Ground)
Position EAN Description Quantity
1 106137 Coldplate (Ni) 1
2 106147 Stand out (Acetal) 1
3 103964 Mylar sticker 2
4 100663 EK - Badge 2
5 8208 Screw M3 x 8 7991DIN 2
6 106138 Top plate (Plexi) 1
7 103988 Standoff M4-M2.5 x 3 mm 4
8 103987 Standoff M3.5-M2.5 x 3 mm 5
9 103986 Standoff M3.5-M2.5 x 11.3 mm 4
10 103962 Plexi insert 1
11 103947 FC Terminal (Acetal) 1
12 104106 Terminal OR -14 x 1 mm 2
13 104216 Disc magnet 3 x 3 2
14 8311 Screw M4 x 20 DIN7984 3
15 106143 LED Cover (N.elox) 1
16 103975 Bridge Plate 1
17 9024 Screw M4 x 10 DIN7984 11
18 5055 OR 118 x 2 mm 1
19 106023 Terminal Intel ARC Badge 1
20 106141 Backplate (Bl.elox) 1
21 104187 Screw M2.5 x 8 AX1 5
22 104188 Standoff fi 4.5/2.5 mm 5
23 101556 LED D-RGB strip 500/300 mm 1
24 106146 PCB cardboard 1
19
22
4
7
5
11
15
1
2
17
3
14
13
12
6
9
8
23
10
16
18
20
21
24
