EK-Quantum Velocity 2 - Preparing the Water Block; Remove Existing Coldplate Components; Install Direct Die Components

- 7 -

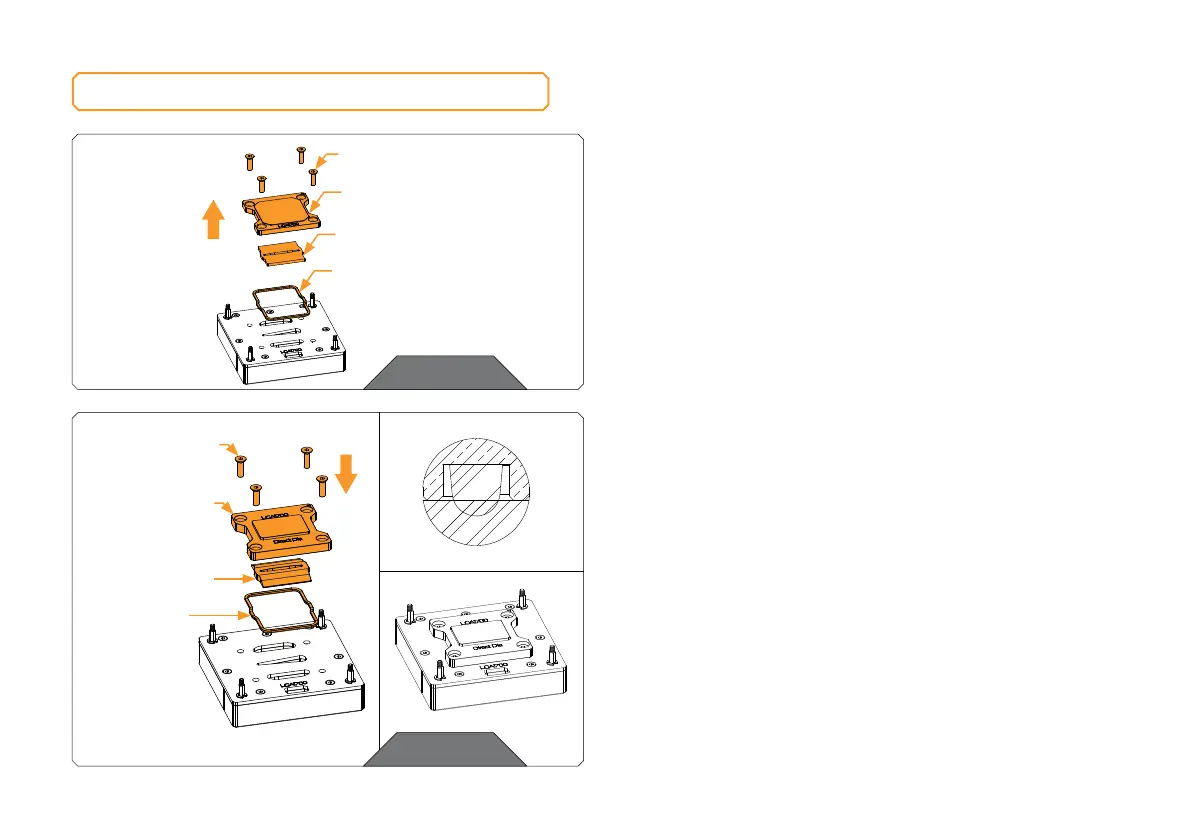

STEP 1
M4 x 14 DIN7991 SCREW
M4 x 14 DIN7991
SCREW
COLDPLATE
DIRECT DIE
COLDPLATE
JE T PL AT E
DIRECT DIE JET
COLDPLATE O-RING
COLDPLATE
O-RING
PREPARING THE WATER BLOCK
STEP 1
Take your Velocity
2
1700 block, unscrew the M4 x 14 screw, and
remove the coldplate, jet, and O-ring.
STEP 2
Install Direct Die Coldplate, Direct Die Jet, and O-ring on the water
block using the M4 x 14 screws.
Position the O-ring so the flat part of the o-ring is in the coldplate like
shown in the drawing.
STEP 2
