EK-Quantum Velocity 2 - Installing the Die Guard and Applying the Paste; Clean CPU Die; Mount Die Guard and Backplate

- 10 -
STEP 5
Cleaning the CPU: Wipe the DIE clean using a non-abrasive cloth
or Q-tip.
STEP 5
Non-abrasive
Cloth
DIE

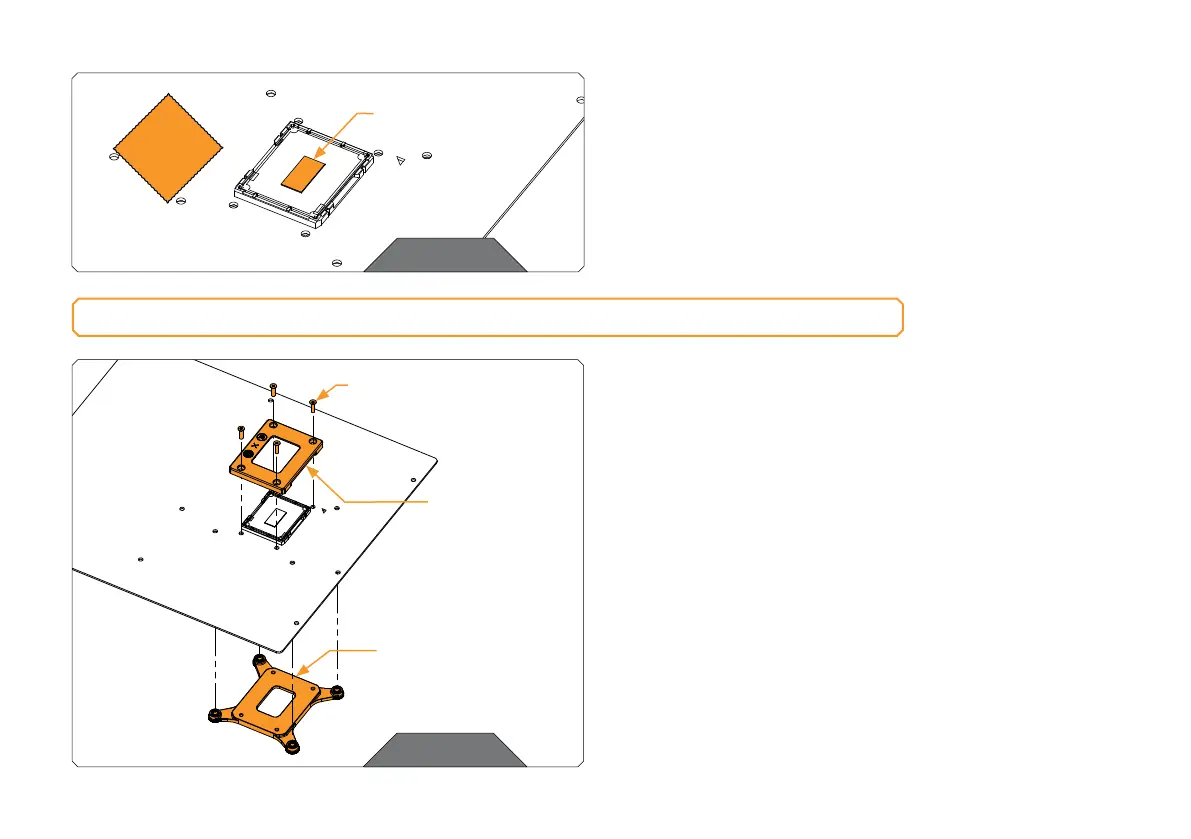

STEP 1
Place the DIE GUARD on the motherboard and align it with the holes.
On the back of the motherboard place the BACKPLATE. Then use
the M3 x 12 screw to mount the DIE GUARD to the BACKPLATE.
STEP 1
INSTALLING THE DIE GUARD AND APPLYING THE PASTE
M3 x 12 SCREW
BAC KPL ATE
DIE GUARD
