EKO MS-80 Manual

EKO INSTRUMENTS CO., LTD. - Pyranometer MS-80 - Instruction Manual Ver. 3
Pg. 13
5. Getting Started
5-1. Parts Name and Descriptions
Each part name and its main function is described below.
Parts Name
A. Diffuser
B. Glass Dome
C. Sensor
D. Body
E. Sunscreen
F. Levelling Screw
G. Cable, Connector
H. Bubble Level
I. Knurling Screw
Parts Name
A. Diffuser
B. Glass Dome
C. Sensor
D. Body
E. Levelling Screw
F. Cable
G. Bubble Level
MS-80 / 80A/ 80M
*Signal converter is built-in for MS-80A and MS-80M.

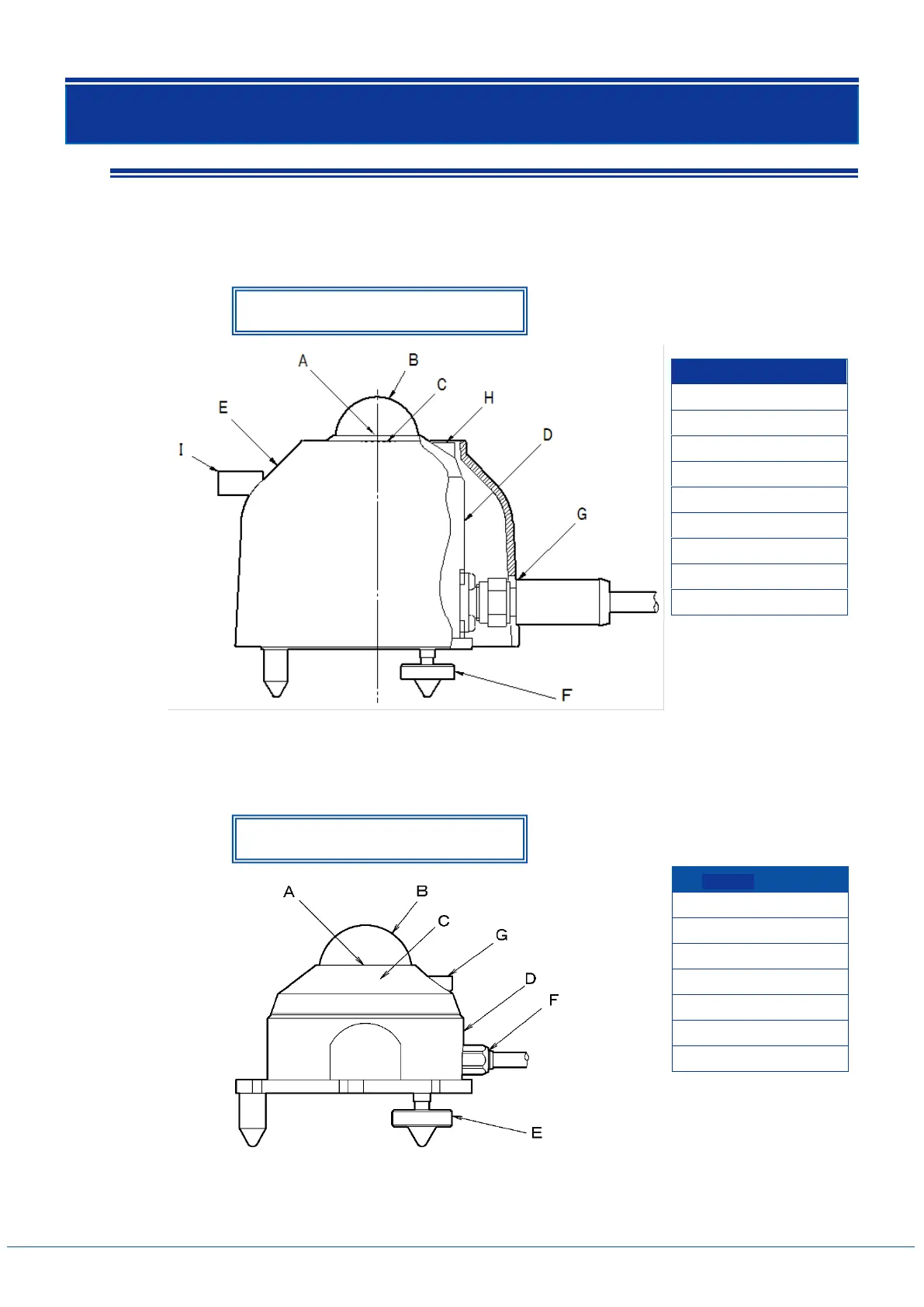

Figure 5-1. Pyranometer Parts Name (MS-80 / 80A / 80M)
MS-80U
*The cable can’t be removed from the pyranometer
Figure 5-2. Pyranometer Parts Name (MS-80U)
Table 5-1. Parts Name
(MS-80 / 80A / 80M)
Table 5-2. Parts Name
(MS-80U)
