7-3. Output Cables
See [5-2. Installation, 2. Wiring] for instruction
1. MS-80 / MS-80A / MS-80M
2. MS-80U
7-4. Accessories List
MS-80U does not have an accessory.
Table 7-5. Accessories List (MS-80 / 80A / 80M)
Option Items
Remarks
Output Cable
Cable Length: 20m, 30m, 50m
Terminals: Fork Terminals, Round Terminals, Pin Terminals
EKO Sensor USB Controller
For MS-80A Configuration Cable
RS485 / USB Converter Cable
Converts from RS485  USB for the communication with MS-80M and
allows to connect to PC with USB terminal
No. Line color
1. Brown
2. White
3. Blue
4. Black
5. Gray
Shield

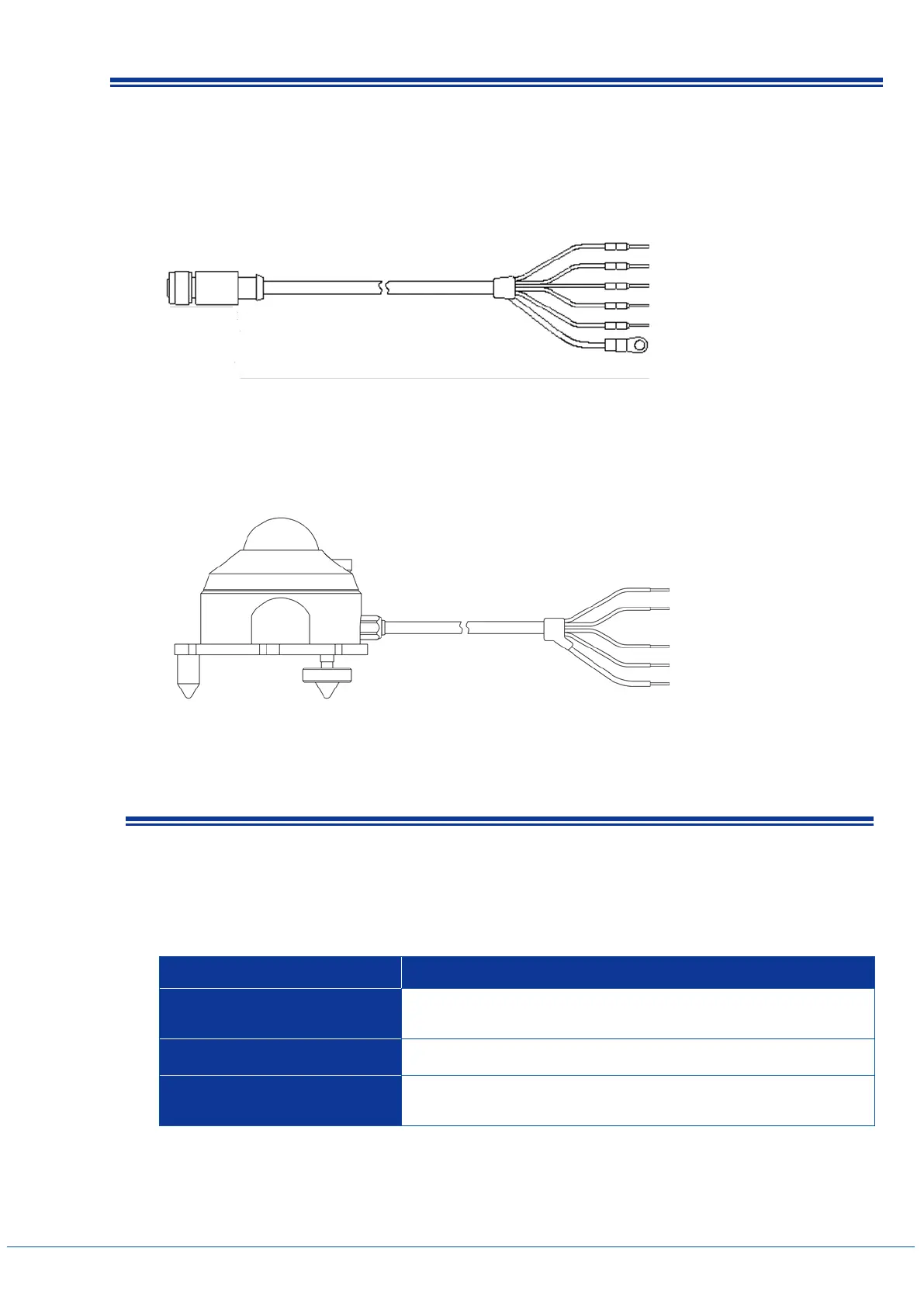

Figure 7-3. Output Cables (MS-80 / 80A / 80M)
No. Line color
1. Red
2. White
3. Green
4. Black
Shield
Figure 7-4. Output Cables (MS-80U)
