2. Dimensions & Weights
Below table and figures give the pyranometer dimensions for each model.
Table 7-3. Dimensions
MS-802/402
MS-602
MS-802F/402F
A. Fixing Hole Pitch
80 mm
60 mm
160 mm
B. Body Height
65 mm
45 mm
140 mm
C. Leveling Screw Height
*16 mm
> 0mm
*16 mm
D. Width
(including Sun Screen/Cover)
φ160 mm
φ78 mm
φ200 mm
E. Overall Height (approx.)
108mm
66mm
183mm
* Length of fixed leg is indicated

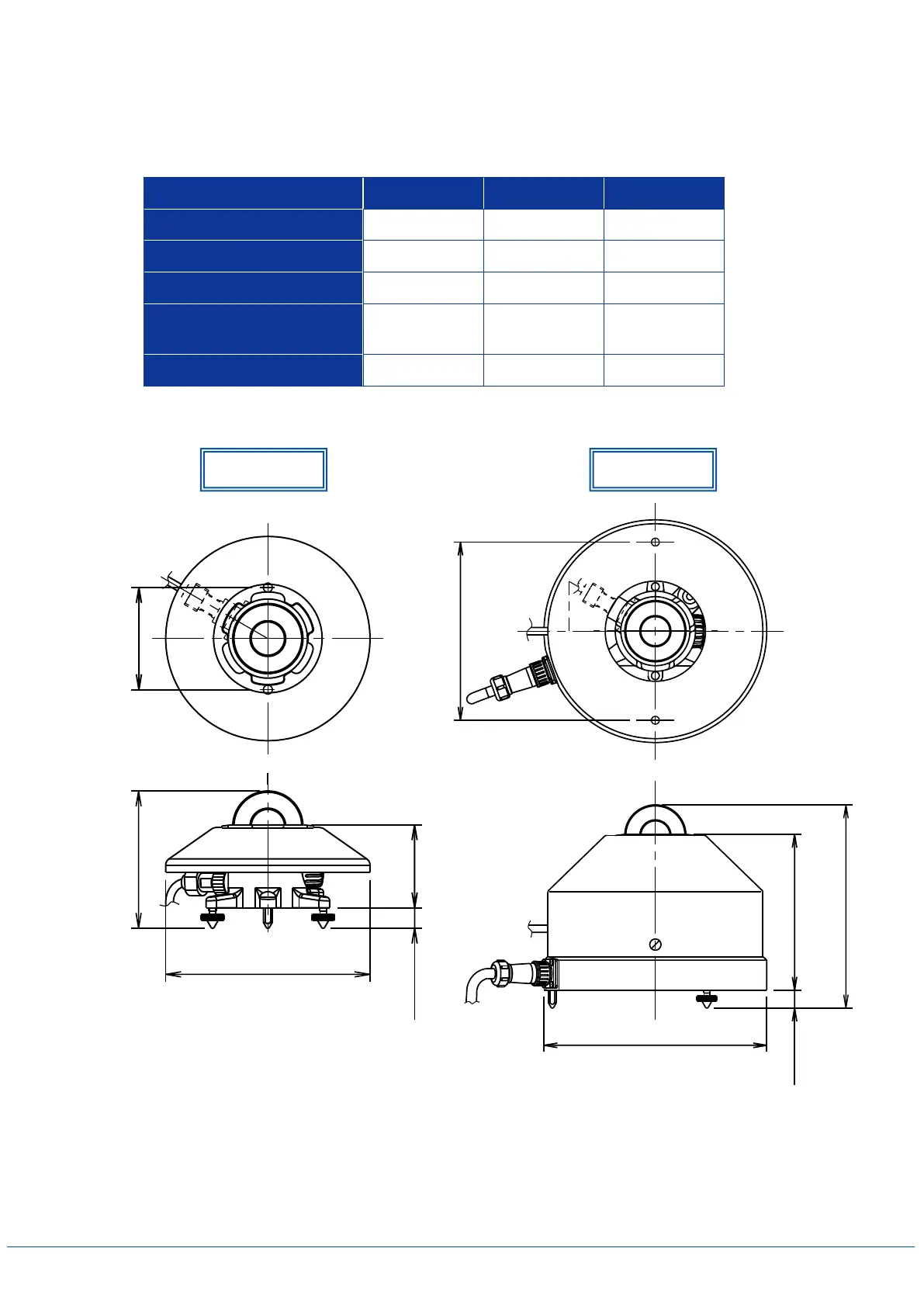

Figure 7-1. Outer Dimensions of MS-802/402/802F/402F
MS-802/402
D
C
B
E
A
MS-802F/402F
A
D
C
B
E
