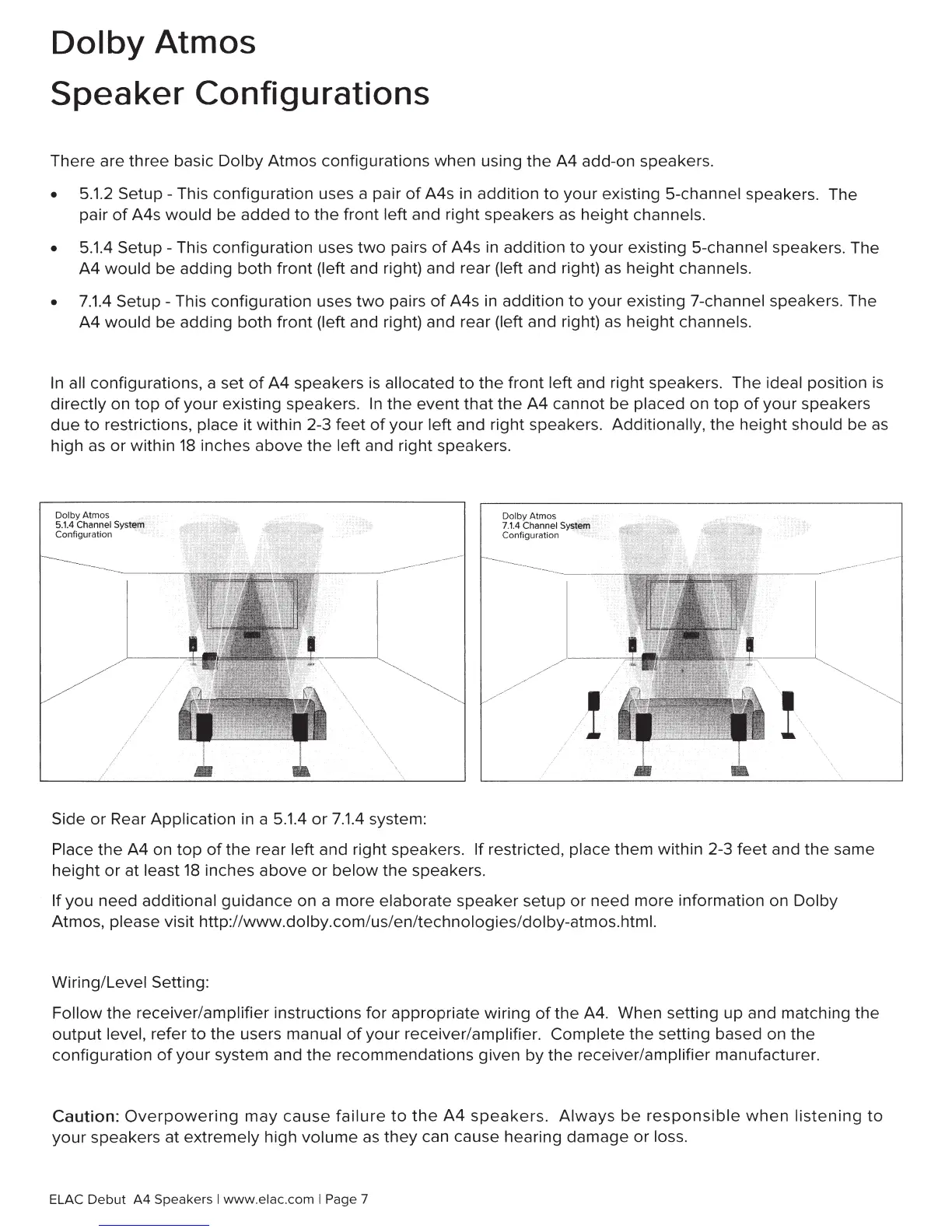

Dolby Atmos
Speaker Configurations
There are three basic Dolby Atmos configurations when using
the
A4 add-on speakers.
•
5.1.2
Setup-
This configuration uses a pair
of
A4s in addition
to
your
existing 5-channel speakers. The
pair
of
A4s
would
be
added
to
the
front left and right speakers
as
height
channels.
•
5.1.4
Setup-
This configuration uses
two
pairs
of
A4s
in
addition
to
your
existing 5-channel speakers. The
A4
would
be
adding both
front
{left and right) and rear (left and right) as height channels.
•
7.1.4
Setup-
This
conf
iguration uses
two
pairs
of
A4s in addition
to
your
existing 7-channel speakers. The
A4
would
be
adding both
front
(left and right) and rear (left and right)
as
height channels.
In all configurations, a set
of
A4
speakers is allocated
to
the
front
left and right speakers. The ideal position
is
directly on
top
of
your
existing speakers.
In
the
event
that
the
A4
cannot
be
placed on
top
of
your speakers
due
to
restrictions, place it within 2-3
feet
of
your
left and right speakers. Additionally,
the
height should
be
as
high
as
or
within
18
inches
above
the
left and right speakers.
Dolby
Atmos
5.1.4 Channel
Syste\J1
:;
:
·,
Conf1gurat1on
,..
I
Side
or
Rear Application in a 5.
1.4
or
7.
1.4
system:
Dolby Atmos
7.1.4
Channel
Sys.,
rq
• ·
Conf
igur
at
i
on
~
:
...
...
'
~
·
if;~;
-;
;
:
;
:
;;;.
~:~:
.:
~
:
~
;
:
;;
:
'
llil
!
1f
i
J!o
•
~
'<
'
o'
•
-: . :
~
·
·
..
' .
..
~
..
,
Place the
A4
on
top
of
the
rear left and right speakers.
If
restricted, place them within 2-3
feet
and
the
same
height
or at least
18
inches
above
or
below
the
speakers.
If
you need additional gui
dance
on a more elaborate speaker setup
or
need
more information on Dolby
Atmos, please visit
http://www.dolby
.com/us/en/technologies/dolby-atmos.html.
Wiring/Level Setting:
Follow
the
receiver/amplifier instructions
for
appropriate wiring
of
the
A4
. When setting
up
and matching
the
output
level, refer
to
the
users manual
of
your
receiver/amplifier. Complete
the
setting based on
the
configuration
of
your
system
and
the
recommendations given
by
the receiver/amplifier manufacturer.
Caution:
Overpowering
may
cause
fail
ure
to
the
A4
speakers.
Always
be
responsib
le
when
listening
to
your
speakers
at
ex
tremely
high volume
as
th
ey
can cause hearing damage
or
loss.
ELAC De
but
A4
Spe
aker
s I
www
.elac.c
om
I Page 7
