ELAC MicroSUB 2010.2 - Brief Description of Controls and Connections

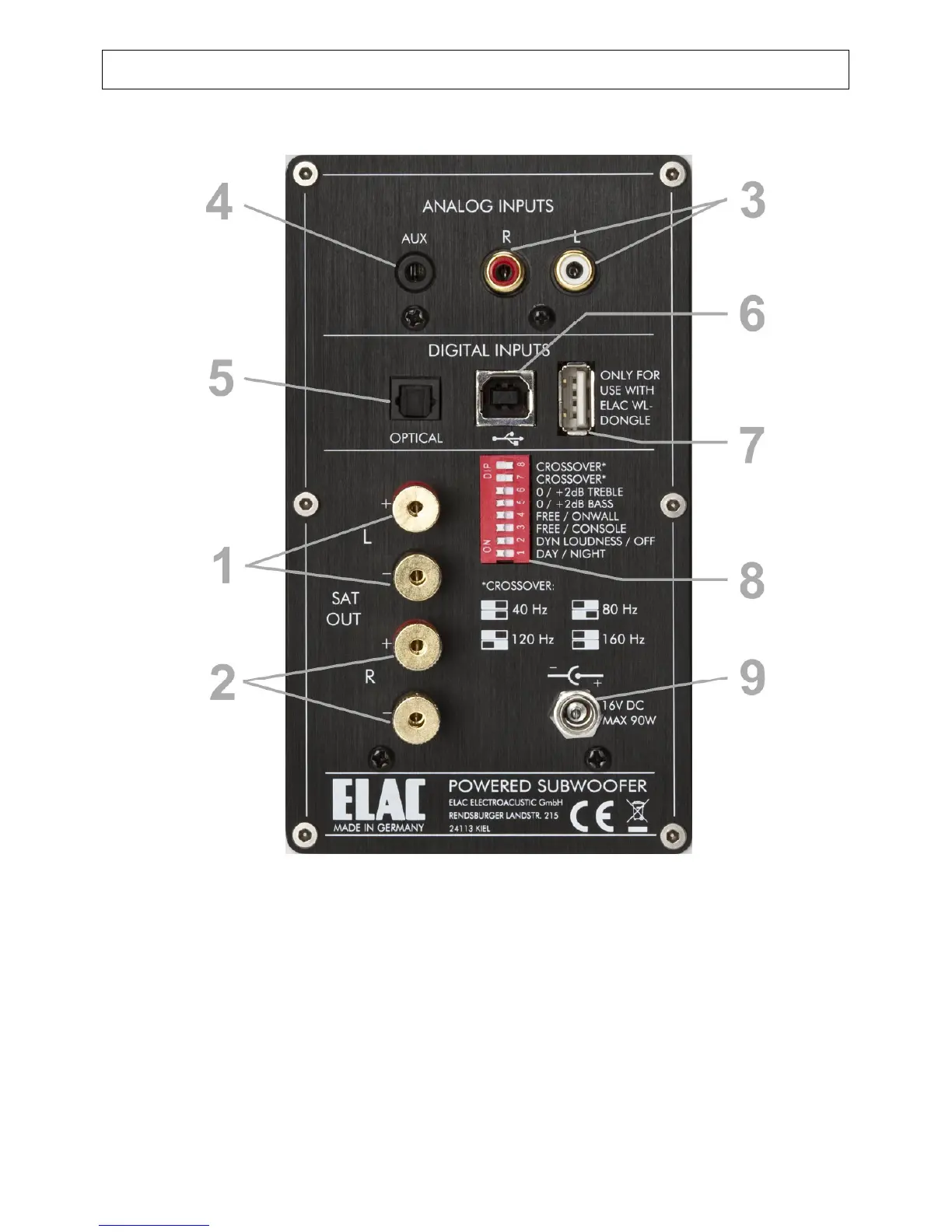

Brief description of controls and connections 21
1 Cable terminals for left satellite speaker
2 Cable terminals for right satellite speaker
3 RCA sockets L/R (e.g. for connecting a CD-Player)
4 AUX input (e.g. for connecting an mp3-player)
5 Optical input, digital, TOSLINK connector (e.g. for connecting a TV)
6 USB interface (type B) for connecting directly to a PC
7 USB connector (type A) for connecting an ELAC wireless receiver
8 DIP switches for adjusting several parameters (see chapter 25)
9 input socket for external power supply (16V-, max. 90W)
