obstructions are detected, patch the
pilot holes and try again in another
location.
4. Once you have determined the cavity is
free from obstructions, re-position the
cutout template and use a pencil to
lightly trace the perimeter of the tem-
plate. If installing an In-Wall speaker,
use a level to accurately position the
cutout before you trace its outline.
5. Use a keyhole saw, drywall router, or
razor knife to cut the openings.
IMPORTANT NOTE: The slim
design of M SERIES speaker
frame flanges require that
careful attention be paid to
not oversize the cut-out hole.
IN-CEILING SPEAKER
INSTALLATION:
Complete Assemblies
(with or without New
Construction Brackets)
1. Remove speaker grille
2. Locate the speaker wire
and pull through the wall
opening.
3. Connect the speaker wire.
BE SURE TO OBSERVE
CORRECT POLARITY!
4. Insert the speaker into the
opening In the ceiling and
CAREFULLY tighten each
of the four clamping
screws, alternating
diagonally between each screw
position to ensure proper fit and finish.

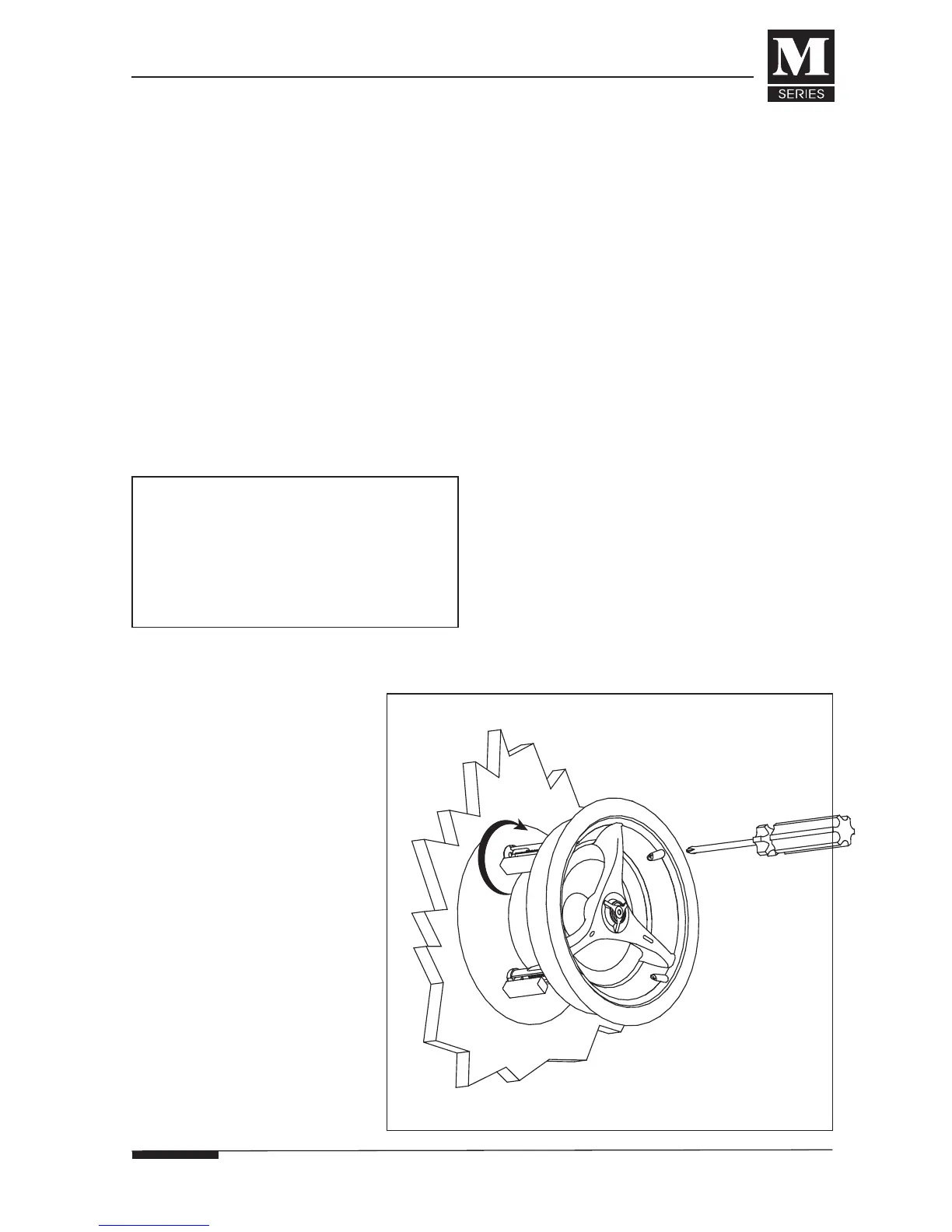

FIGURE 1
5. Replace the speaker grille.
IN-WALL SPEAKER INSTALLATION:
Complete Assemblies (with or
without New Construction Brackets)
1. Remove speaker grille.
2. Locate the speaker wire (and IR wire,
if applicable) and pull through the
wall opening.
FIGURE 1
CAUTION: DO NOT OVER-TIGHTEN
THE SCREWS!
If using a drill to tighten the clamping
screws, be sure to set the torque
setting very low. Setting the drill’s
torque too high may break the
mounting clamps, the wall surface,
and/or the speaker frame assembly.
!
