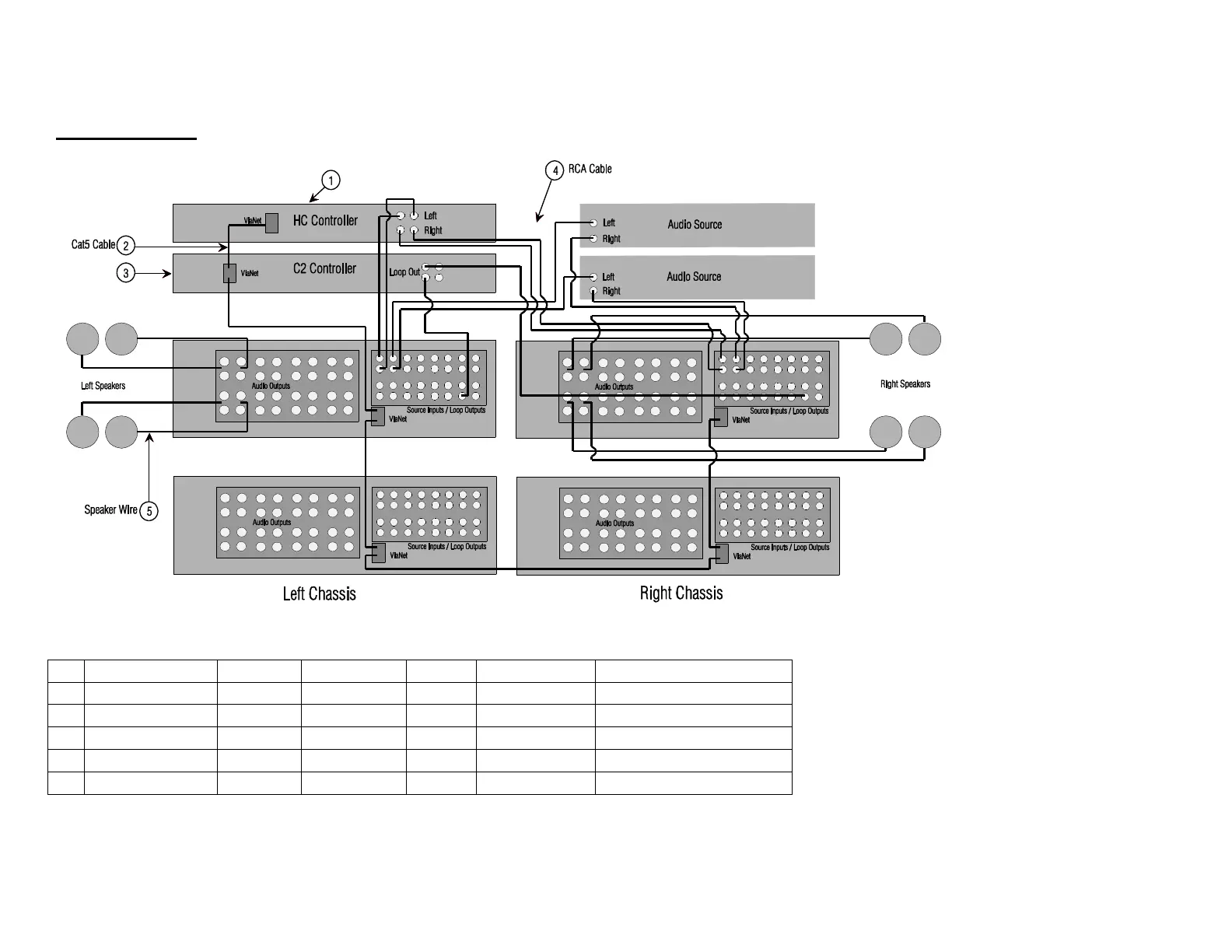

DUAL CHASSIS MODE
BILL OF MATERIALS FOR SINGLE/DUAL CHASSIS MODE
#
Manufacturer
Part Number
Protocol
Connector Type
Notes
1
ELAN
Various (e.g. HC12)6
VIA!Net
RJ45 Female
2
Installer
N/A
VIA!Net
RJ45 Male x RJ45 Male
Use ELAN VIA!Net Color Code
3
ELAN
C2
VIA!Net
RJ45 Female
If used
4
N/A
N/A
Analog
RCA x RCA
5
N/A
N/A
N/A
Various
