Elation 5R - 5 Fixture Overview

Platinum Spot 5R™
©Elation Professional, Los Angeles Ca. 11 www.ElationLighting.com

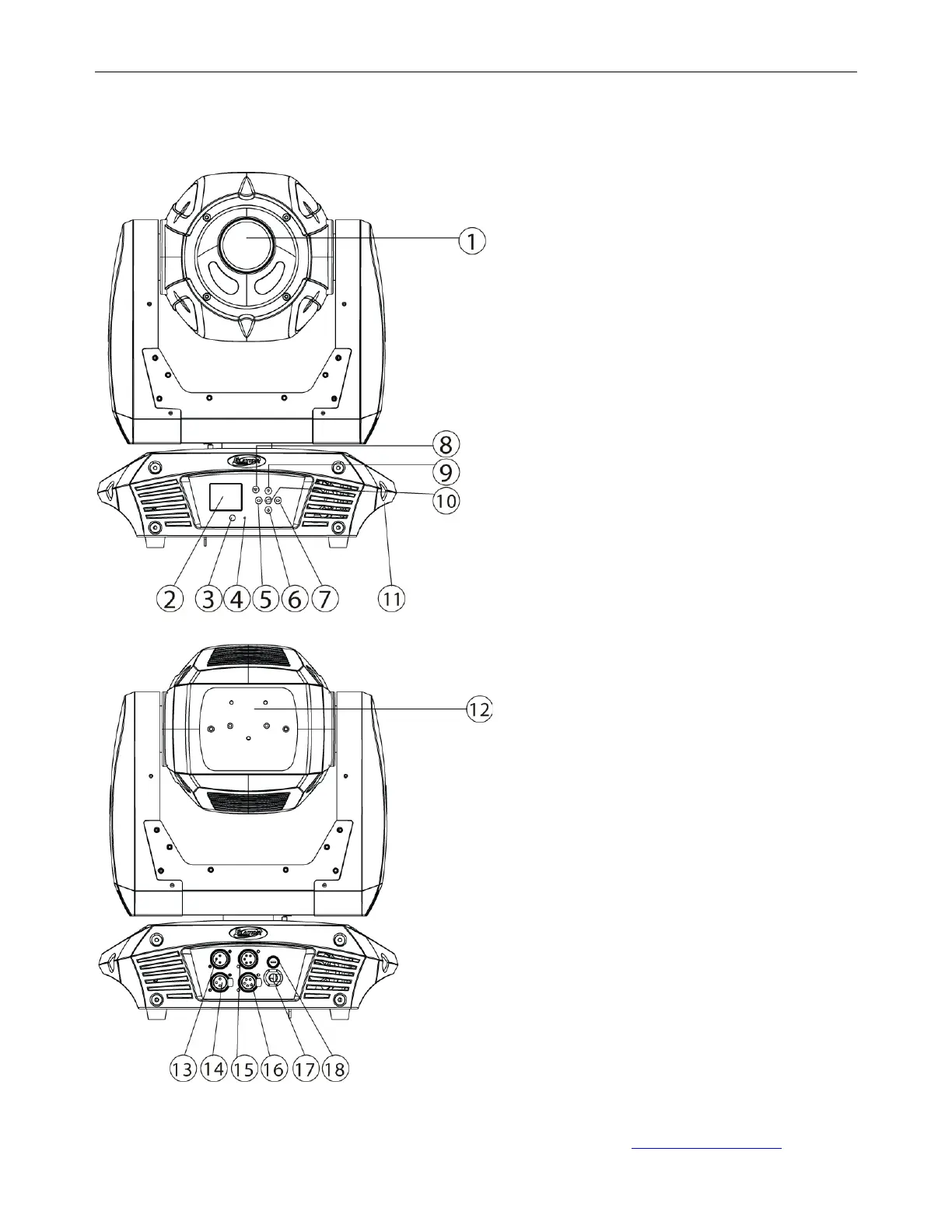

5. FIXTURE OVERVIEW
1: Lens
2: Display
3: DC Switch
4: Microphone
5: Left Button
6: Down Button
7: Right Button
8: Mode/Esc Button
9: Up Button
10: Enter Button
11: Handle
12: Lamp Access Panel
13: 3-Pin DMX in
14: 3-Pin DMX out
15: 5-Pin DMX in
16: 5-Pin DMX out
17: Power Cord
18: Fuse
