MODELS WITH REMOVABLE INNER
PANE OF GLASS (SOME MODELS
ONLY)
The oven door is fitted with no. 2 panes:
– no. 1 outside;
– no. 1 inner.
To clean the panes on both sides it is nec-
essary to remove the inner pane as follows:
REMOVING THE INNER PANE:

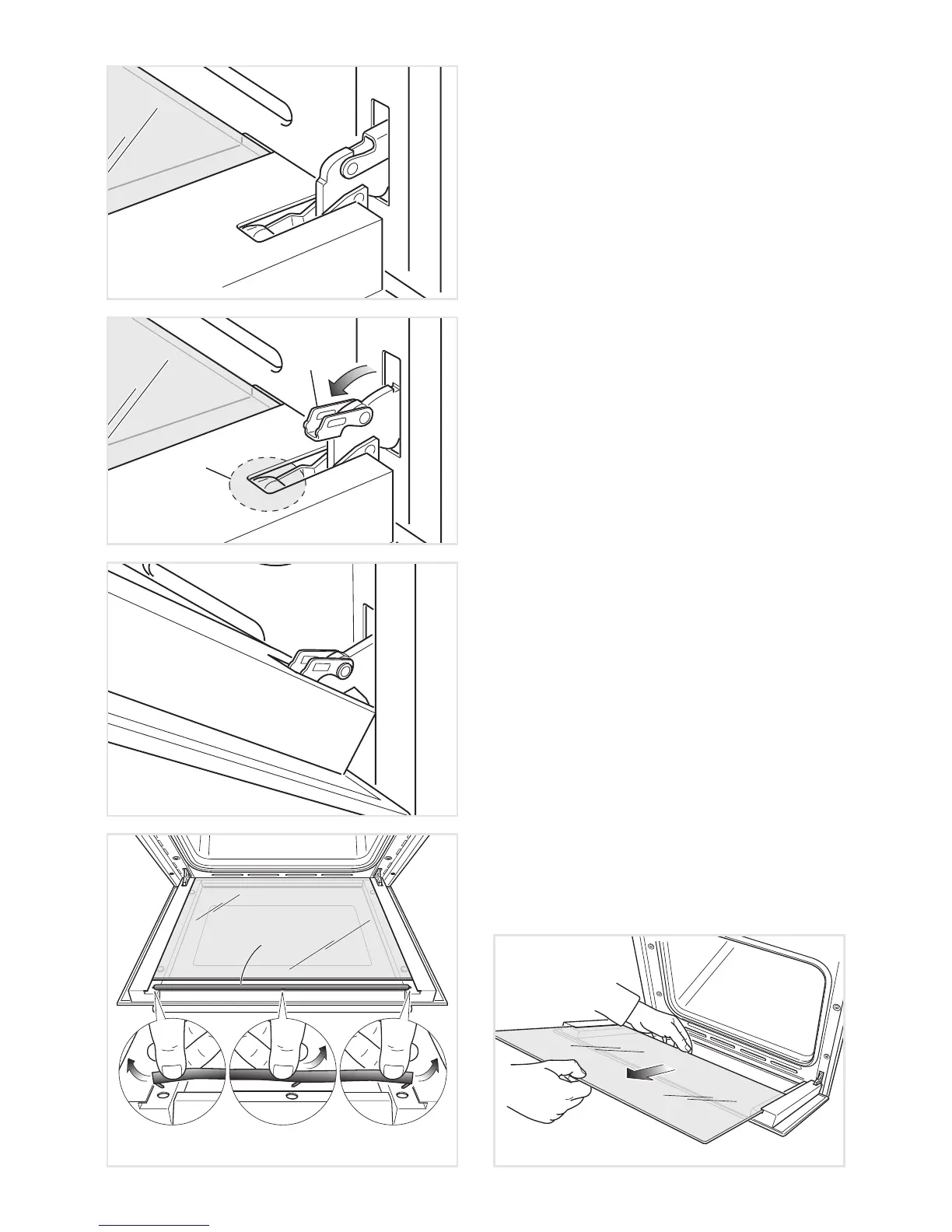

1. Lock the door open:
• Open the door to the full extent (fig.
2.16).
• Open the lever “A” completely on the
left and right hinges (fig. 2.17).
• Gently close the door (fig. 2.18) until left
and right hinge levers “A” are hooked
to part “B” of the door (fig. 2.17).
2. Remove the inner pane:
• Remove the seal “G” by unhooking
the no. 3 fixing hooks (fig. 2.19).
• Gently pull out the inner pane of glass
(fig. 2.20).
• Clean the glass with an appropriate
cleaner. Dry thoroughly, and place on
a soft surface.
Now you can also clean the inside of the
outer glass.
B
A
G
Fig. 2.16
Fig. 2.17
Fig. 2.18
Fig. 2.19 Fig. 2.20
