PRODUCT DESCRIPTION
The floor-standing water heating heat pump consists of a top
block containing the heat pump unit and the bottom part of the
with the storage tank. There is a control panel with a display on
the front part.

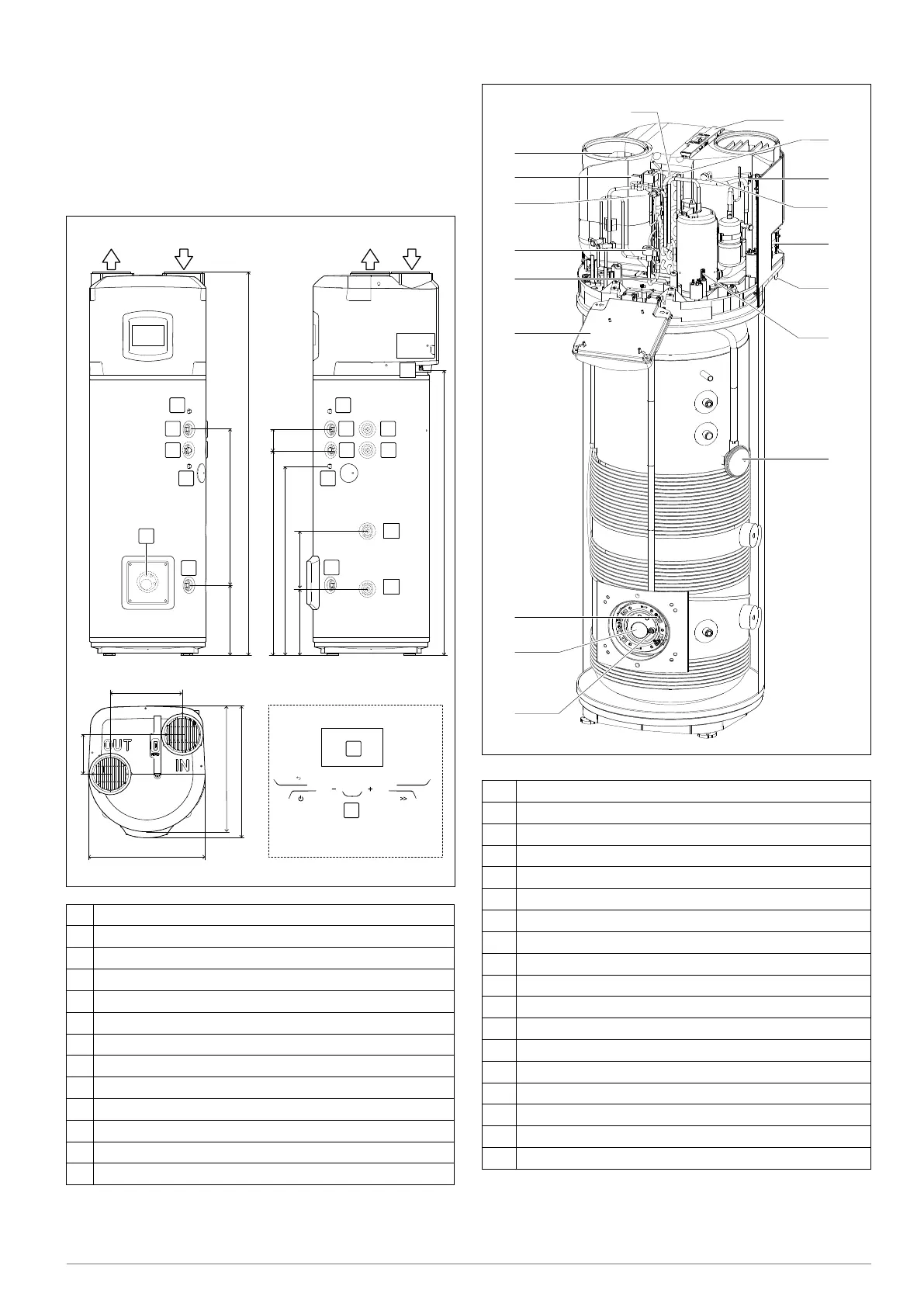

Dimensions
A Inlet cold water ¾” connection
B Outlet hot water ¾” connection
C Condensate drain connection with 14mm diameter
D Auxiliary circuit ¾” inlet pipe (SYS and TWIN)
E Auxiliary circuit ¾” outlet pipe (SYS and TWIN)
F Sheath for upper probe (S3) (SYS and TWIN)
G Auxiliary circuit ¾” inlet pipe (TWIN SYS)
H Auxiliary circuit ¾” outlet pipe (TWIN SYS)
I Sheath for upper probe (S4) (TWIN SYS)
L Recirculation ¾” pipe (SYS and TWIN SYS)
M Sheath for bottom probe (S2) (SYS and TWIN SYS)
N Display
O Touch buttons.
MODE MENU
SET
376 550 (200L) - 810 (250L)
1737 (200L) - 1997 (250L)
1220 (200L) - 1480 (250L)
371 290
980
1074 113
204
680
650
600
371
OUT IN OUT IN
A
A
M
FF
BB
L
G
HL
II
D
C
E
O
N
12
13
14
15
16
11
9
8
7
6
5
4
3
2
1
10
17
18
1 Fan
2 Hot gas valve
3 Safety pressure switch
4 Electronic expansion valve
5 Evaporator inlet NTC temperature probe
6 Electronic box
7 Bottom NTC temperature probe (heating element zone)
8 Electric heating element
9 Impressed current anode
10 Top NTC temperature probe (hot water)
11 Hermetic rotary compressor
12 Condensate drain pipe
13 Lateral connections
14 Low pressure outlet
15 Air NTC temperature probe
16 Compressor suction NTC temperature probe
17 Evaporator filter
18 Evaporator
Main components
