elco LOGON SOL plus - Sensor Connection Diagram

6

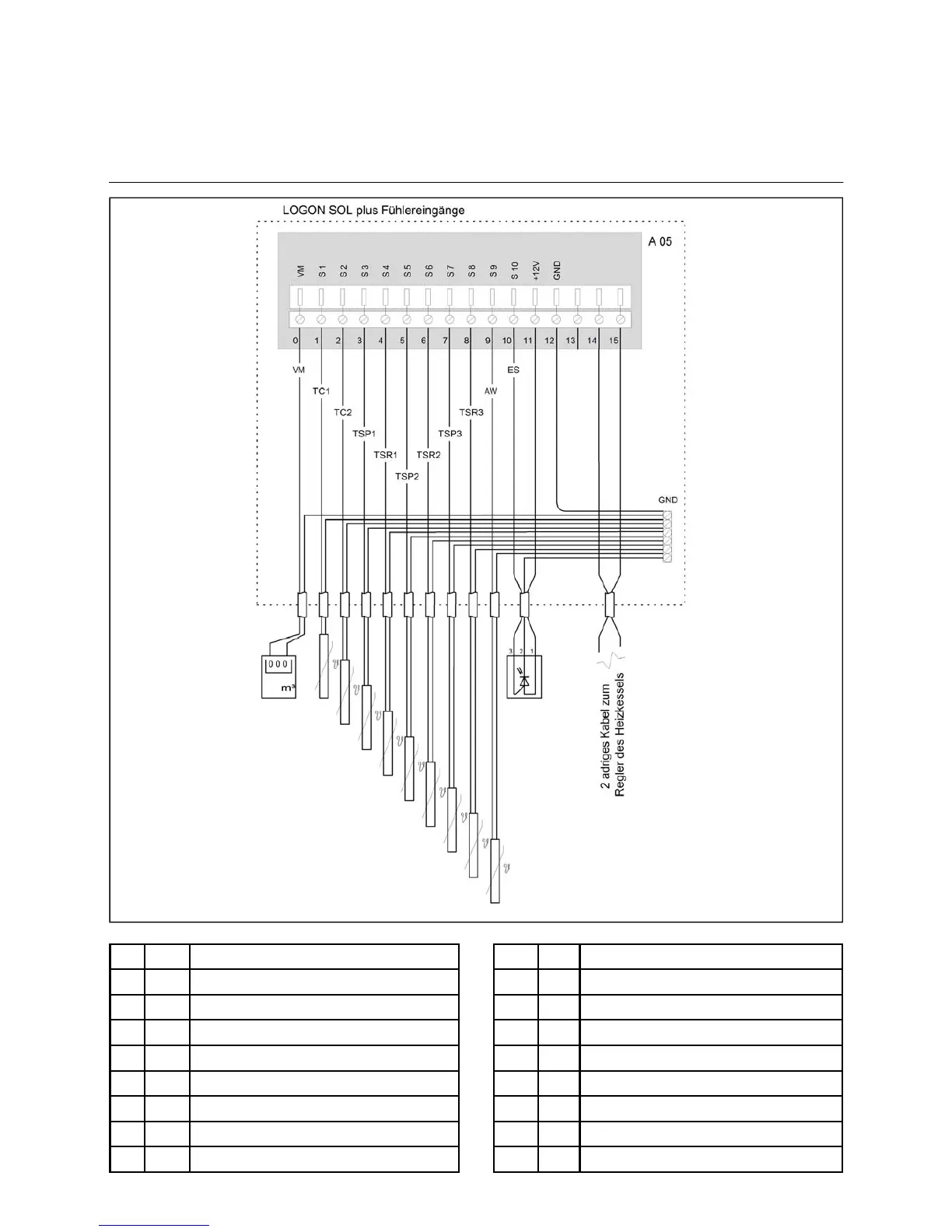

Wiring diagram
LOGON SOL plus
Sensor assignment
VM
volume flow sensor
S1 TC1
collector temperature, collector panel 1
S2 TC2
collector temperature, collector panel 2
S3 TSP1
upper storage tank temperature, storage tank 1
S4 TSR1
lower storage tank temperature, storage tank 1
S5 TSP2
upper storage tank temperature, storage tank 2
S6 TSR2
lower storage tank temperature, storage tank 2
S7 TSP3
upper storage tank temperature, storage tank 3
S8 TSR3
lower storage tank temperature, storage tank 3
S9 AW
S10 ES
GND
common terminal
application dependent
radiation sensor
