HOW TO USE YOUR MOTORHOME’S EQUIPMENT

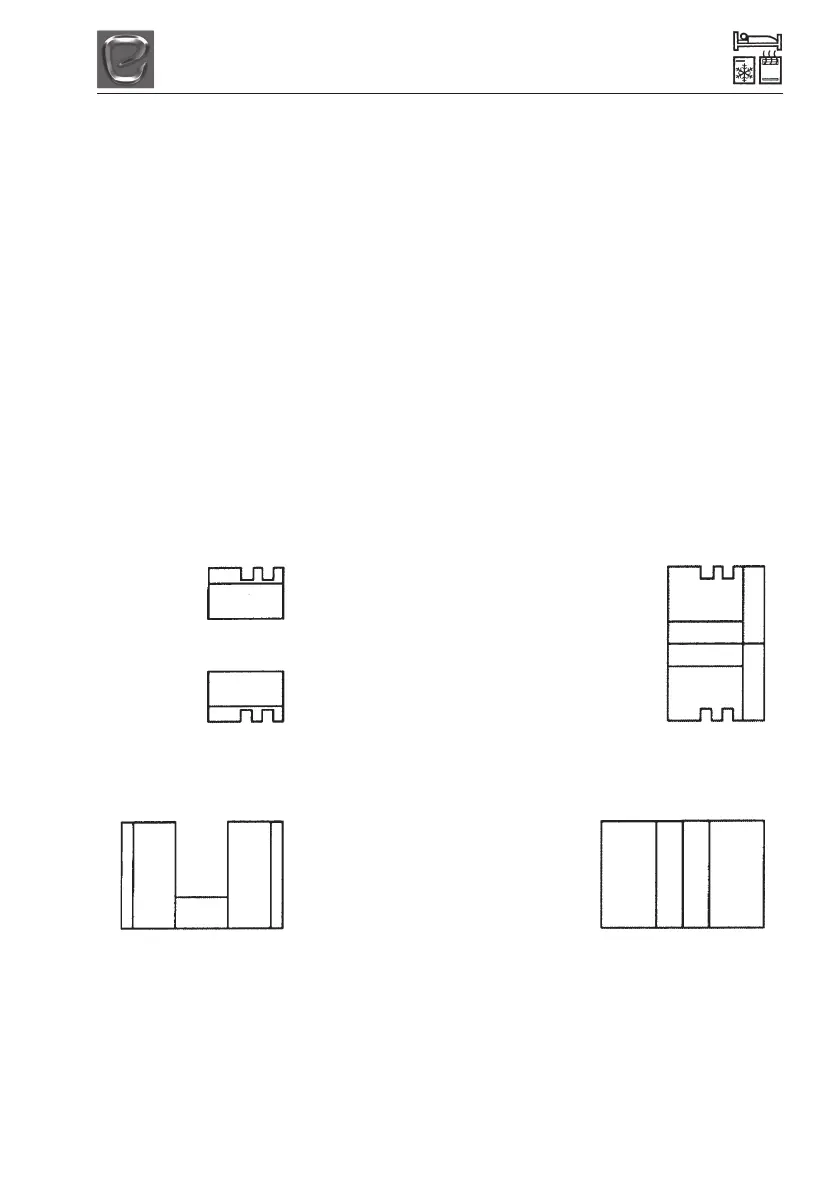

HOW TO MAKE UP YOUR BEDS
180
FRONT DINETTE
Step 1 - Remove all cushions from the front and rear facing seats.
Step 2 - Pull out the bed slats located between 1 and 2 and fully extend as shown.
Step 3 - Place cushions as shown in the diagram.
REAR BED
Step 1 - Remove the centre cushion (7).
Step 2 - Slide out the bed slats from under the centre seat.
Step 3 - Place cushions on beds as shown.
NIGHT LAYOUT
DAY LAYOUT
1 - REAR FACING BASE CUSHION
2 - FORWARD FACING BASE CUSHION
3 - REAR FACING BACKREST CUSHION
4 - FORWARD FACING BACKREST CUSHION
10 - MAKE UP CUSHIONS 2 @ 955 x 286
11 - MAKE UP CUSHIONS 2 @ 986 x 275
180
1
10
11
5 - NEARSIDE REAR BASE CUSHION
6 - OFFSIDE REAR BASE CUSHION
7 - REAR BASE CUSHION
8 - NEARSIDE BACKREST CUSHION
9 - OFFSIDE BACKREST CUSHION
10
2
11
2
4
1
3
5896
69
85
7
N/SIDE
O/SIDE
N/SIDEO/SIDE
REAR BED
FRONT DINETTE
