Appendix D. K1 Assembly Photographs

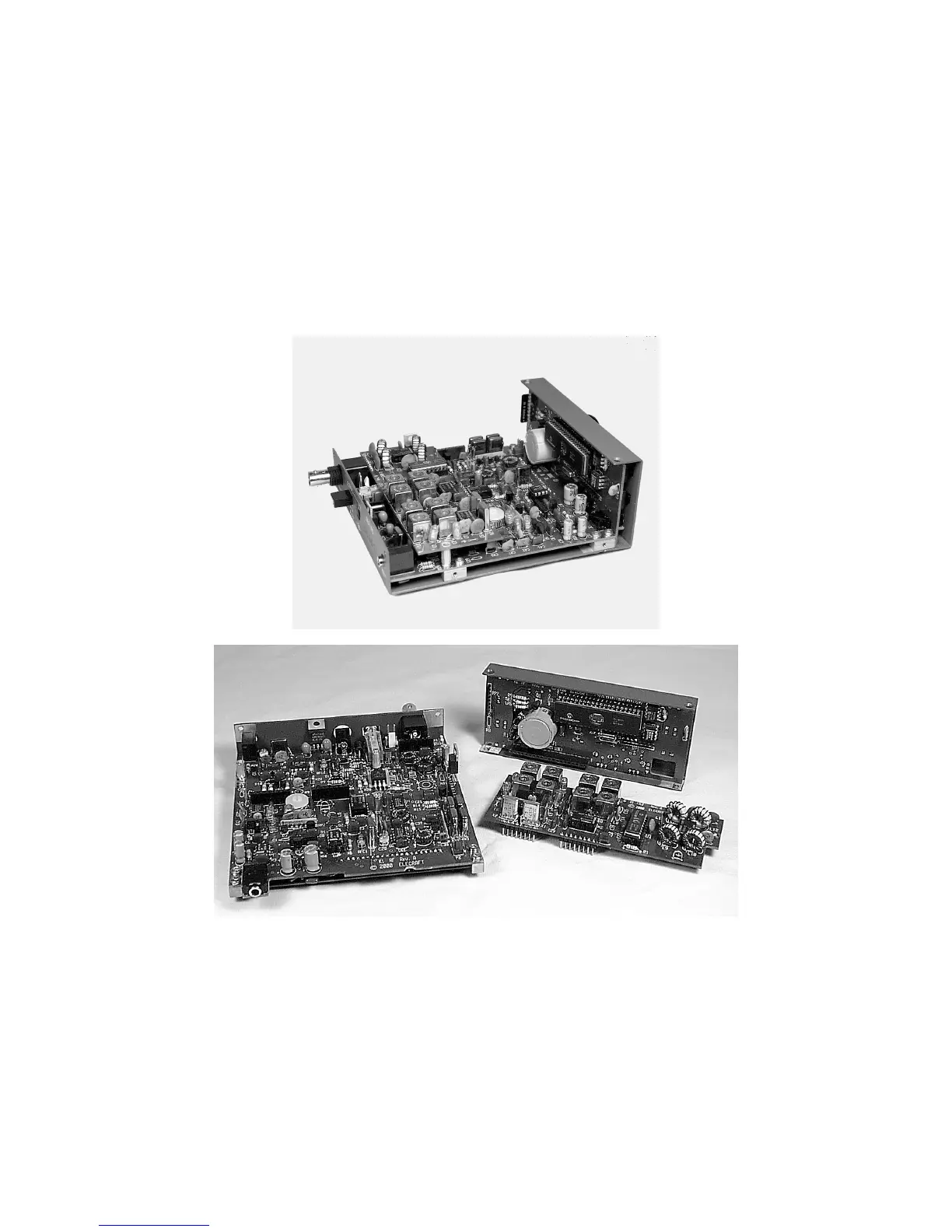

Completed K1 with
top cover and side panels
removed; Front Panel and
2-band Filter board shown
Plugged into the RF board.
Front Panel
assembly
2-Band Filter Board
RF board with
b
ottom cover
Attached
(headphone jack is
visible at left)
