ELECRAFT K2 - Page 123

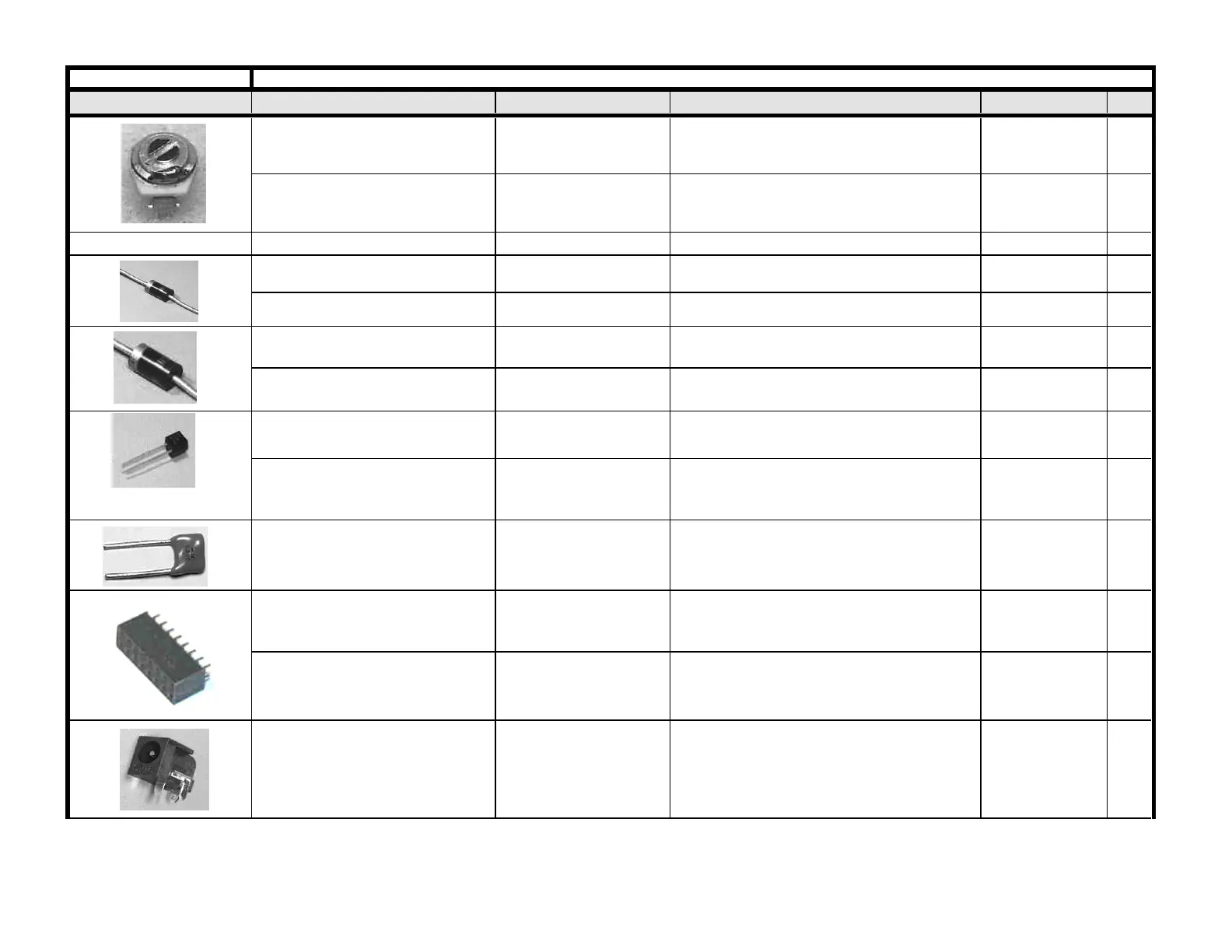

Appendix A K2 RF Board Parts List (p/n E850001A and E850001B)
PICTURE Designators Value Description Part Number
QTY
C44, C46, C32, C34 var,5-30pF
ceramic trimmer (see below to tell from 50
pF) E540001
4
C21, C23 var,8-50pF
ceramic trimmer (red mark or bagged
separately) E540000
2
D9 1N5711 orange glass body E560004
1
D1, D2, D3, D4, D5, D6, D7, D36 1N4007 large black body, silver band E560001
8
D8, D11, D13, D18 1N4148 clear or blue glass body E560002
4
D10 95SQ015
ultra-low-drop shottky diode, 9A, very large
black body E560009
1
D12
SB530 (alternate:
1N5821) shottky diode, 5A, very large black body E560003
1
D16, D23, D24, D25, D26, D39
(also D19-D20--see description) MV209
TO-92, 2 leads
D19-D20 supplied with K60XV option E560006
6
D17, D21, D22, D29, D30, D31,
D32, D33, D34, D37, D38 1SV149 TO-92, 2 leads E560005
11
F1 RGE300
Resettable fuse; (YELLOW) "G300" Looks
like a larger monolithic cap. E980018
1
J8 10x2,female socket 10 x 2 female socket E620038
1
J7 18x2,female socket 18 x 2 female socket E620039
1
J3 2.1mm jack 2.1 mm DC barrel connector E620026
1
Page 3 RF
