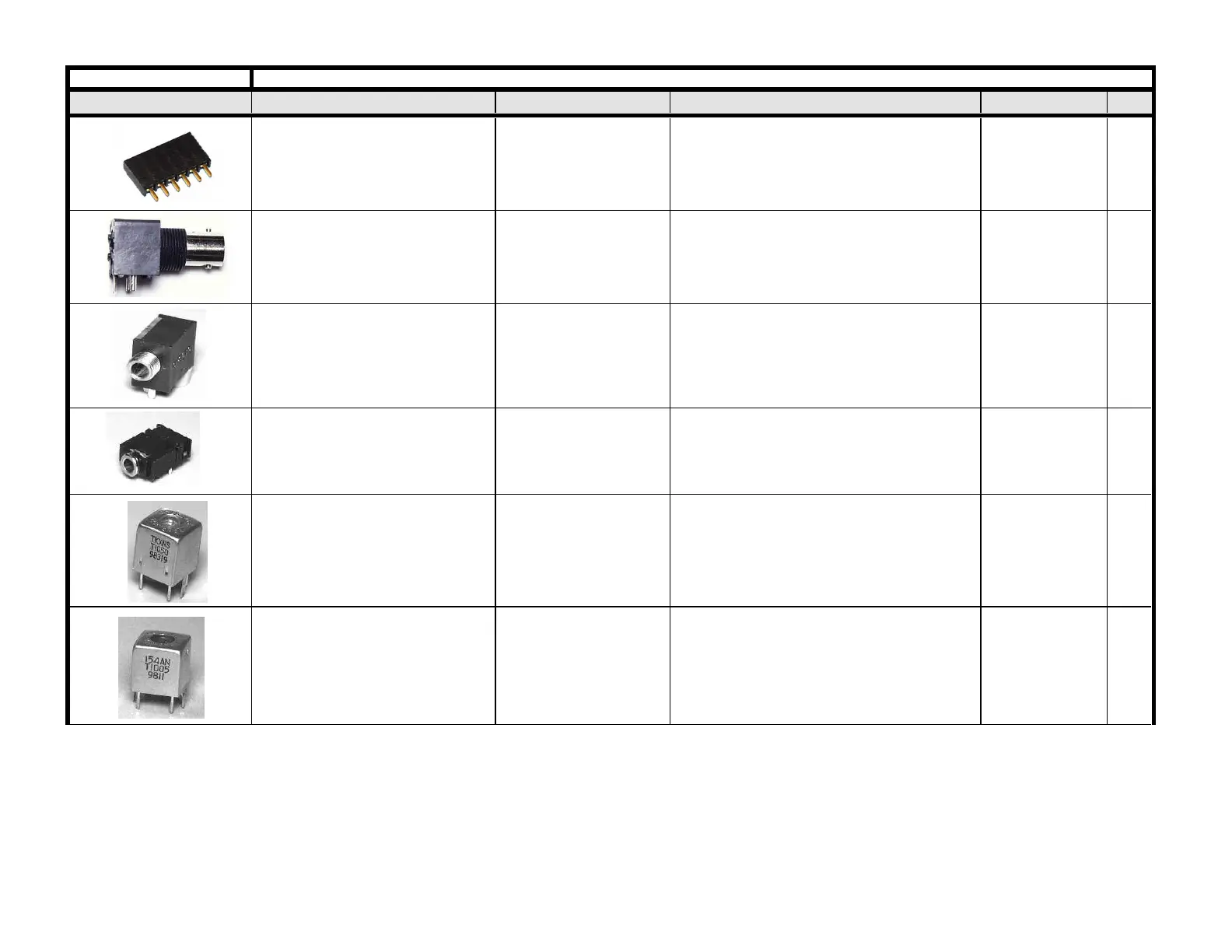

Appendix A K2 RF Board Parts List (p/n E850001A and E850001B)
PICTURE Designators Value Description Part Number
QTY
J6 6p,female socket 6 x 1 female socket E620037
1
J4 BNC Antenna connector E620020
1
J1 SJ-373
Keyer Jack, Threaded, Stereo, Vertical
orientation E620027
1
J2 Stereo+iso sw. Headphone jack. Horizontal Orientation E620028
1
L10, L11, L12, L13
Variable Ind, 1µh
"T1050Z"
TOKO, 15/17m BPF, 10/12m BPF. Small
adjustment slot E690002
4
L30, L1, L2, L3, L4, L8, L9, L34
Variable Ind, 4.7µH
"T1005Z"
TOKO, VCO, IF, 40m BPF, 80/160m BPF,
20/30m BPF. Large adjustment slot E690001
8
