ELECRAFT K2 - Page 126

Appendix A K2 RF Board Parts List (p/n E850001A and E850001B)

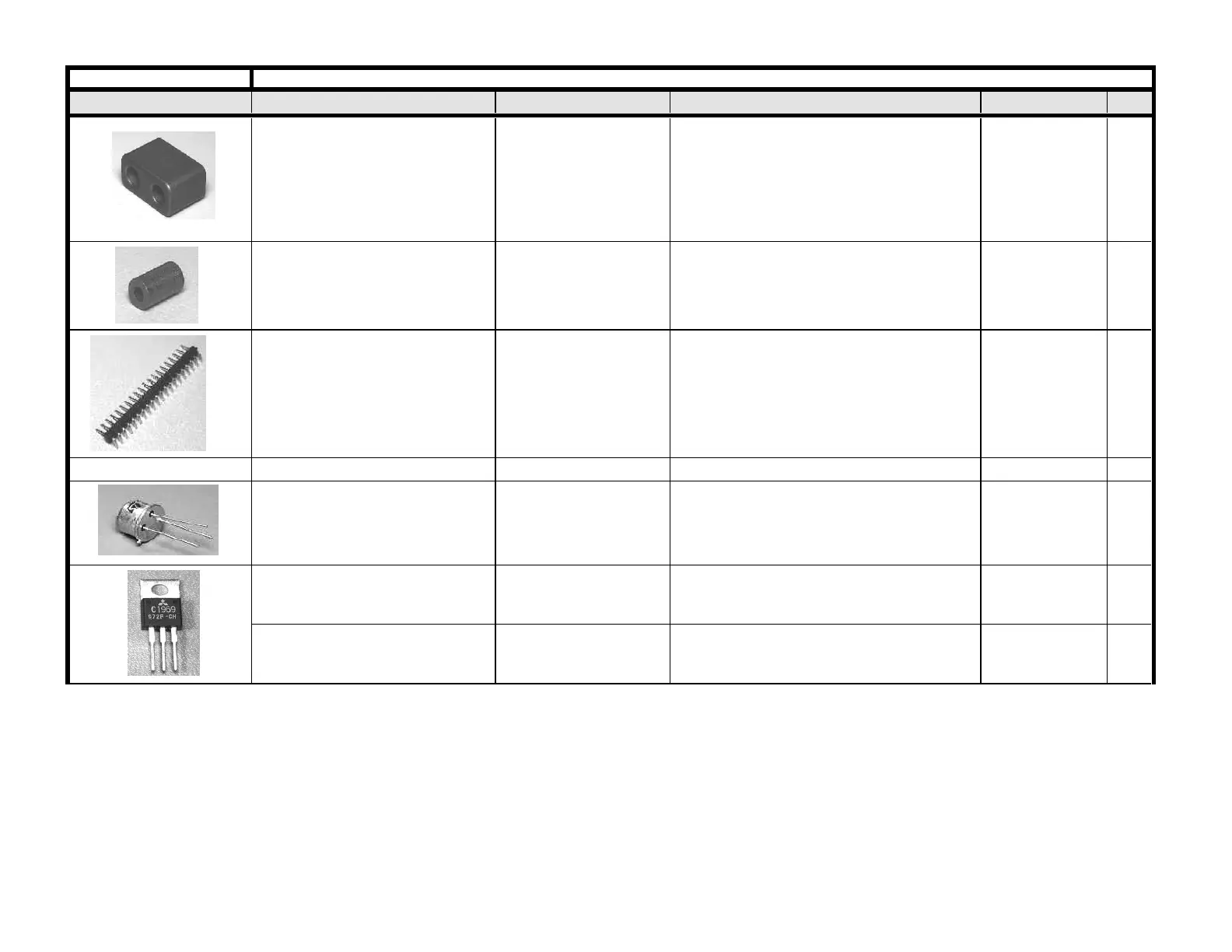

PICTURE Designators Value Description Part Number
QTY
T4 Binocular core 2:3:1:1, Balun Core; Square, Two Holes E690011
1
Z1, Z2 Ferrite Bead
2 (GRAY) ferrite beads ea. on bare wire
(see text) E980029
4
P1 20 x 1 ,male, RA 20 pin male, right angle. To Front Panel, J1 E620029
1
P5 2p,male 2 pin male. For Speaker; Locking Ramp E620024
1
Q5, Q21, Q22 2N5109 Pre-Amp, Post Amp, Pre-Driver E580013
3
Q7, Q8 2SC1969 Push-Pull Finals E580008
2
Q6 2SC2166 Driver E580007
1
Page 6 RF
