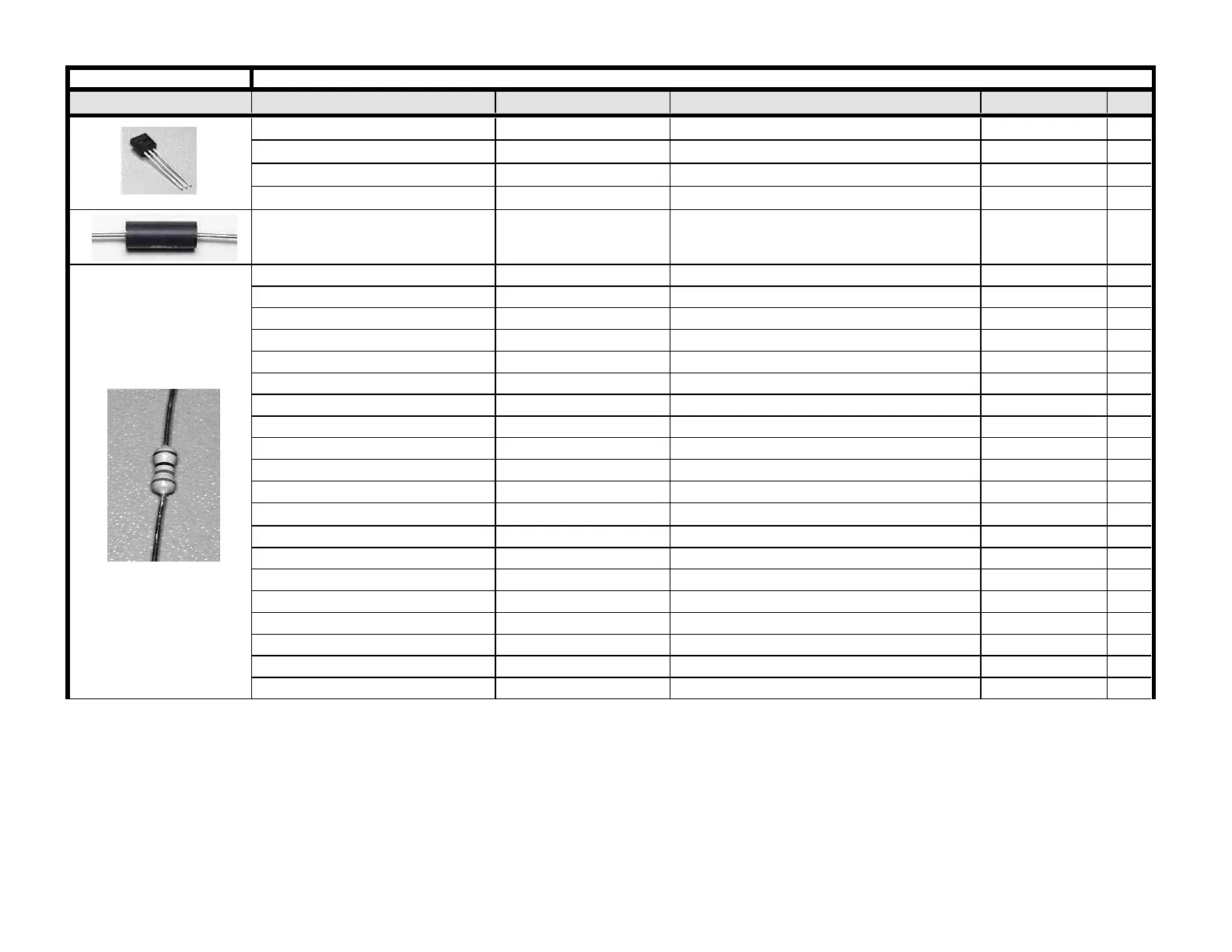

Appendix A K2 RF Board Parts List (p/n E850001A and E850001B)
PICTURE Designators Value Description Part Number
QTY
Q10, Q12, Q17, Q20, Q23 2N7000 TO-92 E580002
5
Q18, Q19, Q24 J310 TO-92 E580012
3
Q11, Q13, Q16, Q25 PN2222A TO-92 E580001
4
Q2 ZVN4424A Slightly Thinner TO-92 Style E580005
1
R115 0.05 ohm 1%, 3W Current Sense, (BLACK) E500050
1
R116 5.1 megohm 5%, 1/8W (grn-brn-brn); for L33--see text E500086
1
R68 226 1%, 1/4W (BLUE) E500033T
1
R67 1.5k 1%, 1/4W (BLUE) E500034T
1
R50 1.5 ohm, 1/2 watt (TAN) E500025T
1
R42, R53, R54, R83 4.7 ohm (TAN) E500062T
4
R76 10 (TAN) E500054T
1
R82, R84 18 (TAN) E500061T
2
R43, R78, R112 22 (TAN) E500028T
3
R15, R55, R56, R92, R97 33 (TAN) E500036T
5
R45, R47, R74 47 (TAN) E500019T
3
R7 68 (TAN) E500058T
1
R35, R36, R94, R113 82 (TAN) E500038T
4
R6, R8, R60, R64, R89 100 (TAN) E500010T
5
R30, R48, R49, R61 120 (TAN) E500022T
4
R85 150 (TAN) E500011T
1
R58 180 ohm, 1/2 watt (TAN) E500049T
1
R1, R2, R63, R77 220 (TAN) E500002T
4
R20, R46, R98, R99 270 (TAN) E500039T
4
R10, R40, R72, R88, R90 470 (TAN) E500003T
5
R11, R12, R41 560 (TAN) E500046T
3
