ELECRAFT K2 - Page 128

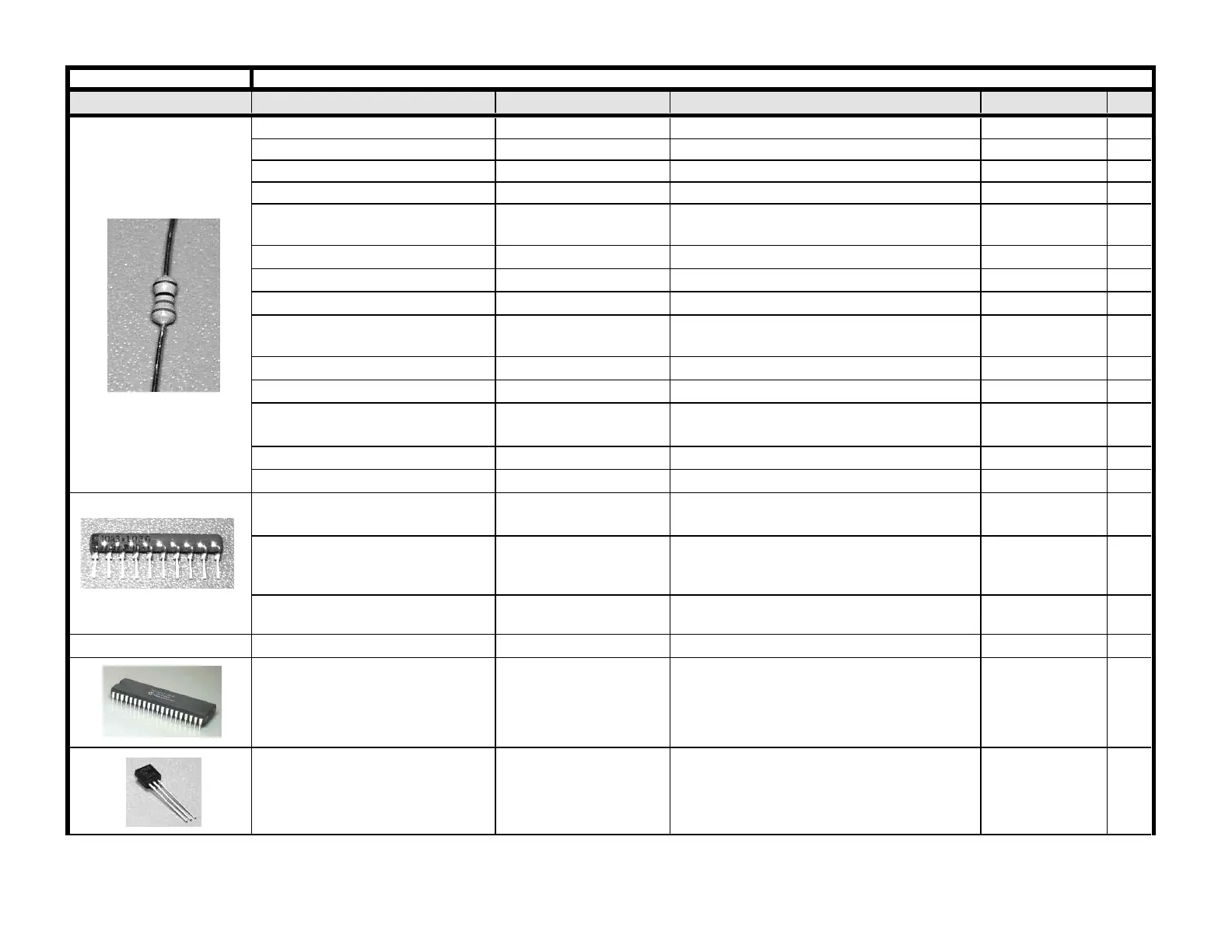

Appendix A K2 RF Board Parts List (p/n E850001A and E850001B)
PICTURE Designators Value Description Part Number
QTY
R75, R80 680 (TAN) E500040T
2
R91, R93, R100 820 (TAN) E500001T
3
R38, R39 1K (TAN) E500013T
2
R79, R81 1.8K (TAN) E500004T
2
R5, R19, R24, R25, R34, R44,
R62, R66, R73, R95, R96 2.7K (TAN) E500005T
11
R114 3.9K (TAN) E500009T
1
R59 4.7K (TAN) E500047T
1
R110, R111 5.6K (TAN) E500007T
2
R13, R14, R29, R31, R32, R65,
R101 10K (TAN) E500015T
7
R33 15K (TAN) E500060T
1
R28 27K (TAN) E500056T
1
R9, R16, R17, R21, R37, R69,
R107 100K (TAN) E500006T
7
R18 1M (TAN) E500024T
1
R22 3.3M (TAN) E500021T
1
RP4,RP5
100K,3R ISO; "6A3-
104G" SIP; resistor pack, 6 pins; ALT: "77063104" E510017
2
RP6
100K,4R ISO; "8A3-
104G"
SIP; resistor pack, 8 pins; ALT: "77083104"
or "B104G" E510018
1
RP2, RP3
10K,4R ISO; "8A3-
103G" SIP; resistor pack, 8 pins; ALT: "77083103" E510005
2
TP1, TP2, TP3 test point, female VFO, BFO, PLL REF test points E620036
3
U1
16C72
Alt: 16F872
Relay Driver PIC; I/O Controller;
programmed E610004
1
U2 78L06AWC TO-92, 6v Reg. For relays E600001
1
Page 8 RF
