ELECRAFT 37
i
When working with the side panels in the following steps,
place a soft cloth on your work surface to protect the paint.
Locate the two side panels. Remove any masking tape from
the panels using the same technique described in the Front Panel
section, taking care not to scratch the outer surfaces.

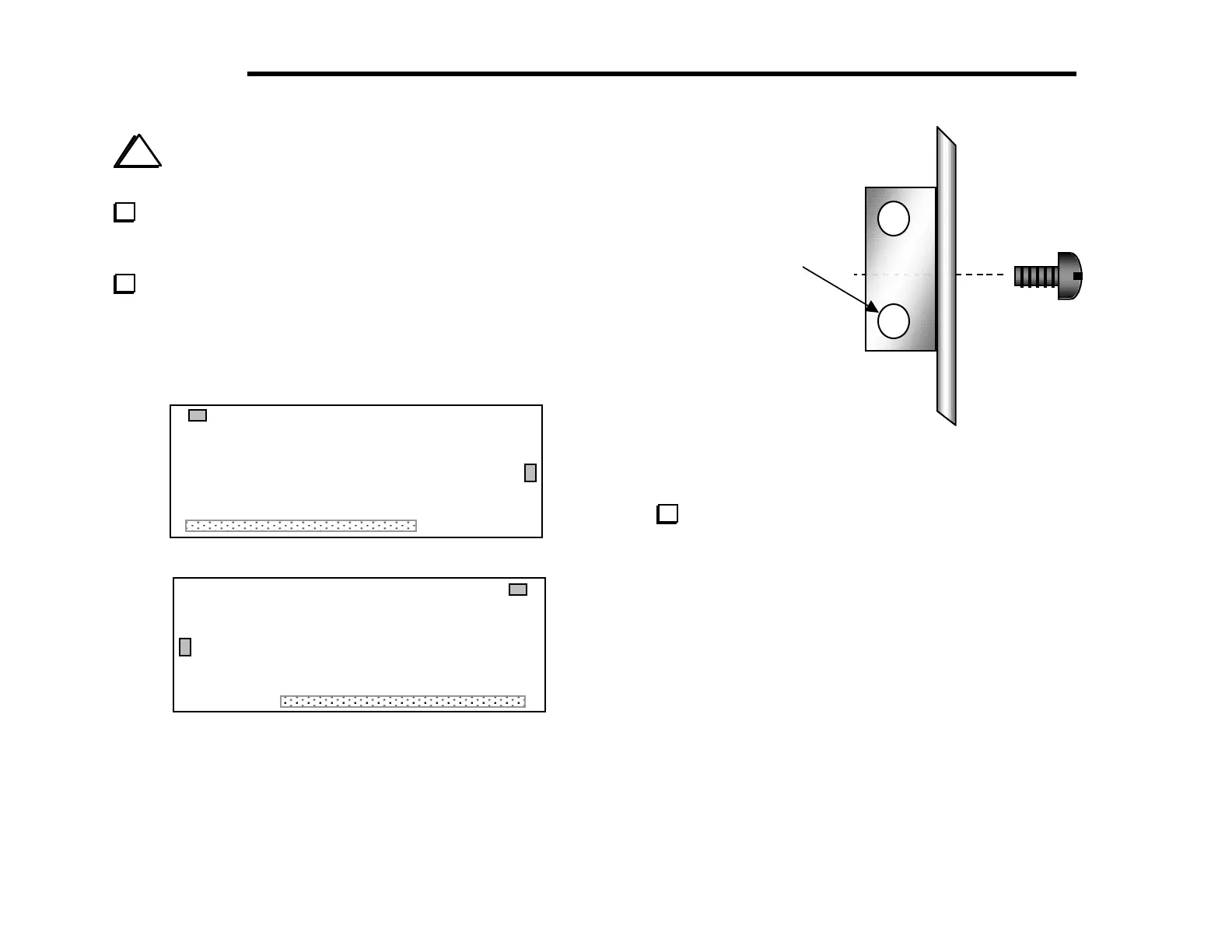

Arrange the two panels as shown in Figure 6-6, and verify that
they are mirror images of each other. The 2-D fasteners to be
attached in the next step go on the inside surface, which has bare
aluminum areas that were masked during painting. (Note: the actual
size and shape of masked areas may vary.)
Left Side Panel
(inside surface)
Right Side Panel
(inside surface)
Figure 6-6
Holes offset
away from
anel
Figure 6-7
Install two 2-D fasteners on each side panel at the locations
indicated by small rectangles in Figure 6-6. Use one chassis screw to
hold each fastener to the side panel (see Figure 6-7). The two
unused holes on each fastener must be offset away from the side
panel.
