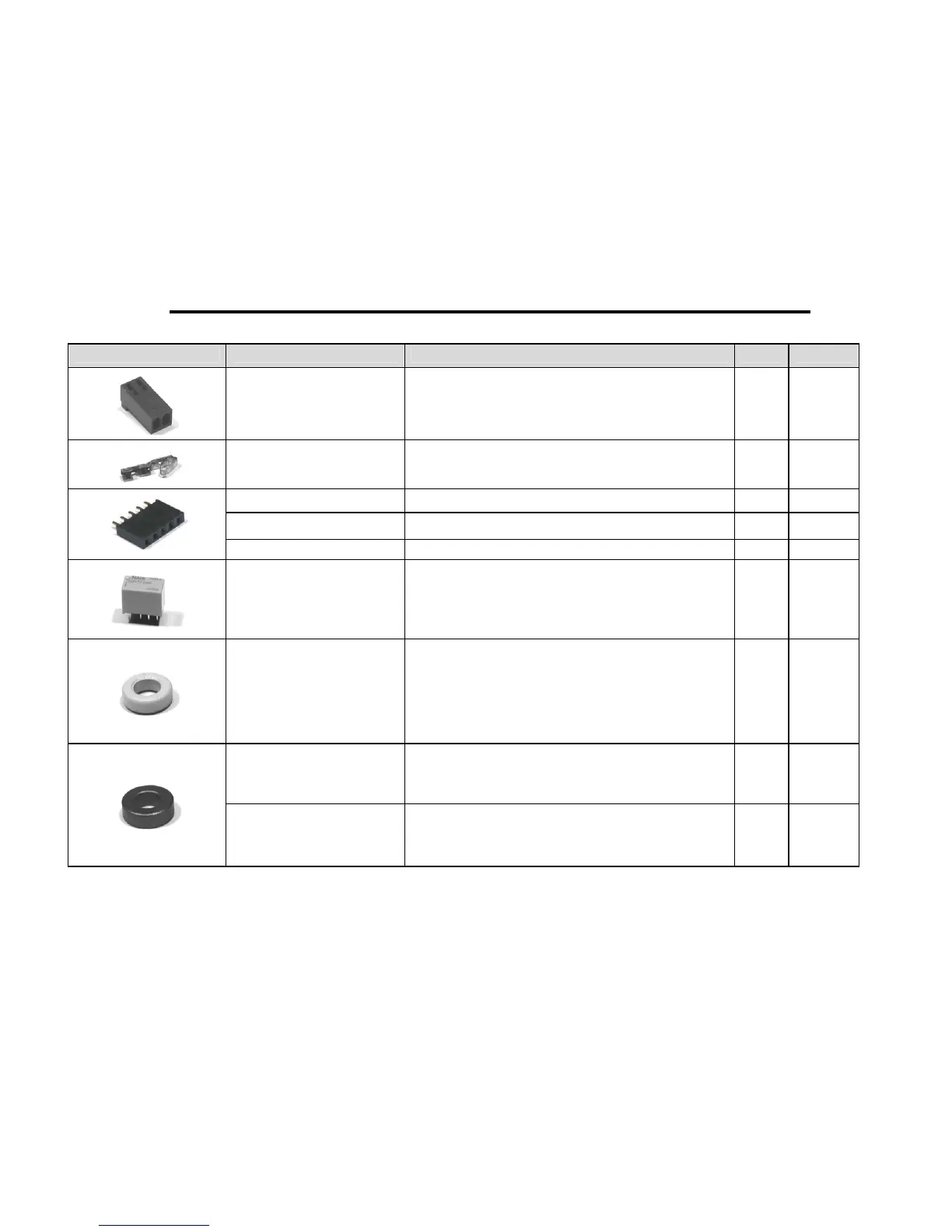

Photo Reference Designator Description Quan. Part No.
J5
Conn., 2-pin female housing, 0.1" spcg, for internal
battery
1 E620021
MISC Crimp pins for J5, package of 2 2 E620022
J6 Conn., 5-pin female, 0.1" spcg 1 E620051
J7 Conn., 3-pin female, 0.1" spcg 1 E620009
J8 Conn., 2-pin female, 0.1" spcg 1 E620066
K1,K2 Relay, DPDT 2 E640010
L1,L2
Toroid on T37-6 core (Yellow): #26 enamel; L1 13t;
L2 14t (See text for winding instructions)
2 E680013
L3
Inductor on FT37-43 core (Black):
6T #26 (See text for winding instructions)
1 E680003
T1
Transformer wound on FT37-43 core (Black), 8T:2T
#26 (See text for winding instructions)
1 E680003
