ELECRAFT KX1 - Appendix A - KX1 Parts List; Resistor Packs RP2, RP3, RP4, RP5; Slide Switches S1, S2; Momentary Contact Switches S3, S4, S5

A7 ELECRAFT

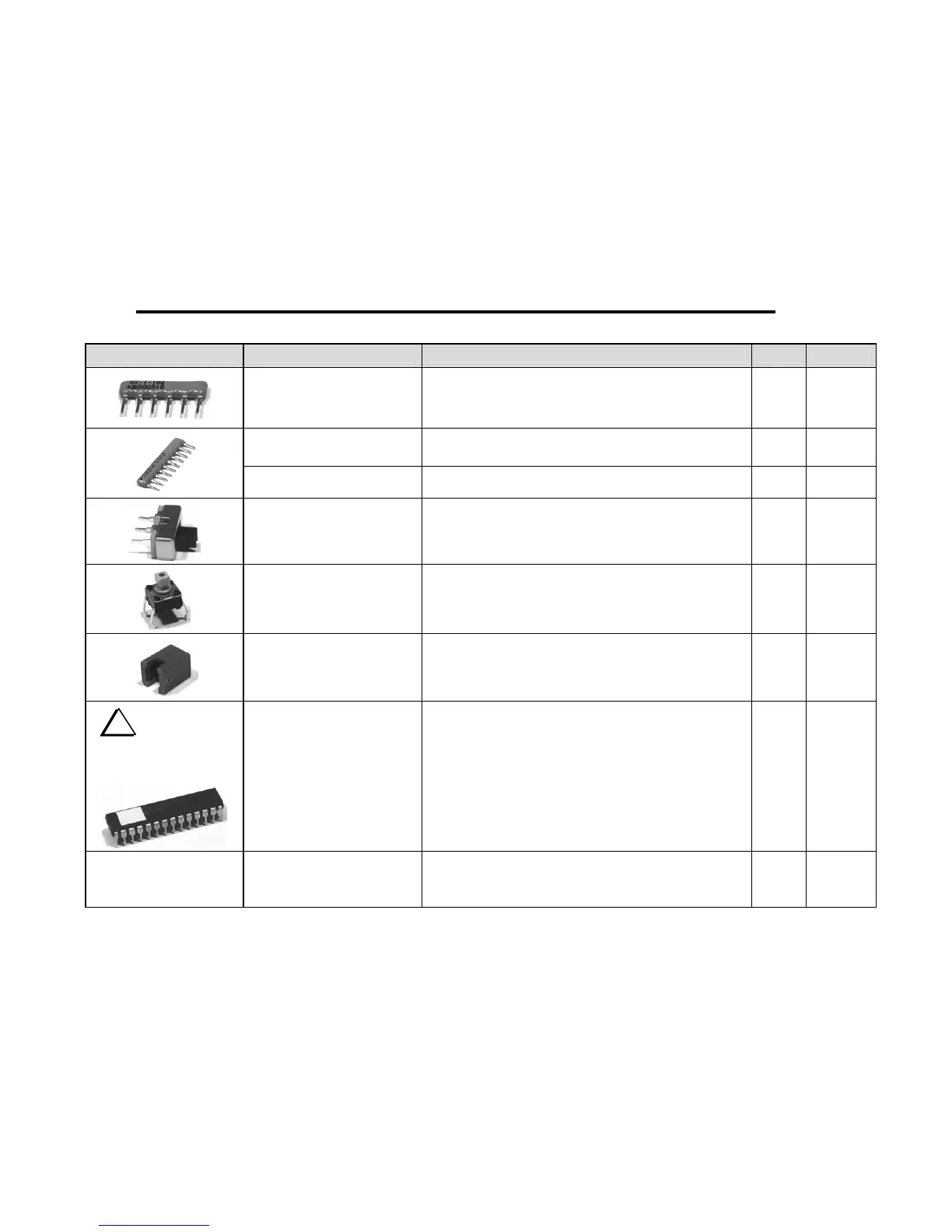

Photo Reference Designator Description Quan. Part No.
RP2 Rpack, 1K, 5R, 6 pins (102) 1 E510024
RP3,RP4 Rpack, 10K, 5R, 10 pins (103) 2 E510025
RP5 Rpack, 100K 5R, 10 pins (104) 1 E510026
S1,S2 Slide Switch, SPDT, PCB mount, 0.5A @ 50V 2 E640015
S3,S4,S5 Momentary contact. switch, 6mm 3 E640016
MISC Keycap, square, blue, 6 mm 3 E640017
i
Handle with care
– ESD Sensitive.
U1 IC, MCU, KX1, PIC16F876A (E600075) 1 E610017
Pre-installed on board
U2 IC, DDS, AD9834, SMD 1 E600076
