ELECRAFT KX1 - Appendix A - KX1 Parts List; Potentiometers R1, R3, R2, R4; Resistors; Resistor Pack RP1

ELECRAFT A6

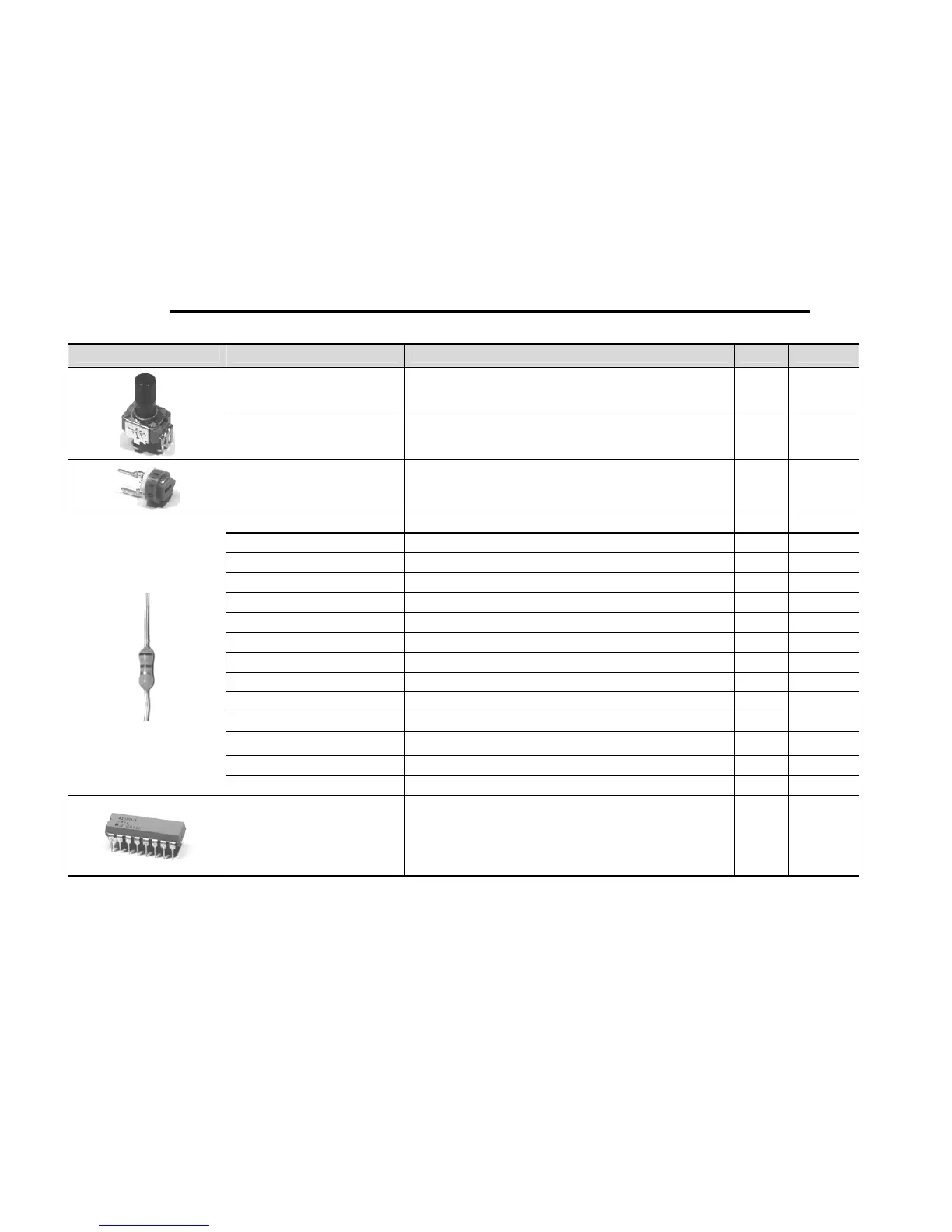

Photo Reference Designator Description Quan. Part No.
R1,R3 Pot, 1K linear, panel mount, no bushing 2 E520013
R2 Pot, 10K linear, panel mount, no bushing 1 E520014
R4 Pot, 100 ohm trimmer 1 E520008
R18 Resistor, 3.3M, 1/4 watt, 5% (org-org-grn) 1 E500021
R15 Resistor, 1M, 1/4 watt, 5% (brn-blk-grn) 1 E500024
R13,R24,R29,R32 Resistor, 22K, 1/4 watt, 5% (red-red-org) 4 E500090
R8,R12 Resistor, 6.8K, 1/4 watt, 5% (blu-gry-red) 2 E500115
R5 Resistor, 4.7K, 1/4 watt, 5% (yel-vio-red) 1 E500047
R21 Resistor, 2.7K, 1/4 watt, 5% (red-vio-red) 1 E500005
R19, R28 Resistor, 1.8K, 1/4 watt, 5% (brn-gry-red) 2 E500004
R16,R17,R20,R31 Resistor, 1K, 1/4 watt, 5% (brn-blk-red) 4 E500013
R23 Resistor, 470 ohms, 1/4 watt, 5% (yel-vio-brn) 1 E500003
R9,R22 Resistor, 300, 1/4 watt, 5% (org-blk-brn) 2 E500023
R6,R7 Resistor, 200 ohms, 1/8 watt, 5% (red-blk-brn) 2 E500114
R10,R14 Resistor, 47, 1/4 watt, 5% (yel-vio-blk) 2 E500019
R26,R27, R30 Resistor, 22, 1/4 watt, 5% (red-red-blk) 3 E500028
R11,R25 Resistor, 10 ohms, 1/4 watt, 5% (brn-blk-blk) 2 E500054
RP1 Rpack, 390 ohms, 8R, 16 pins (391) 1 E510023
