6-6
REFRIGERATION DIAGRAMS
Revision Y05-01 Service Manual - EMD Series
6.6 Additional Refrigerant Charge (R 22, R407C gr.)
10m 15m 25m 30m 50m
EMD 27 60 185 435 - -
EMD 35 60 185 435 560 -
EMD 40 75 225 525 675 1275
EMD 45 75 225 525 675 1275
EMD 50
75 225 525 675 1275
EMD 60
100 300 700 900 1700

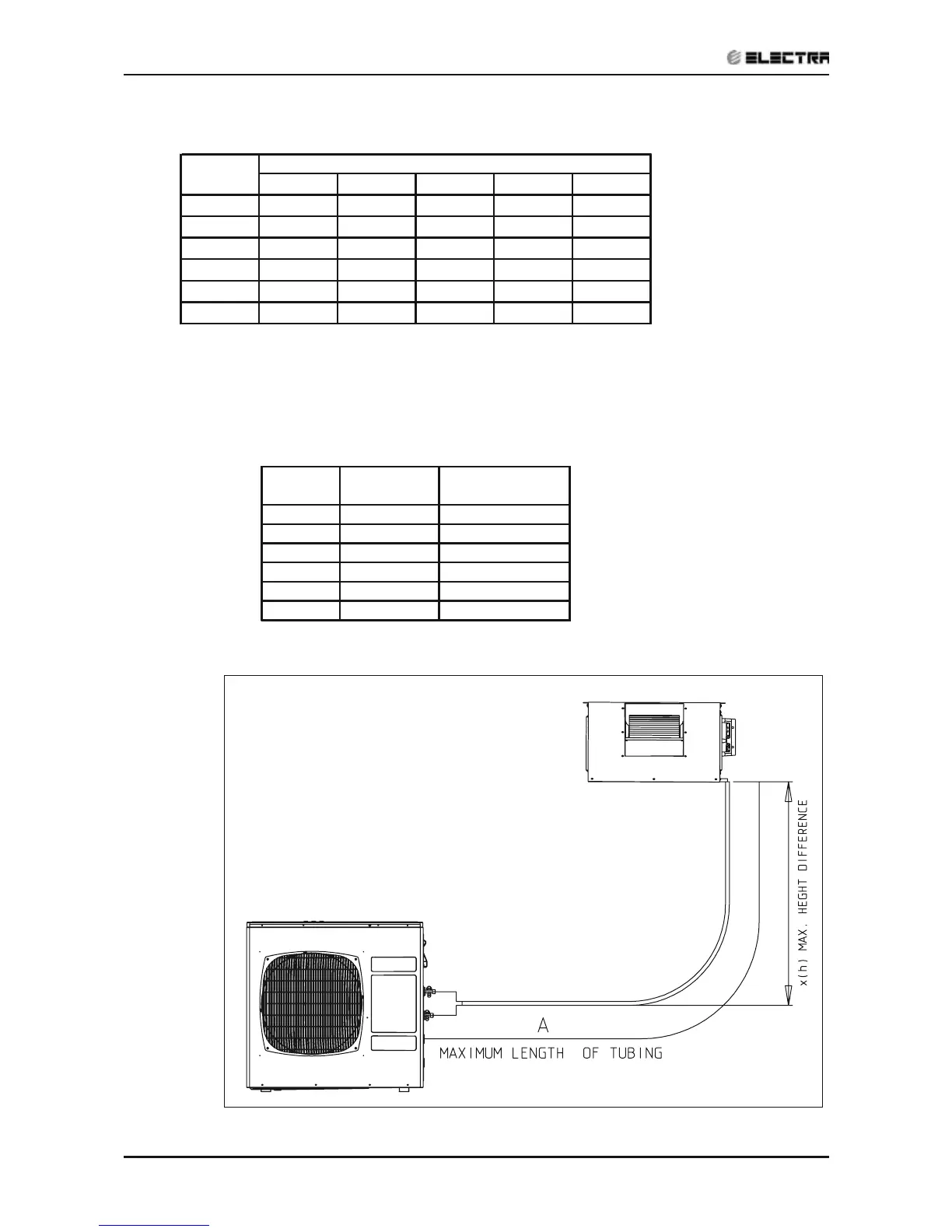

REFRIGERANT TUBING LENGTH (ONE WAY)
MODEL
MAXIMUM REFRIGARANT TUBING LENGTH
AND HEIGHT DIFFERENCE
LENGTH (m) HEIGTH
(A) DIFFERENCE (m)
EMD 27 25 10
EMD 35 30 10
EMD 40 50 25
EMD 45 50 25
EMD 50 50 25
EMD 60 50 25
MODEL
*
THE INDOOR UNIT CAN BE ABOVE OR BELOW THE OUTDOOR UNIT.
