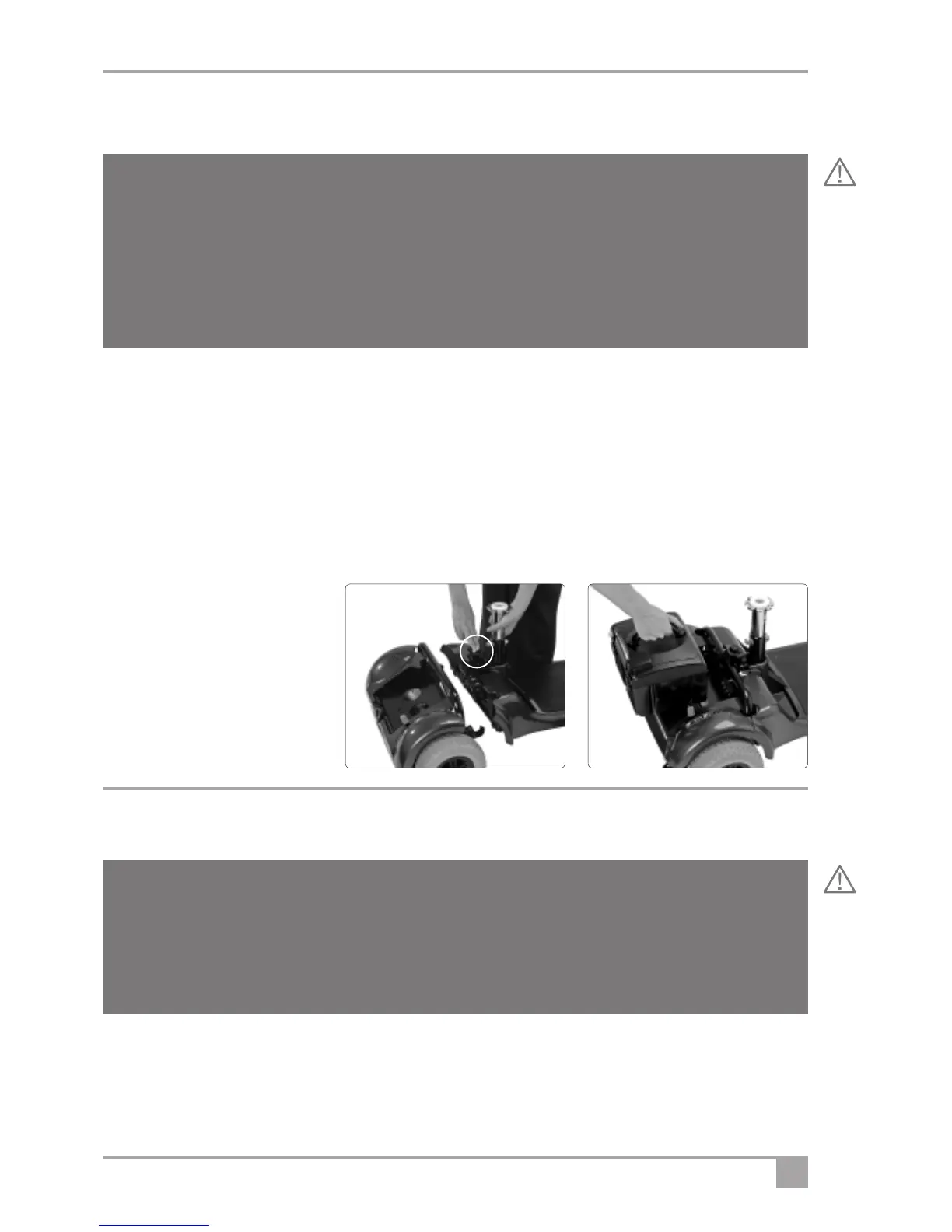

Assembling your Scooter following Transportion
After removing your scooter from a vehicle and placing it on level ground, assemble it as follows:
1.
Undo the knurled knob,
raise the tiller into the upright position and secur
e by tightening the knob.
2. Manoever the front part to join the rear chassis, carefully aligning the pins so that they are postioned
over the rear cups and press down on the front chassis until it clicks into place.
3. Check that the chassis release catch is in the locked postion and that the two halves are securely
locked together.
4. Refit the battery box ensuring it is correctly in position, and secured by the battery catch.
5. Lift the seat and, while lifting the seat swivel lever, insert the seat pin into the seat post on the rear chassis.
Ensure it is fully engaged, the seat does not rock or rotate, and the seat lever has engaged so locking the seat
in the forward position.
6. Fully depress the tiller lock
and ensure that the tiller is free
to rotate.
Finally check the scooter is not
damaged and it is properly
assembled. You are now ready
to drive the scooter away
.
Battery Charging
The charging socket is on the upper right hand side of the battery box. Rotate the protective cover and push in
the plug. The battery charger has a small indicating lamp. When the charger is connected and switched on the
lamp will show red. When the battery is charged the lamp will change to green. Always ensure that the lamp
shows green before switching off and disconnecting the charger at the mains. When the vehicle is charged
remove the plug, and refit the protective cover to keep the water out.
Warning! Assembling the scooter involves lifting and handling heavy parts. The Eco Scooter has been
designed to be easily assembled. Y
our dealer should advise you on the best way to assemble your scooter.
Warning! Pinching or Crushing. Be careful to avoid being pinched or having your hands crushed when
lifting or handling parts. Wear gloves whenever possible.
Warning! Never unload your scooter on sloping or uneven ground. It could run down the slope and
injure someone.
Warning! When charging batteries NEVER smoke, or do this in a place where there are naked flames
such as gas-fired heaters as, under exceptional circumstances, batteries may give off gases that could
ignite and explode. Always make sur
e that battery box is not damaged.
Warning! When charging batteries NEVER connect or disconnect the charger while it is still connected
to the mains.
