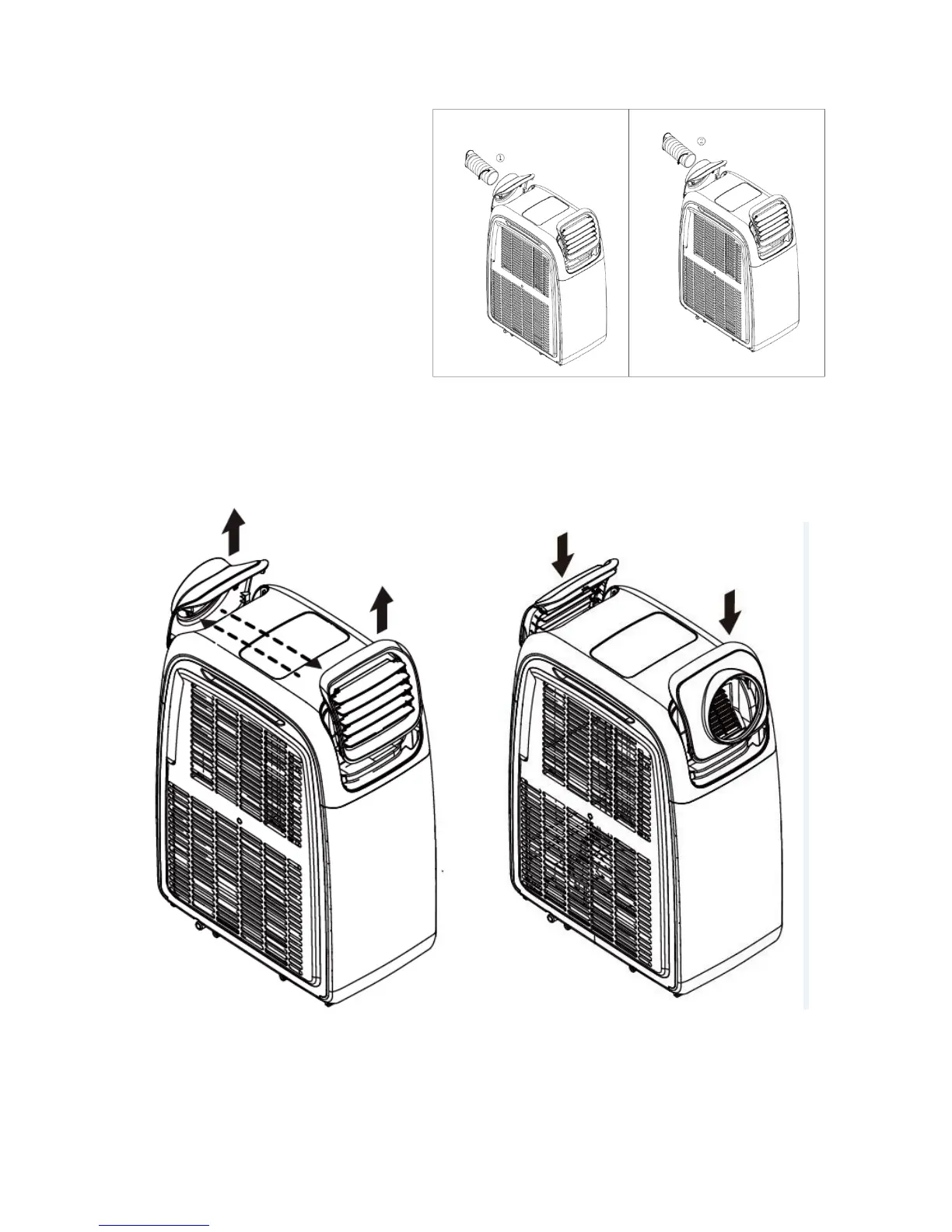

ATTACHING THE HOSE
1. Clip the hose connector and front
vent to the sides of the unit (after
removing the hose from storage)
2. Insert the hose and rotate it firmly
into the adapter
3. To remove the hose twist it in the
opposite direction.
Note: To install the hose for heat mode please remove the hose, the hose connector and
front vent from the unit and re fit on the opposite sides. The process should be reversed to
put the unit back in to cooling mode.
