INSTALLATION

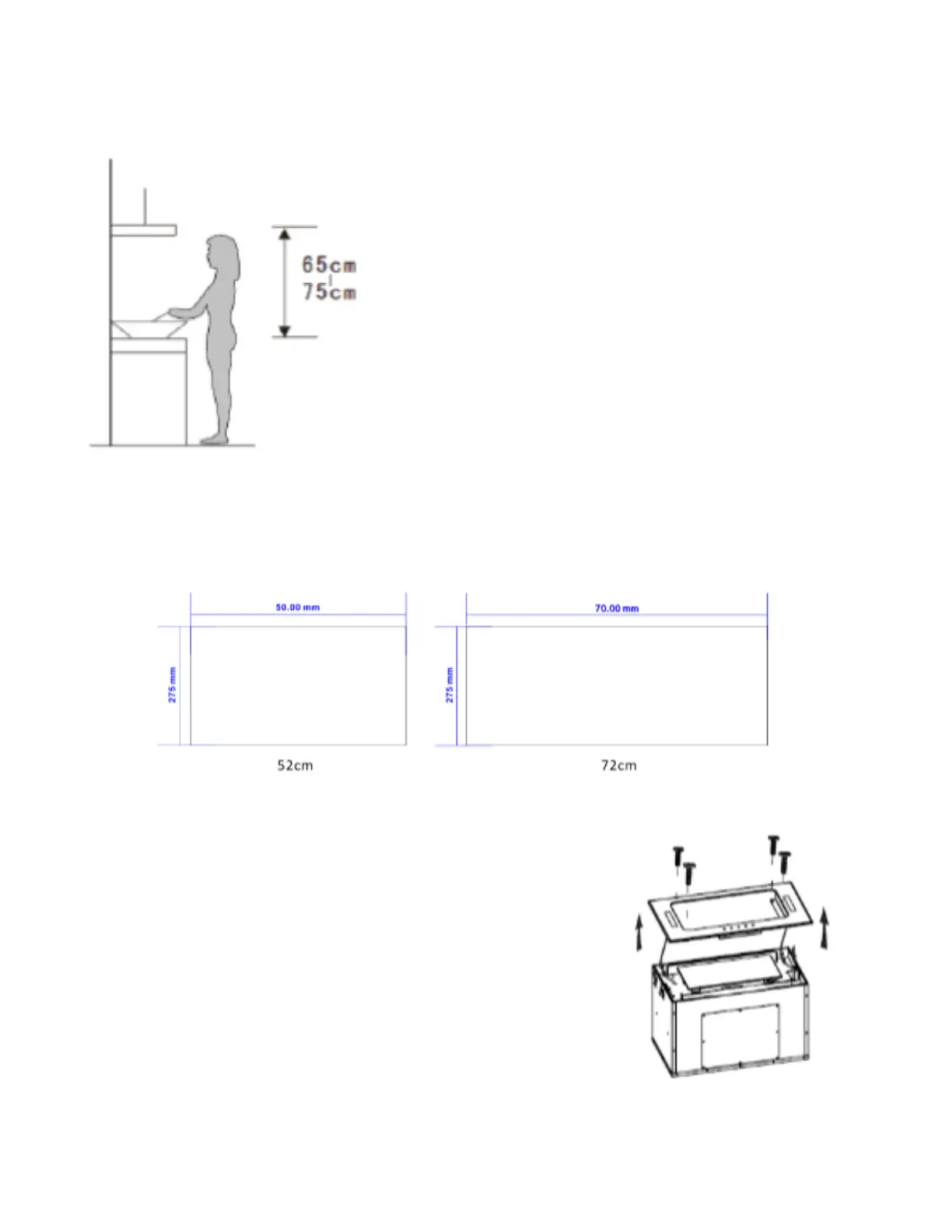

1. The cooker hood should be placed at a
distance of 65-75cm (26-30inch) from the cooking
surface.
2. Drill a hole of 500*275(mm) for 52CM and 700*275(mm) for model 72CM in
the cabinet.
3. Unscrew the 4 screws on the outer glass frame
panel, pull out the light wire, take down the outer
glass frame panel.
